Fuse & Circuit Breaker Blocks

Robust & Proven Circuit Protection

​

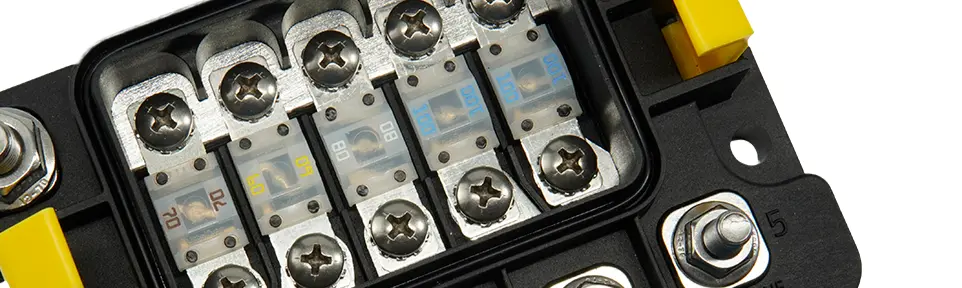

MIDI 5X Sealed Fuse Block

Designed for harsh environments.  Stainless Steel Hardware, Reduce Installation Space when combined with other Egis Mobile Electric power management devices (XD Relays & MT Series Sealed Circuit Breaker/Fuse Blocks.) Sealed to IP66/IP6K9K, high temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.


3906B Sealed Fuse Block (M6 Output)

3908B Sealed Fuse Block (M8 Output)

MT Series 12 Position Sealed Fuse & Circuit Breaker Block



Designed for harsh environments.  The MT Series Sealed connectorized marine fuse and circuit breaker block is an industry first. With standard integrated Deutsch™ / Amphenol™ power connectors, this innovative solution creates highly reliable marine electrical systems that significantly reduce assembly failures associated with traditional screw terminations during and after boat production.   ​

 Learn more



         Mini / ATM Fuse Blocks



      Connector Terminal (CT) Series Hybrid ATO / Low Profile Jcase Fuse Block

      Eight ATO fused outputs with MX-150 plug/play connectors plus two LP JCase fused outputs with screw terminals. Designed for harsh environments.

      CT Series Fuse Block

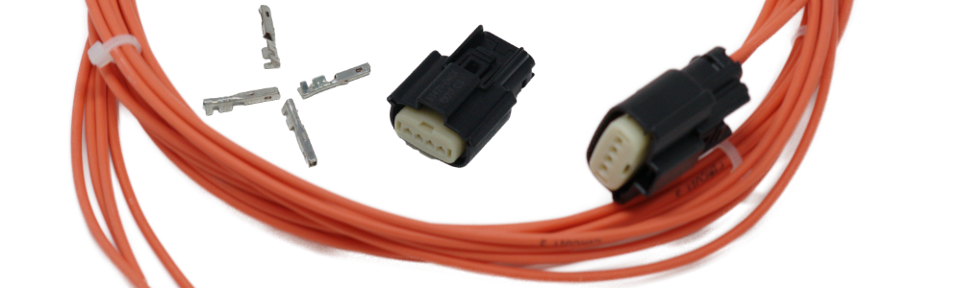

      CT Fuse Block Harness Options

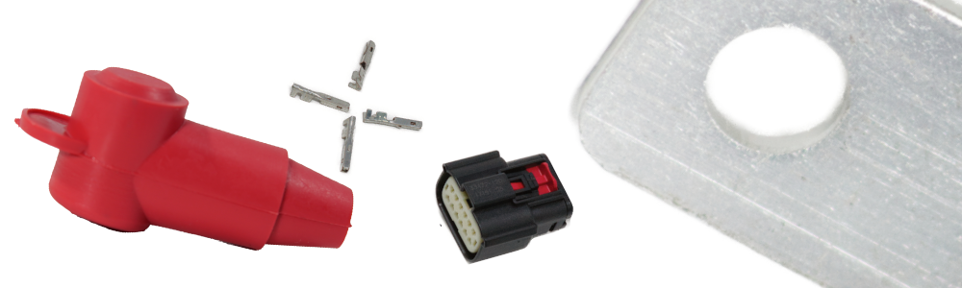

      Connector/Terminal Kit, 4 Position

      1 ft Extension Wires

      10 ft Harness, Circuits 1-4

      10 ft Harness, Circuits 5-8

      20 ft Harness, Circuits 1-4

      20 ft Harness, Circuits 5-8

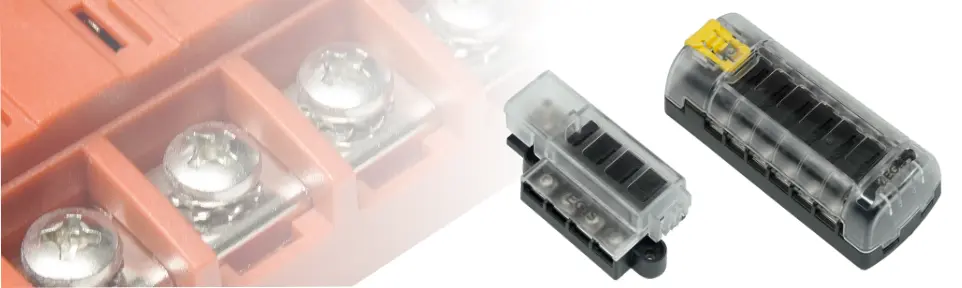

      RT Series Ring Terminal Modular Fuse Blocks w/Blown Fuse LED Indicators

      Designed for harsh environments. Builders can stock two core parts and build up to six configurations. ATO/ATC/ATF Fuse Compatible.

      Core Parts / Building Blocks:

      6 Position Fuse Block

      12 Position Ground Block

      Complete Family Of Pre-Assembled Fuse Block Solutions:

      6 Position

      6 Position w/Ground Return

      12 Position

       12 Position w/Ground Return

      18 Position

      18 Position w/Ground Return

      Battery Terminal Fuse Blocks

      4 Position Inline Battery Terminal Fuse Block

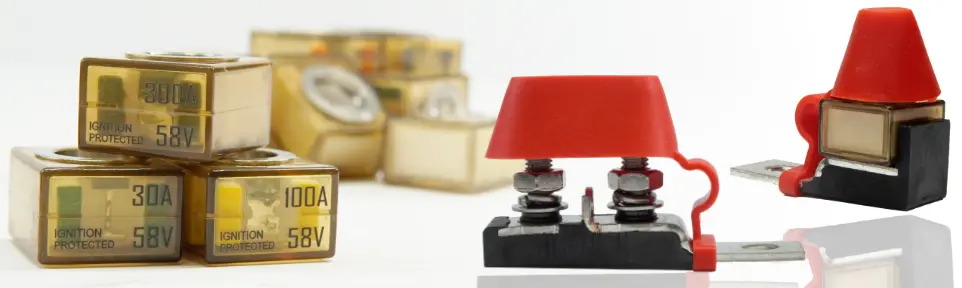

      Single Fuse MRBF Terminal Block

      Dual Fuse MRBF Terminal Block

      We are COMMITTED to developing & delivering the most compelling and robust solutions for harsh environment mobile electrical and electronic systems. We appreciate your feedback and any suggestions you may have for improvements or new application solutions.
