Class T Fuse Block, 225 - 400 A, Sealed, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, that would otherwise land on the fuse tab itself.

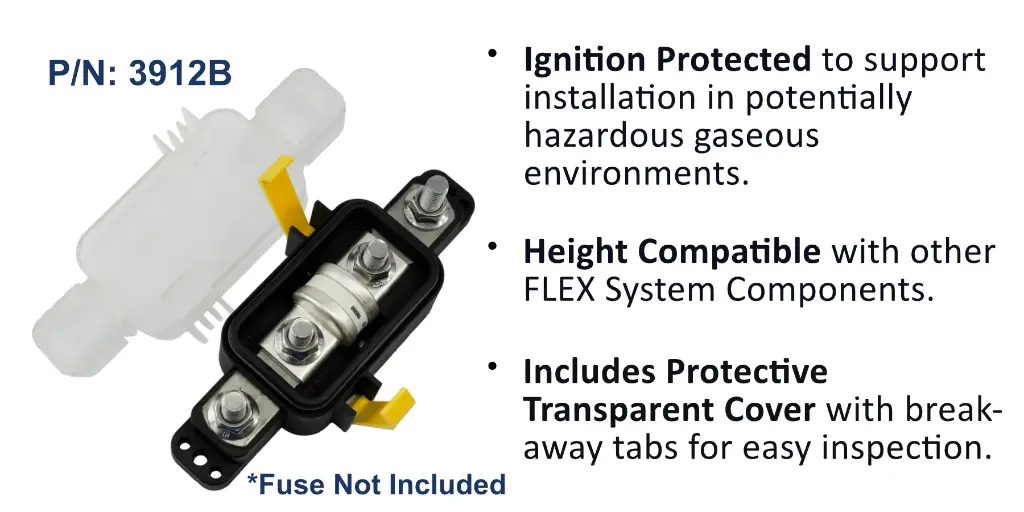

Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Information Sheet
Feature Summary
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
4 Year Warranty: We stand behind our product's ability to meet your needs.
Maximum Amperage
225-400A
MAX VOLTAGE
80 Vdc
Ingress Protection ratings
IP66, IP67, IP6K9K
Mounting holes
4x #10 (M5) & 2x 1/4" (M6)
Mounting screw max torque
50 in-lbs (5.5 N-m)
Busbar material
Tin-Plated Copper
Focal Features
Ease Of Installation
Secure mounting with precise 4x #10 (M5) m & 2x 1/4" (M6) mounting holes.
High Temperature Materials
Offers marine grade performance and long term connection reliability.
Protective Cover

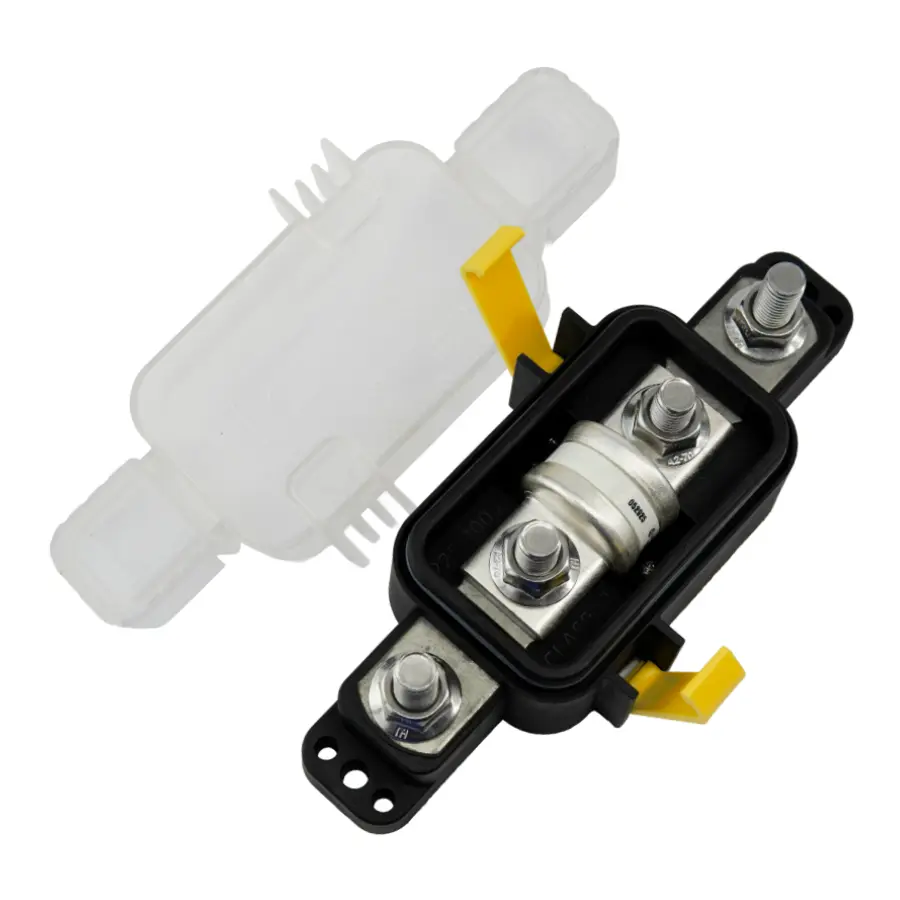

Includes transparent cover with break-away tabs for cable & terminal access.
Robust Performance
Tin Plated Copper Busbars ensure superior electrical performance with minimal voltage drop.
FLEX System Compatible
Easy busbar connection with other Flex System Components via height compatible interconnected busbars.
