Description
Applications / Problems This Solves
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Feature Summary
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
30-300A
Stud Size
M8 (5/16")
Mounting Hole Size
M10 (3/8")
INTERRUPT Rating @ 48 VDC (AMPS)
5,000
INTERRUPT Rating @ 58 VDC (AMPS)
2,000
INgress Protection
IP66
Focal Features

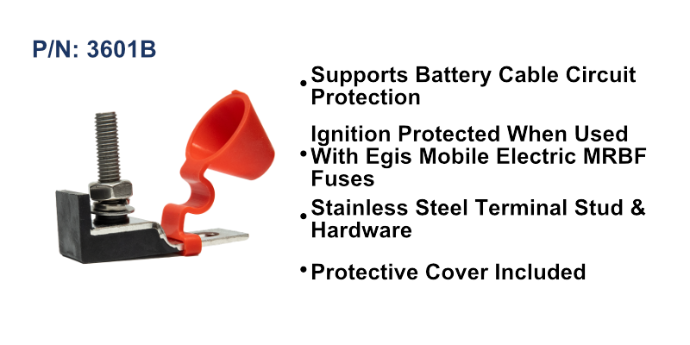

Protective Stud Cover
Prevents Accidental Shorts To Ground
Tin Plated Copper Input
Highly Conductive And Corrosion Resistant For Reliable Connection
Wide Amperage Ranges
Available 30 Amp - 300 Amp
Stainless Steel Stud & Hardware
Corrosion Resistant Construction, Made With Robust Materials
