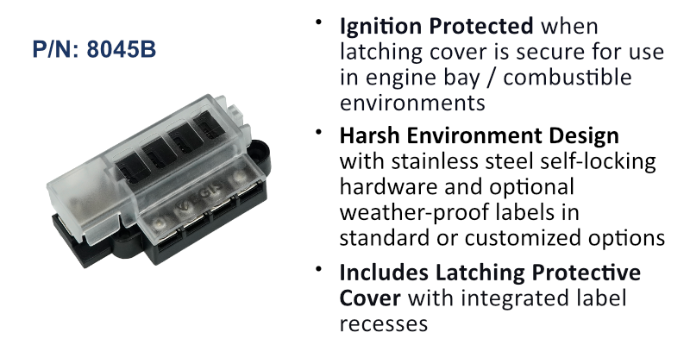

RT Fuse Block 4 Circuits w/Cover, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Compact inline 4 position fuse block has single side wire entry for tight installation spaces.
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Feature Summary
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
CONTINUOUS
CURRENT Per Circuit (AMPS)
30
Maximum Current (Entire Block) Amps
100
Nominal Voltage
12/24Vdc
MAX VOLTAGE
(VDC)
60
Hardware MAterial
Stainless Steel
Input Terminal Size
M5-0.8
Focal Features
Stainless Steel Hardware
Self locking stainless steel attachment screws provides vibration resistant secure connections.
Stainless Steel Terminal Stud/Nut
Ensures reliable and corrosion resistant connection to main input current.
Protective Cover
Protects cable terminal edges from inadvertent shorts to each other or ground.
Labels Included
Circuit identification labels included for easy circuit/fuse diagnosis.
