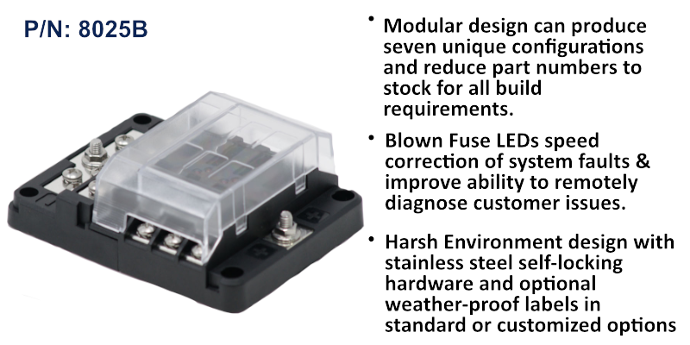

RT Fuse Block 6 Circuit w/Ground, Bulk Pack

    34.70 34.7 USD 34.70

    34.70

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Modular design can produce seven (7) unique configurations from 8028 & 8030 and reduce part numbers to stock for all build requirements.

    Blown Fuse LEDs speed correction of system faults & improve ability to remotely diagnose customer issues.

    Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options

    Feature Summary

    Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.

    Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.

    Supports SAE Circuit Protection Standards for thermal/short circuit events.

    Focal Features

    Spare Fuse Locations

    Two locations per 6 circuits for spare or test resistors for reducing siren volumes during evaluation.

    Stainless Steel Self-Locking Hardware

     100 % Non Ferrous corrosion resistant materials. All attachment screws and nuts are self locking.

    LED Fuse Diagnostics

    Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.

    Cover/ Label Recesses

    Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

    Ground Block Included

    Includes 12 position ground return block with multi level low amp terminal screws for improved mounting.

    Ground Block Separates

    Ground block section optionally separates from fuse block section affording increased deployment options for challenging installations.

    Application Example - 12 Position RT Fuse Block, RT Ground Block, and TDR Relay

    A well installed power distribution and clean ground return solution. Fused vehicle power is connected to the TDR Time Delay Relay (upper right), then distributed to the 12 Position RT Fuse Block (left). The RT Ground Block (lower right) was separate from the Fuse Block where it was originally tied together, and re-located to a more convenient locations for effective wire harness routing. Also shown, optional cover labels from emergency vehicle label sheet set.
