TOTAL CONTINUOUS
CURRENT (AMPS)
500

MAX CRANKING
CURRENT (AMPS)
1500

MECHANICAL SWITCHING LIFE
1,000,000 Cycles

VOLTAGE RANGE
(V DC)
8 - 36

OFF-STATE CURRENT DRAW (mA)
1.3

STATE CHANGE CURRENT
5A @ 12 Vdc
3A @ 24 Vdc

XD Relay Industry Leading Features

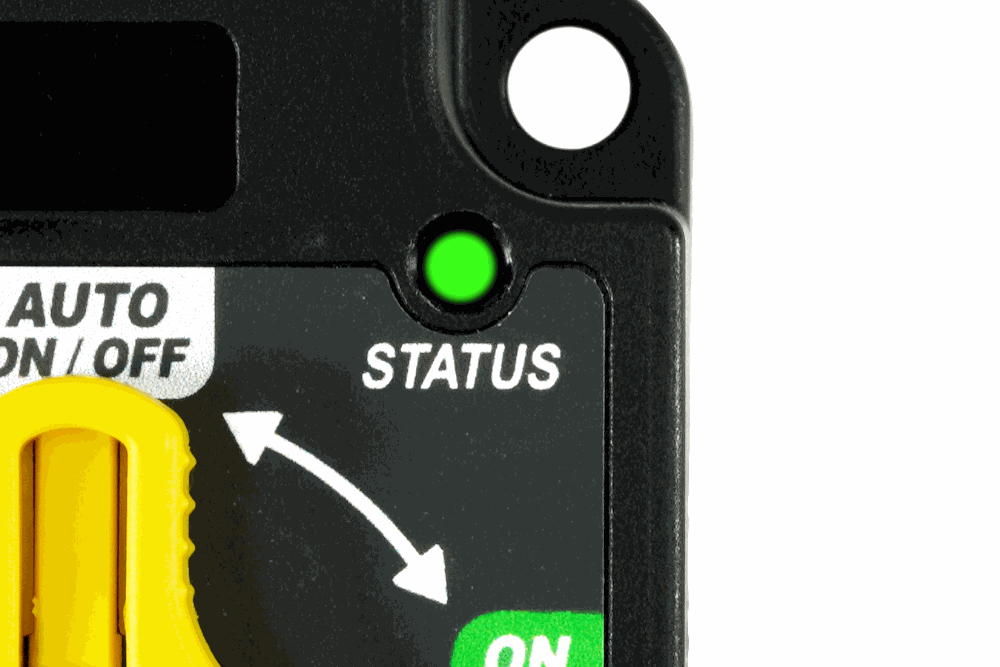

LED STATUS DISPLAY

 Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED

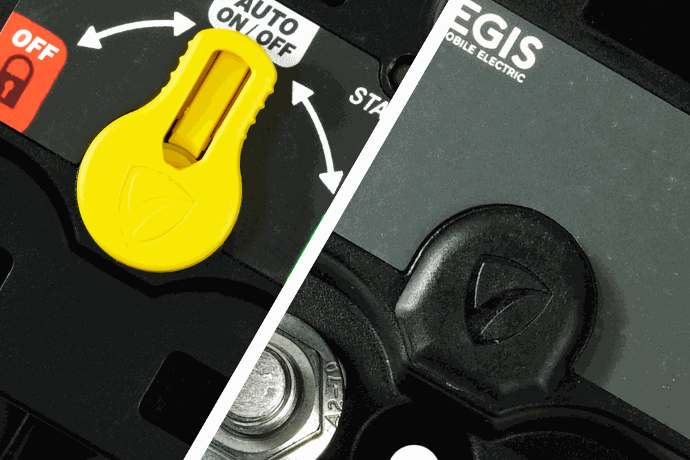

3-POSITION MANUAL OVERRIDE

 Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

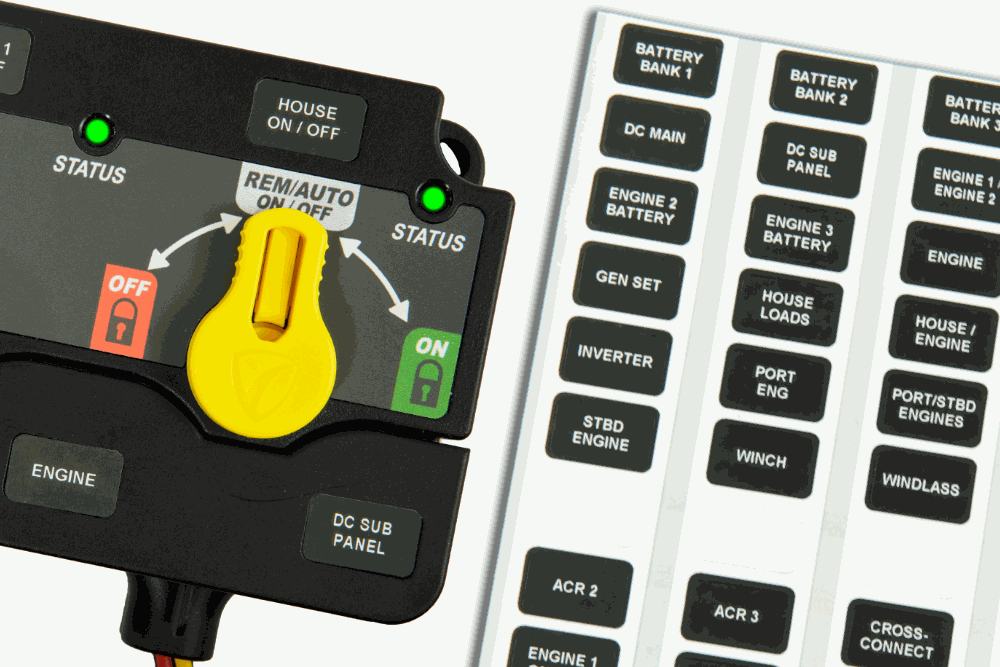

40 CIRCUIT LABEL SHEET INCLUDED

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

PROTECTIVE COVER INCLUDED

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

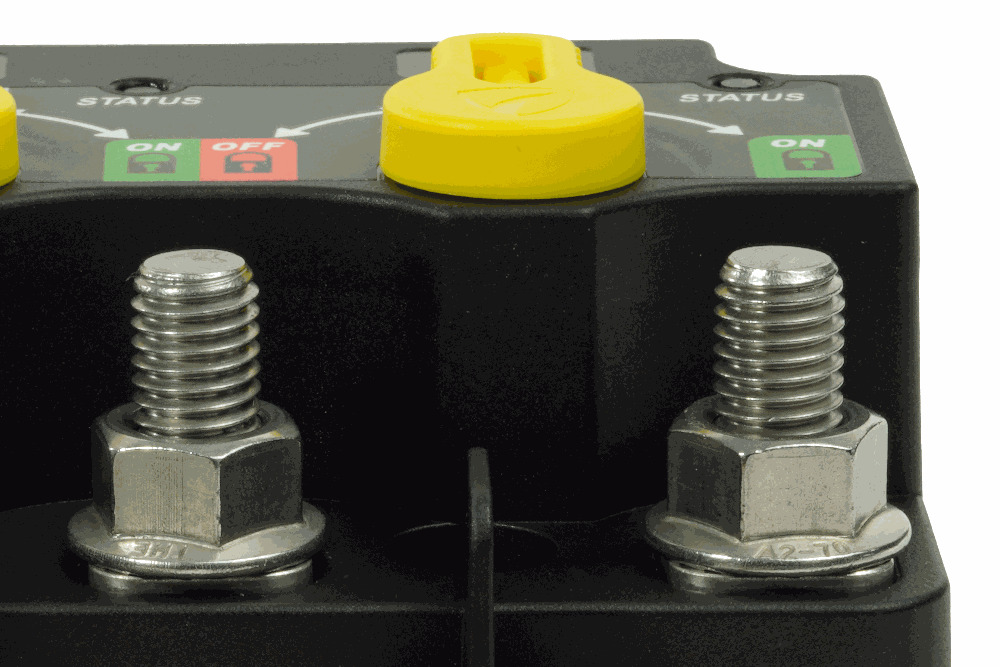

STAINLESS HARDWARE

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

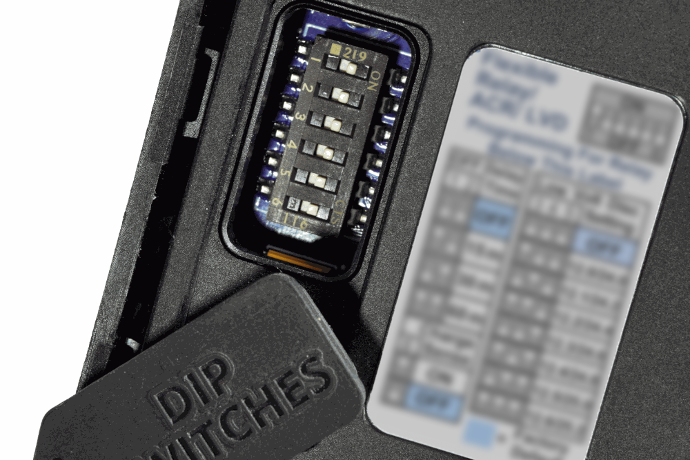

PROGRAMMABLE

Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.

SMALLER FOOTPRINT

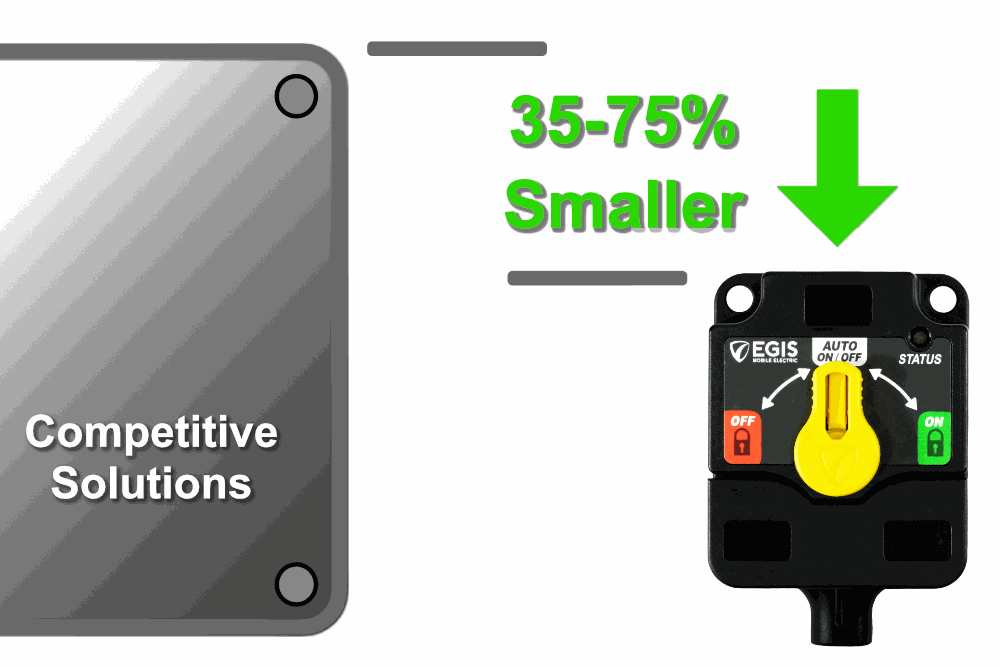

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

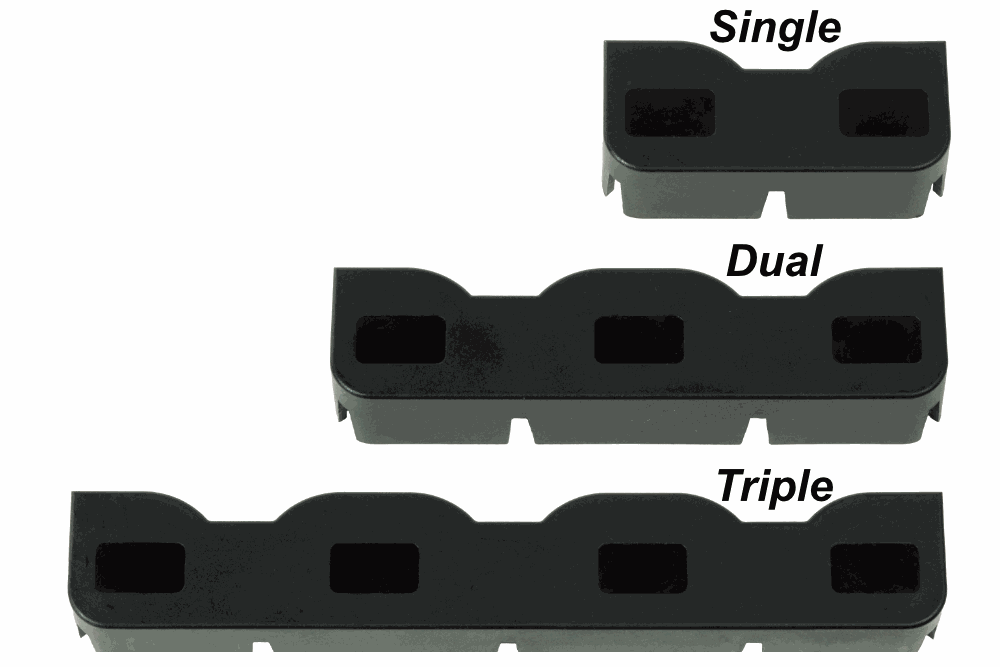

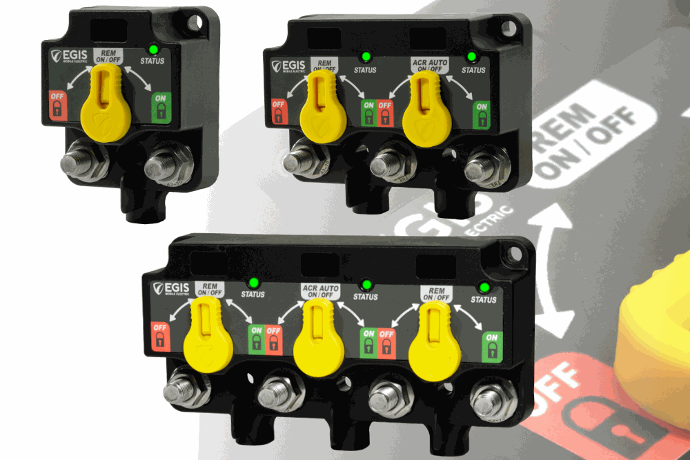

SINGLE/DUAL/TRIPLE

Available in single/dual/triple circuit configurations with a wide variety of options: manual override, relay functions, ACR, or remote battery disconnect.

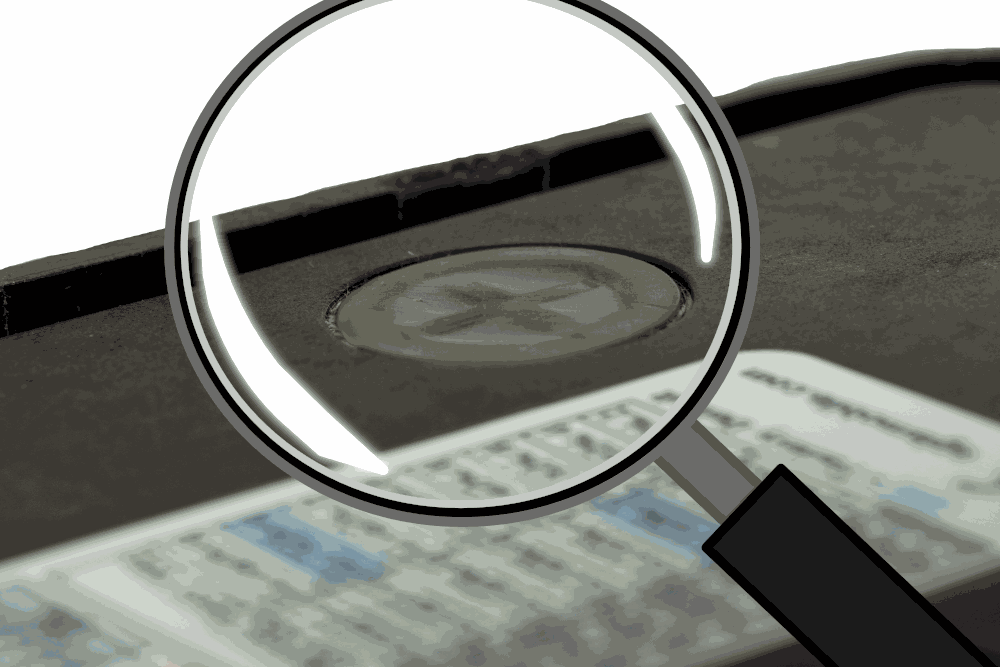

INTEGRATED VENT

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

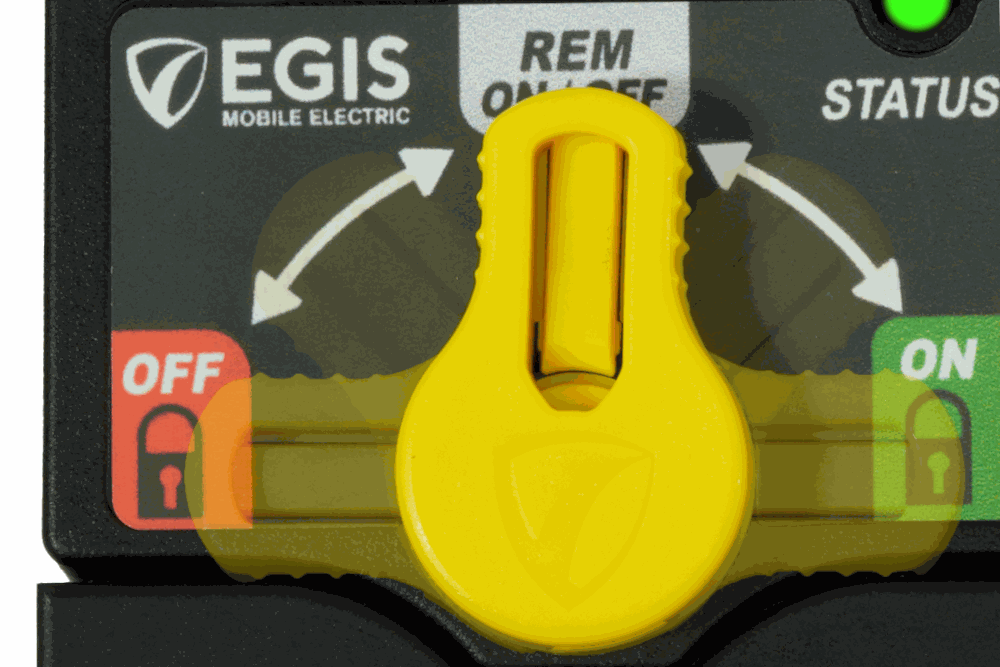

MANUAL OVERRIDE

Intuitive to use front facing yellow manual override knob makes manual control easy but if it's not needed, ask about our lever-free models!

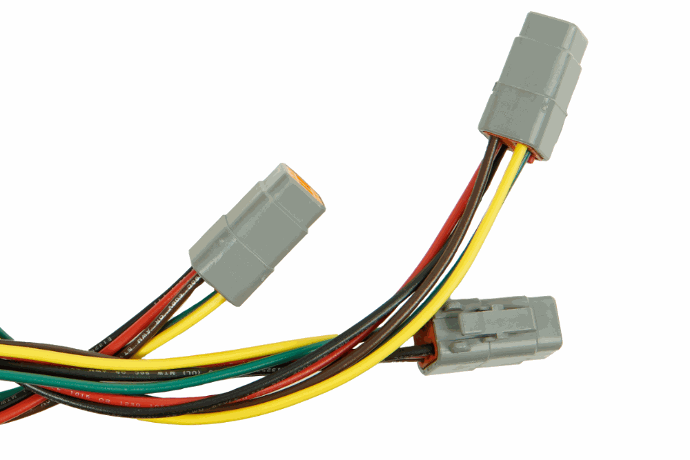

WIRE/CONNECTOR

Flexible install wiring options with either tinned wires or optional Deutsch DTM compatible plug that provides optimal sealed protection.

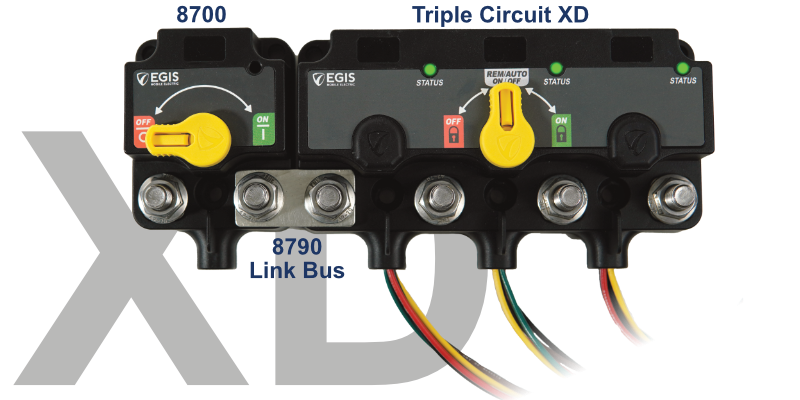

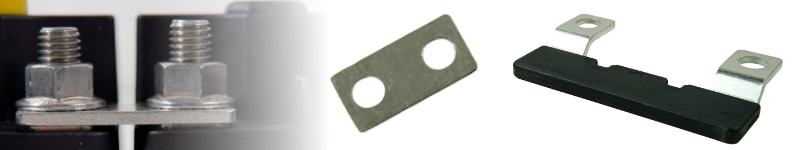

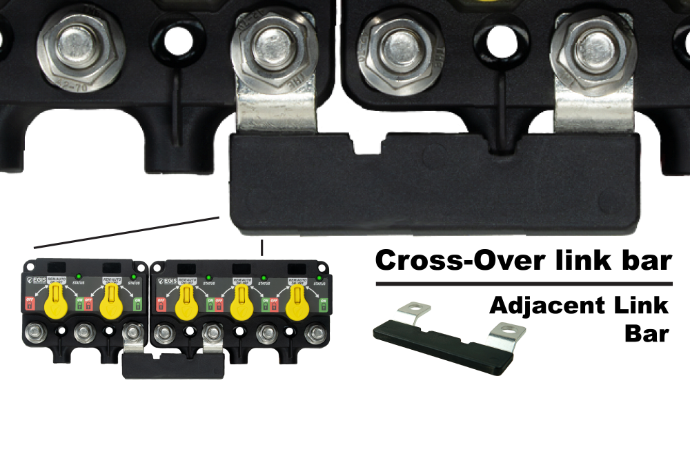

LINK BARS

Save install space by linking XD Relays together for even more capability with our optional 8790 and 8791 Links Bars.
