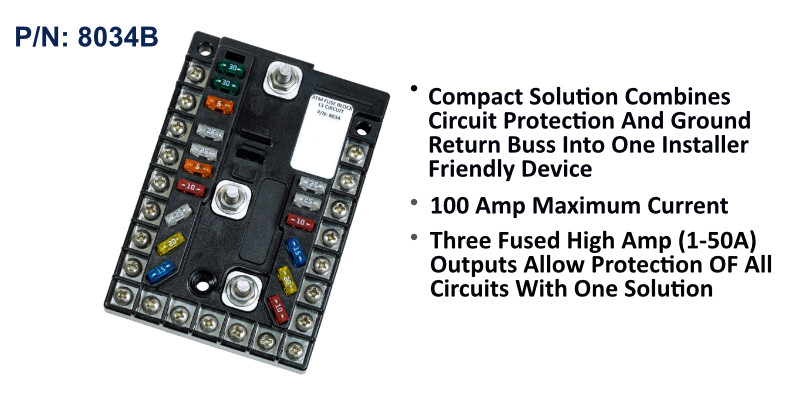

Fuse Block, 13 Circuit + Ground, 200 A PDM - 14

    83.90 83.9 USD 83.90


    This combination does not exist.

     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com


    Applications / Problems This Solves

    Three (3) High-Amp (1-50A) Outputs Allow Protection of All Circuits with One Solution

    Compact Solution Combines Circuit Protection & Ground Return Buss.

    Reduce Install Space
    and Total Installed Cost with Integrated Ground Return and Combination of high and low amp output circuits

    Expandable Up to 26 Fused Outputs with Second 8034 Fuse Block and Link Busbar

    Accessory Products

     901262 LINK BUSBAR

    Feature Summary

    Protects Branch Circuits By Accepting ATM-Mini Series Style Fuses.

    Bulletproof Construction
     Designed With High Temperature Materials and Stainless Steel Self-locking Hardware Allow Mounting Anywhere on Vehicle.

    Supports SAE Circuit Protection Standards
    for thermal/short circuit events.

    4 Year Industry Leading Warranty

    Focal Features

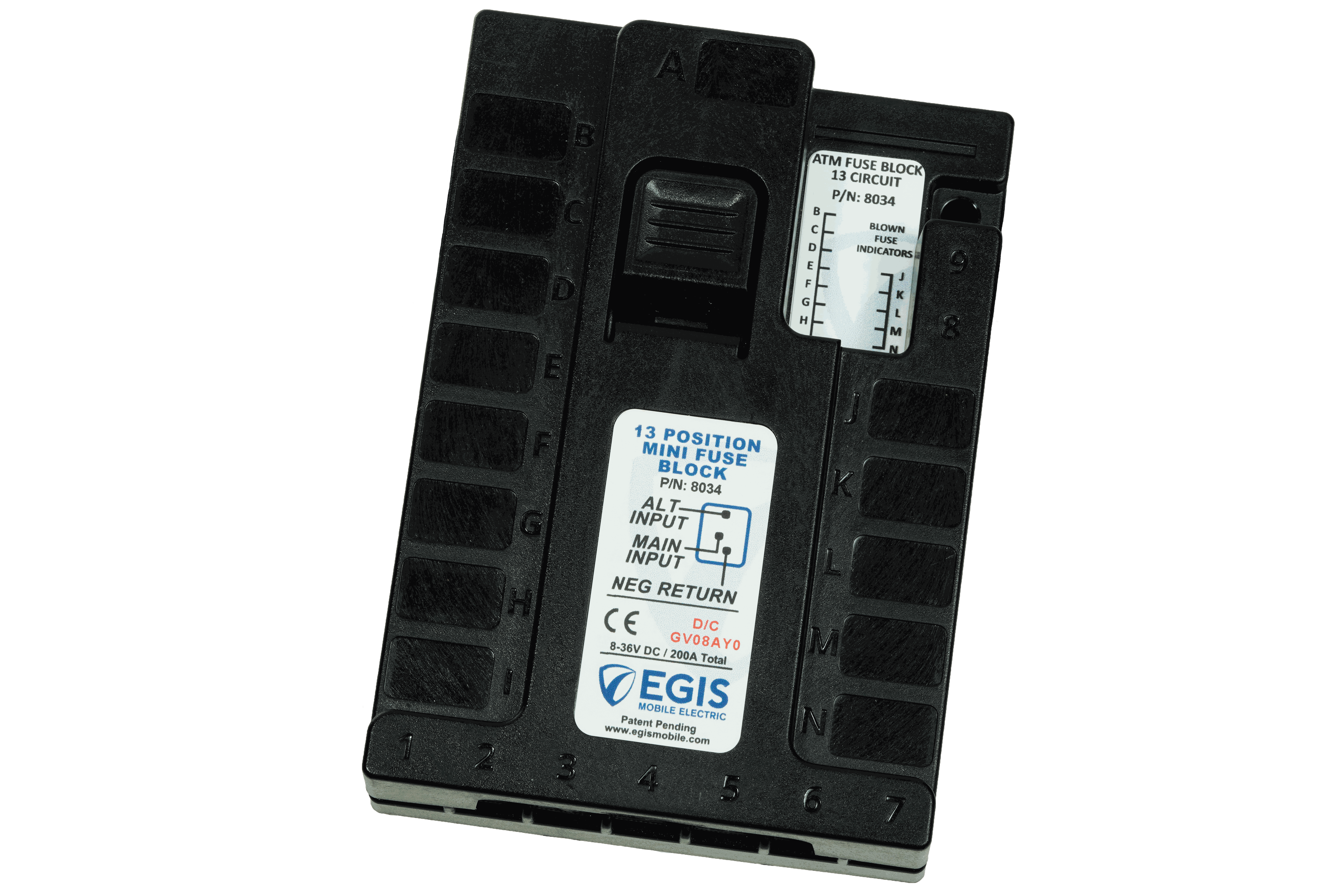

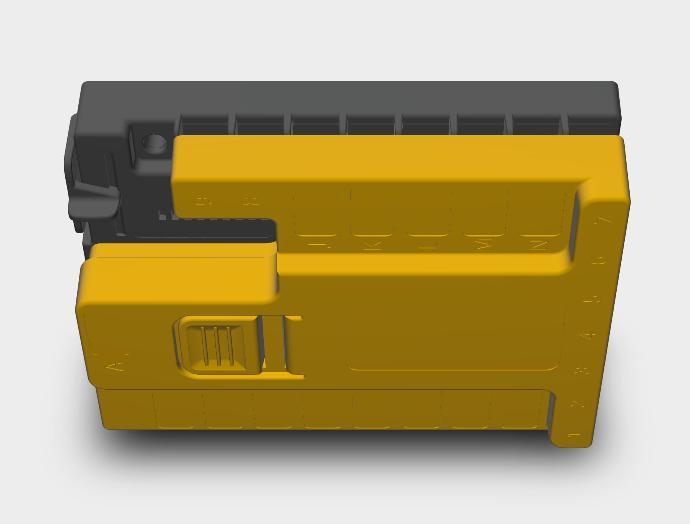

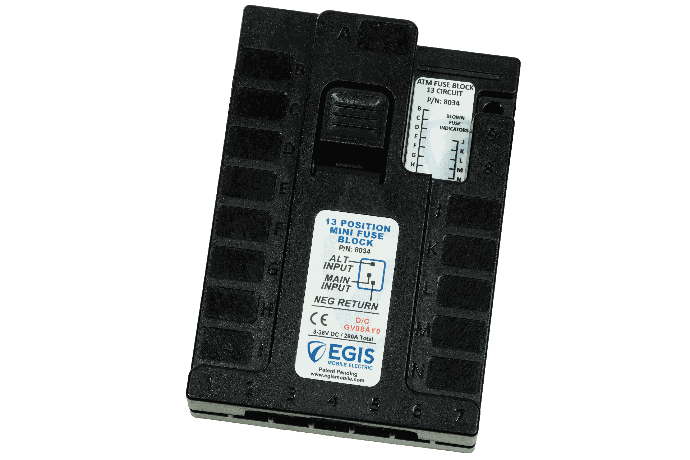

    Protective Terminal Cover

    Ensures input and output power terminals and screws do not short circuit to each other or to ground.

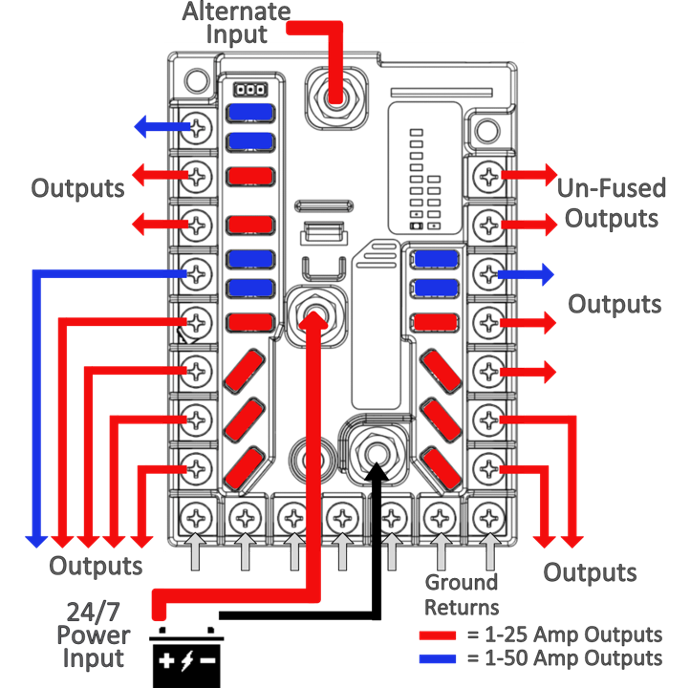

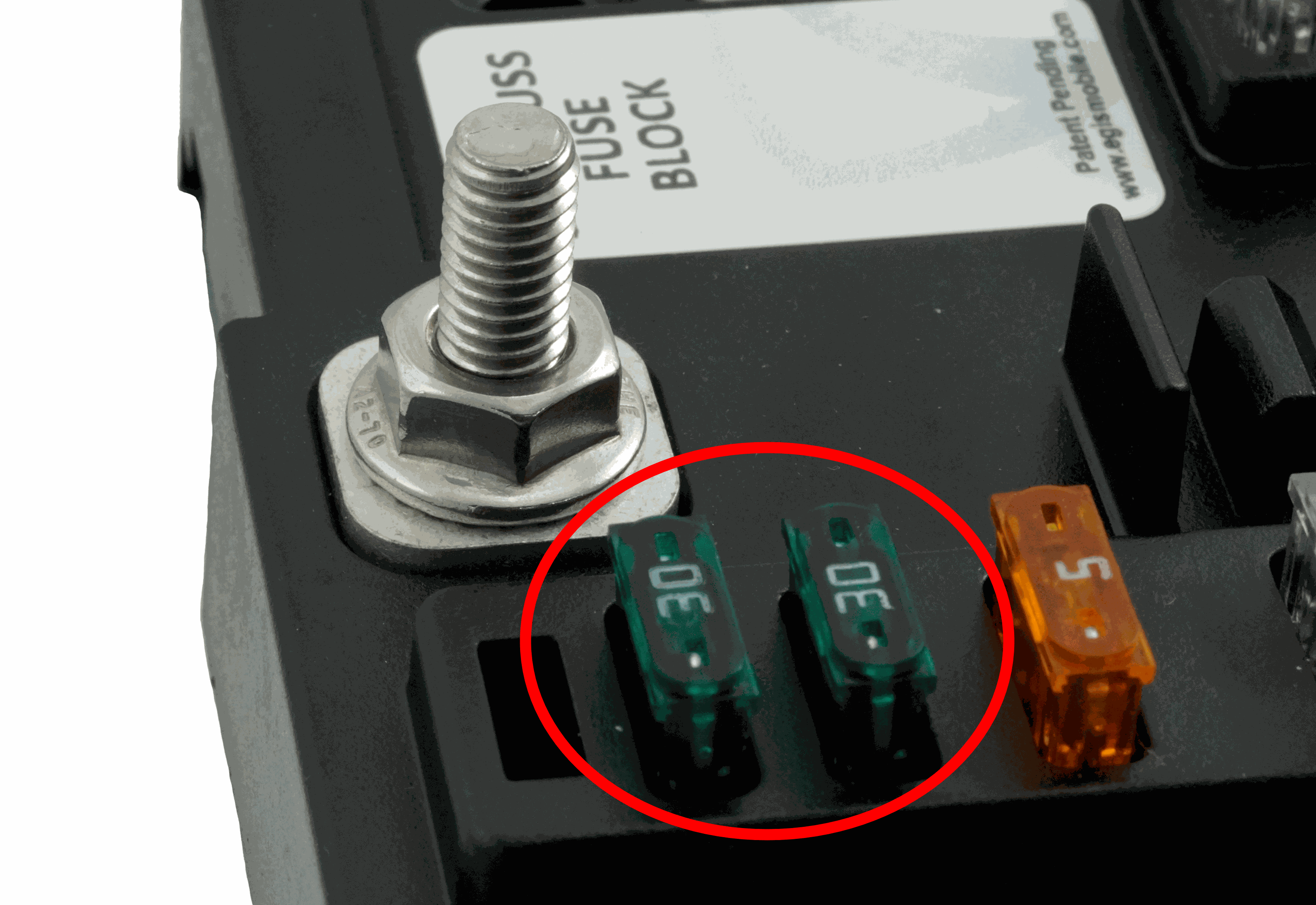

    Three (3) Flexible High Amp Fused Outputs

    Protects a wider range of loads by offering two paralleled mini fuses, one or both positions may be used.

    Robust Input & Output Terminals

    M6 stainless steel terminals and self-locking nuts with tin plated copper pads.

    Integrated Ground Return Block

    Receives up to 14 ground return wires and provides one high amp return to the battery.

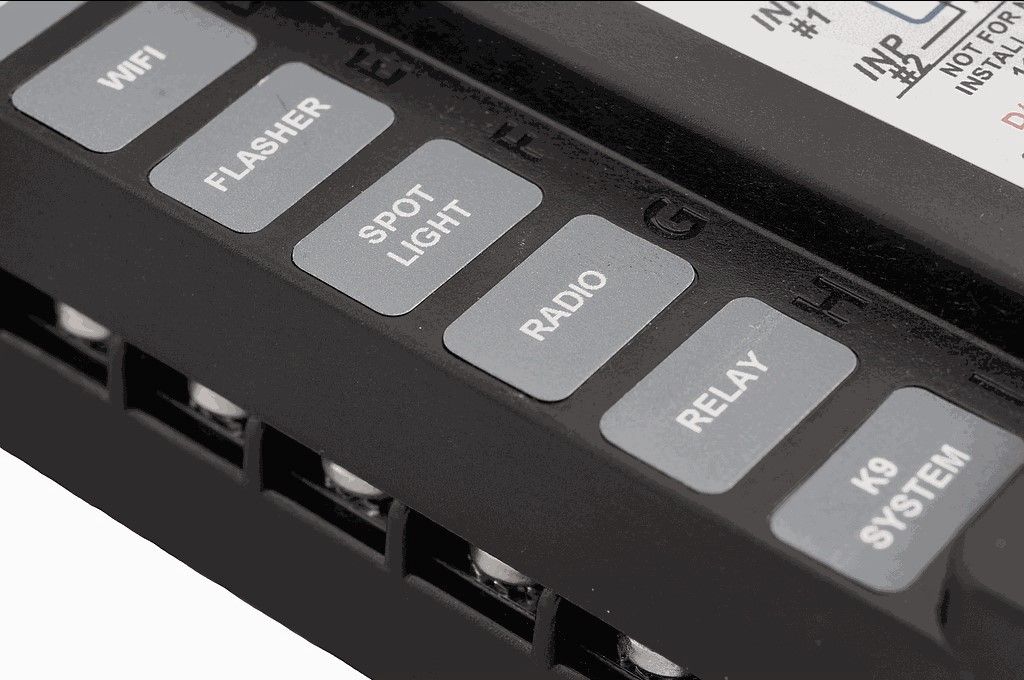

    Integrated Label Recesses

    Convenient recesses for optional weatherproof label set makes circuit identification easy.

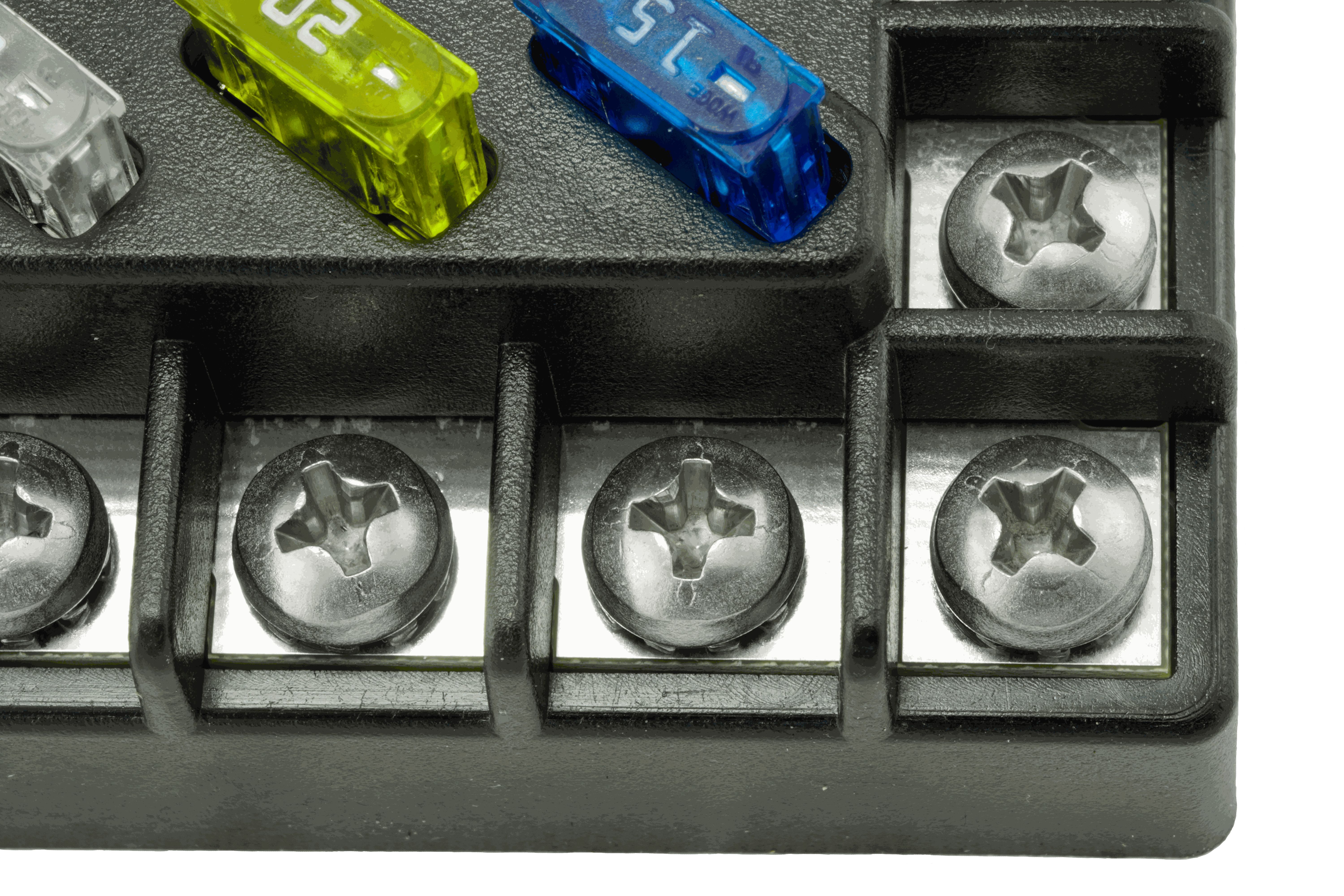

    Stainless Terminal Screws

    Easy to use #8 Phillips sized terminal screws keeps wire landing quick. Integrated terminal dividers ensure that wires will not contact-short with each other.

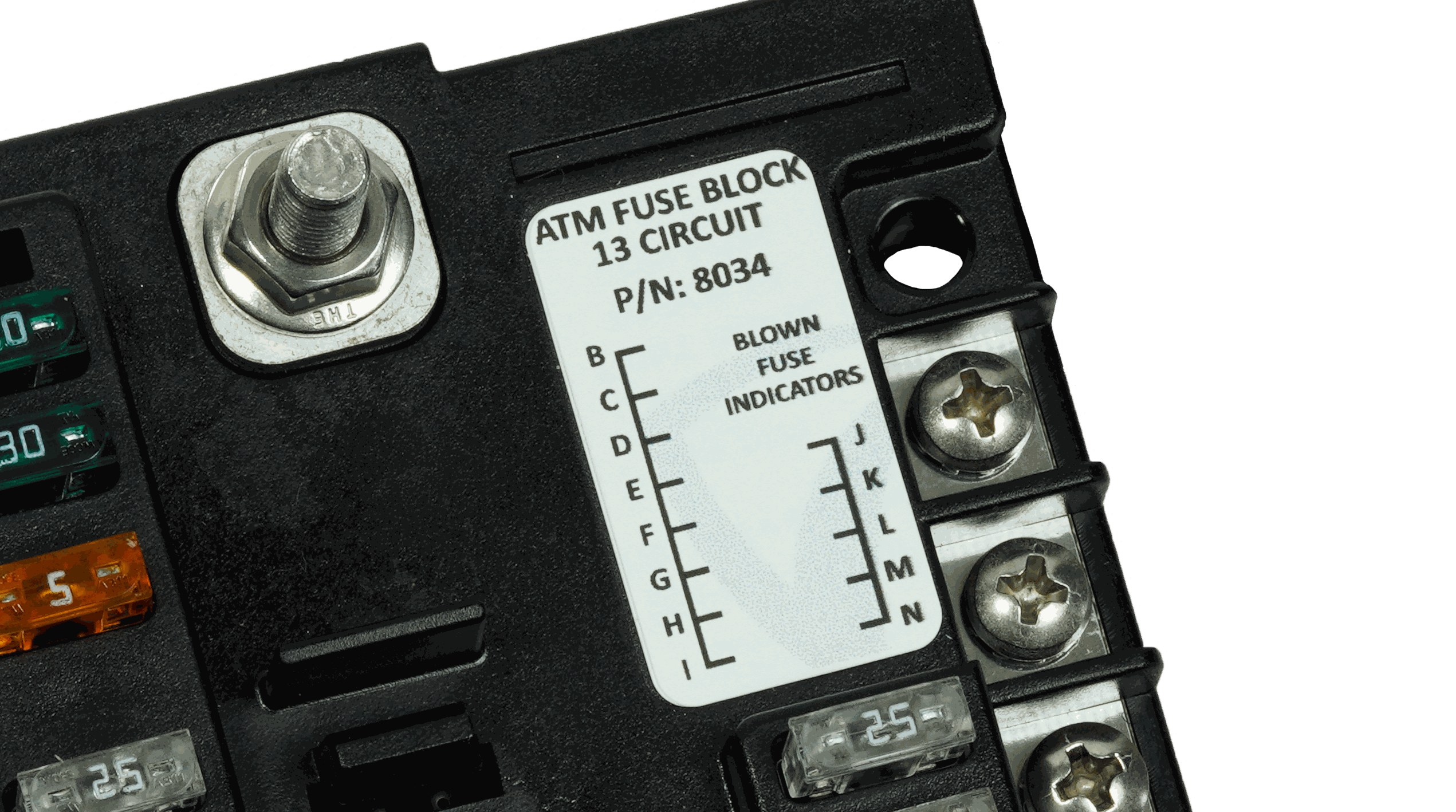

    Blown Fuse LED Indicator

    (Coming Soon)

    Troubleshoot blown fuses and open circuits quickly using integrated LED indicators.

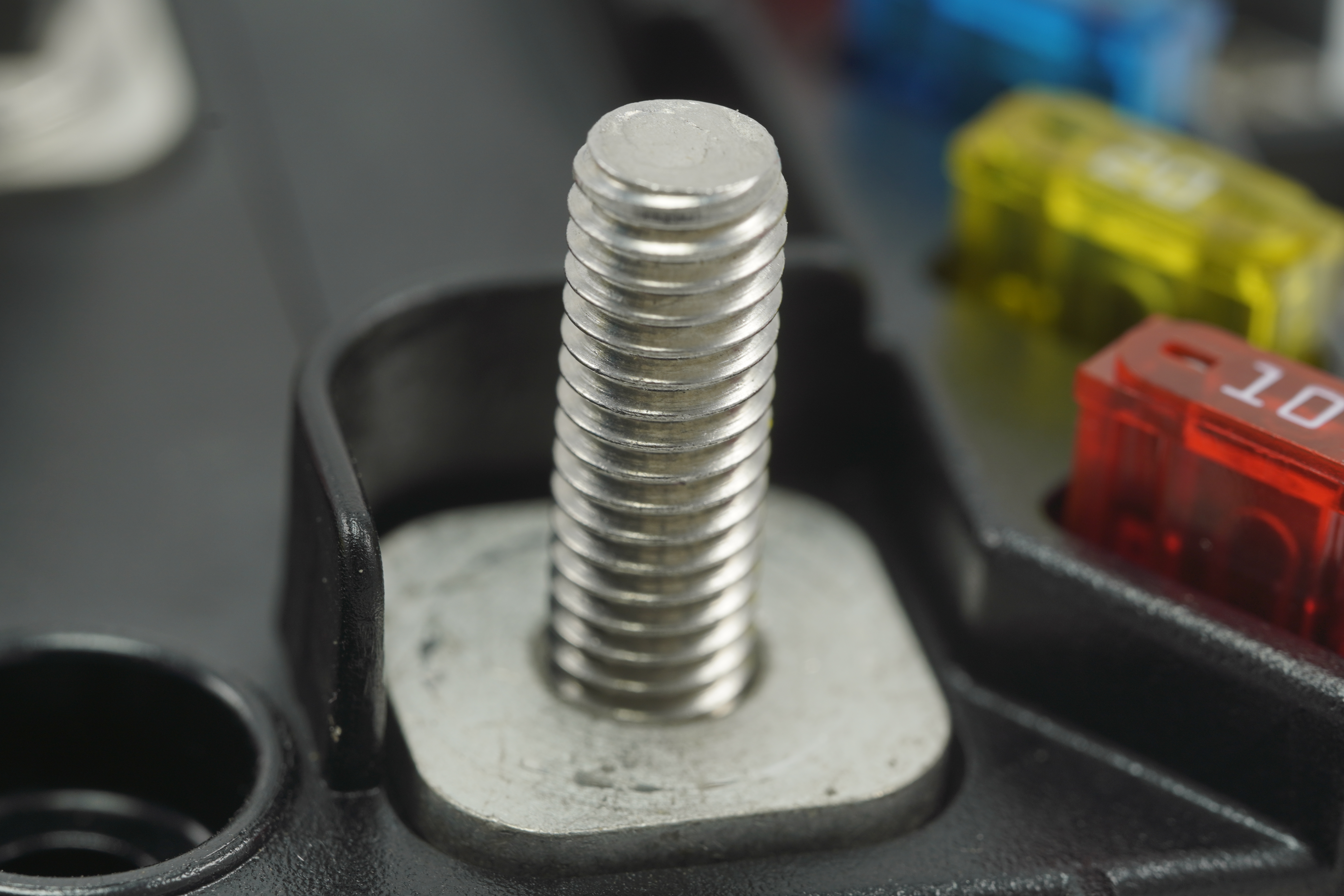

    Large Terminal Pad

    Ensures reliable and secure connection is maintained for duration of install and protects ring terminal from deformation.
