Fuse Block ATO/JCase 8+2, M6 In, Bulk

    29.75 29.75 29.75 USD

    29.75

    Option not available

    This combination does not exist.

    Add to Cart


    30-day money-back guarantee
    Free Shipping in U.S.
    Buy now, get in 2 days


    Cover label recesses

    Cover provides recessed locations for circuit identification labels and fuse block function label. Standard and customized label sheets available separately


    simple connectivity

    Optional bus bars provide space saving and cost effective connections between other devices such as the TH Series relays disconnects.


    STAINLESS STEEL SELF-LOCKING HARDWARE

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts include self-locking mechanisms.


    low-amp output connectors

    Plug and play assembly and reduce potential of loose electrical screw connections.


    ip rated fuse cover

    Snap on fuse cover provides protection from positive terminals and ensures device is ignition protected (ISO 8846) in potentially explosive environments.


    optional label sets

    Standard water-resistant label sets for vehicle upfitters and marine installations available. Custom sets also available.


    available mating cable assemblies

    We provide everything from loose connectors and terminals to complete connector and wire assemblies with circuit identifiers.


    PRIMARY SPECIFICATIONS



    MAXIMUM CURRENT - ENTIRE BLOCK

    200 Amps DC

    MAXIMUM CURRENT - ATO Fuses combined

    100 Amps DC

    MAXIMUM CURRENT per fuse

    ATO/ATC Fuses:    20 Amps

    LP J Case Fuses:  50 Amps

    MAXIMUM OUTPUT WIRE SIZE (ATO)

    ATO/ATC:   14 AWG

    LP J Case:  8 AWG





    COMPATIBLE FUSE TYPES

    ATO/ATC Standard Automotive & Low Profile J Case

    OPERATING VOLTAGE

    12 or 24 V Systems,  0 to 36 Vdc

    NUMBER OF FUSE POSITIONS

    ATO/ATC Fuses:     Eight (8)

    LP J Case Fuses:   Two (2)

    OUTPUT TERMINAL CONNECTION

    ATO/ATC:     Molex MX-150 Connector

    LP J-Case:   Ring Terminals / M4 (#8)

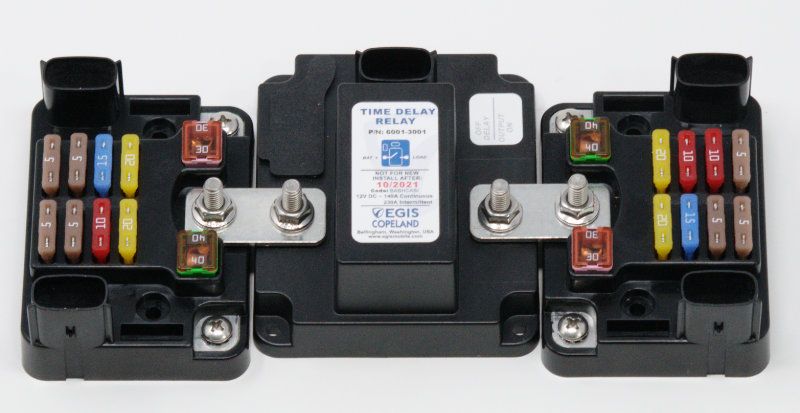

    Application Example

    Entire Vehicle Switching and Circuit Protection

    Combining a high-amp TH Series Time Delay Relay (TDR) with a 5015 Fuse Block attached to the TDR input stud (left) provides 24 hour / keep-alive circuits; while the second 5015 Fuse Block (right) attaches to the output stud of the TDR providing switched circuits for the installation. The TDR can operate both as a remotely controlled switch and optionally in an autonomous mode after a prescribed time from a trigger event or due to a low input voltage situation. Fuse blocks shown without included covers
