Applications / Problems This Solves

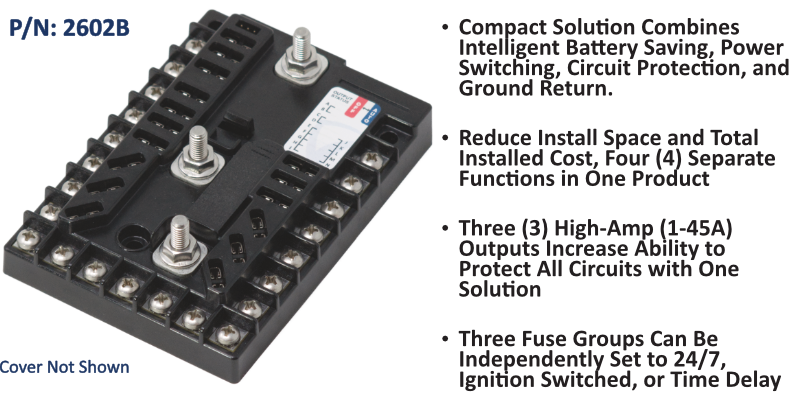

Compact Solution Combines Intelligent Battery Protection, Power Switching, Circuit Protection, Ground Return Buss, and Optional Manual Override Switch.
Reduce Install Space and Total Installed Cost, Four (4) Separate Functions in One Product
Three (3) High-Amp (1-45A) Outputs Allow Protection All Circuits with One Solution
Three Output Groups Independently Set to 24/7, Ignition Switched, or Time Delay
Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks
Optional Under and Over Voltage Protection prevents battery and electrical load damage, can optionally be applied to 24/7 configured outputs for additional protection.
LED Indicators for On/Off, Blown Fuse Indication, or Voltage/Temp Abnormalities
Ignition or V-Sense trigger options for on/off.
Remote and Local Kill Switch Options: Provide unique ability to isolate all auxiliary loads, including optionally outputs set to 24/7
4 Year Industry Leading Warranty
Protective Terminal Cover
Ensures input and output power terminals and screws do not short circuit to each other or to ground.
Simple Dip Switch Programming
Determines off delay for each output independently as well as other operational settings.
Three (3) Flexible High Amp Fused Outputs
Protects a wider range of loads by offering two paralleled mini fuses, one or both positions may be used.
Integrated Ground Return Block
Receives up to 14 ground return wires and provides one high amp return to the battery.
Robust Input & Output Terminals
M6 stainless steel terminals and self-locking nuts with tin plated copper pads.
LED Indicator For Each Output
Reports circuit On, Off, Blown Fuse, Over/Under Voltage, and Over-Temperature.
