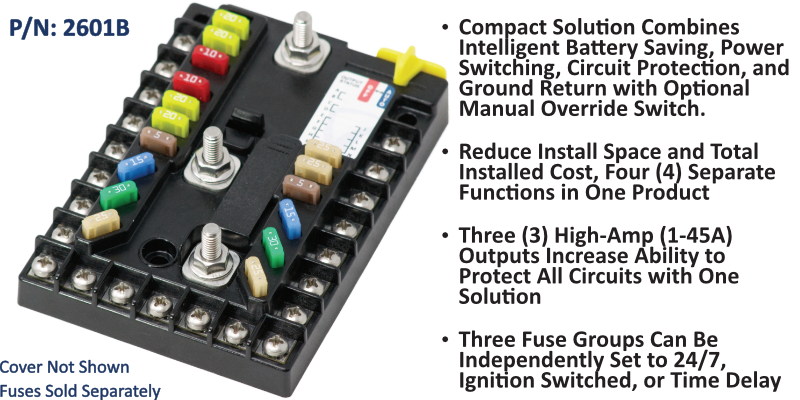

PDM 14 Circuit + Ground, 175 A, 12 V W/Kill Switch

    197.95 197.95 197.95000000000002 USD

    197.95

    This combination does not exist.

    Add to Cart

     Find Distributors                      Local Sales Reps


    For Direct OEM/Distributor Pricing, Contact Us At: [email protected]
    Shipping: 2-3 Business Days

     Description

    Applications / Problems This Solves

    Compact Solution Combines Intelligent Battery Protection, Power Switching, Circuit Protection, Ground Return Buss, and Optional Manual Override Switch.

    Reduce Install Space and Total Installed Cost, Four (4) Separate Functions in One Product

    Three (3) High-Amp (1-45A) Outputs Allow Protection All Circuits with One Solution

    Three Output Groups Independently Set to 24/7, Ignition Switched, or Time Delay

    Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks

    Feature Summary

    Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).

    Optional Under and Over Voltage Protection prevents battery and electrical load damage, can optionally be applied to 24/7 configured outputs for additional protection.

    LED Indicators for On/Off, Blown Fuse Indication, or Voltage/Temp Abnormalities

    Ignition or V-Sense trigger options for on/off.

    Remote and Local Kill Switch Options: Provide unique ability to isolate all auxiliary loads, including optionally outputs set to 24/7

    4 Year Industry Leading Warranty

     Focal Features

    Manual Kill Switch (Optional)

     Provides disconnect of load circuits for system maintenance or to lock-out against misuse.

    Protective Terminal Cover

    Ensures input and output power terminals and screws do not short circuit to each other or to ground.

    Simple Dip Switch Programming

    Determines off delay for each output independently as well as other operational settings.

    Three (3) Flexible High Amp Fused Outputs

    Protects a wider range of loads by offering two paralleled mini fuses, one or both positions may be used.

    Integrated Ground Return Block

    Receives up to 14 ground return wires and provides one high amp return to the battery.

    Robust Input & Output Terminals

    M6 stainless steel terminals and self-locking nuts with tin plated copper pads.

    LED Indicator For Each Output

    Reports circuit On, Off, Blown Fuse, Over/Under Voltage, and Over-Temperature.
