New Products 2022 Q2
5603 PT Series Delay On Relay
The 5603 version of our popular PT series solid state relays is a 30 Amp on delay relay that will delay output connected devices to turn on after programmable time has been set. This compact relay is perfect for 12 volt electrical systems with confined install spaces and is IP 67 rated against dust and moisture intrusion. High amperage design lessens the need for additional relays and complicated wiring. Integrated easy to see LED status indication provides intuitive diagnostic feedback.
5603 PT Series Delay On Relay

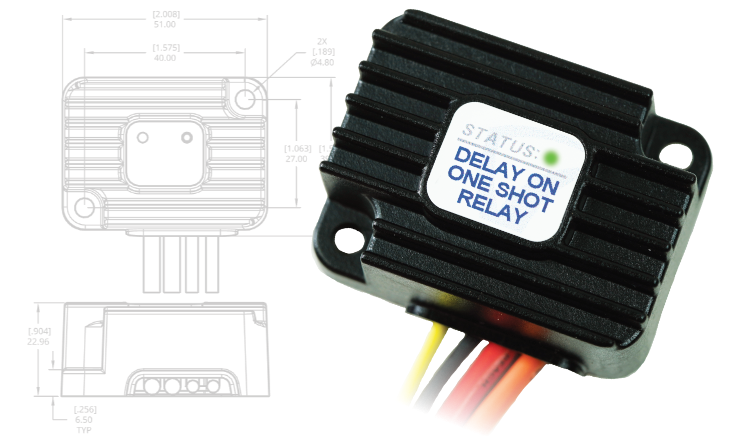

5604 PT Series Delay On Relay
w/Optional One Shot
This new addition to our popular PT series solid state relays is a 30 Amp one shot timer with optional on delay which can be triggered from a leading or falling input line voltage and after the shot duration will lock out the output until the control voltage re-sets. This compact relay is perfect for 12 volt electrical systems and its tough & sealed construction makes it ideal for engine bays and compact size ensures flexibility to install in confined spaces.
5604 PT Series Delay On One Shot Relay

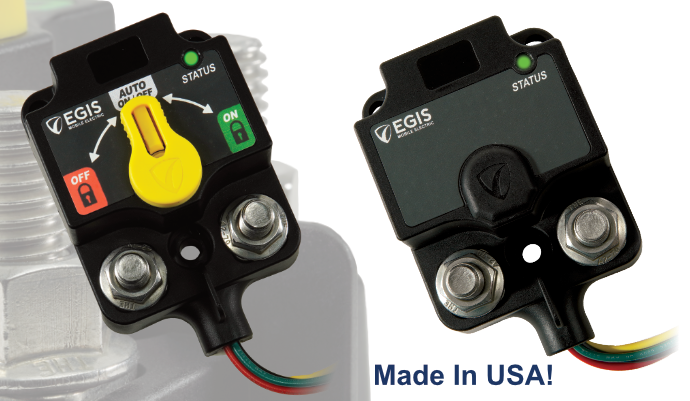

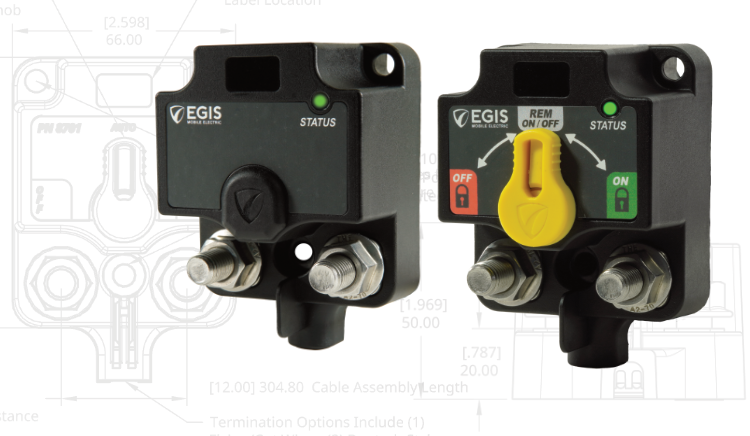

XD Series 500 Amp Bi-Stable Remote Battery Switch / Solenoid
Replace legacy remote battery switches and solenoids with the new XD Series Remote Battery Switch / Solenoid featuring magnetic latching operation, a 40% smaller footprint than legacy devices, and an ultra low off state current dissipation of only 1.3 milliamps. Forward facing stainless input studs make landing large wires easy and protective cover with integrated label recesses enables easy identification while providing short to ground protection. These solutions are available with or without an easily operated manual control knob to force it on or off and lock the device out during vehicle or vessel servicing. Verify operational readiness near and far with integrated LED status indicator and a wire output for optional remote LED indication.
8710-1500 Remote Battery Switch w/Knob & Tinned Wires
8710-1600 Solenoid w/Tinned Wires
8810-1500 Remote Battery Switch w/Knob & Deutsch Connector
8810-1600 Solenoid w/Deutsch Connector

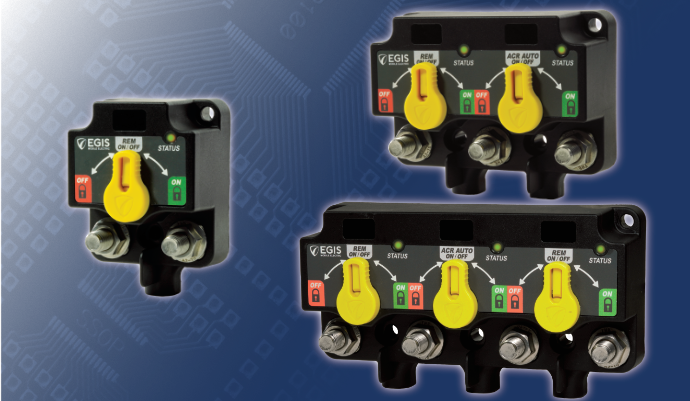

XD Series Flex RelaysSingle Circuit / Double Circuit / Triple Circuit
Available in Single, Double and Triple circuit variations. Each position in the flexible relay can be used as a normal 500A relay battery disconnect, an automatic charging relay, or even a low voltage disconnect. Also available with or without manual override knobs and you also have remote input through these wires that can be either pre-tinned wire leads or come with a sealed Deutsch DTM connector. Compact size and optional busbars keep installation size to a minimum without sacrificing features or reliability. Protective terminal cover also included which has label recesses making wire identification easy!
Single XD Series Flex Relay
Double XD Series Flex Relay
Triple XD Series Flex Relay
XD Relay Part Number Ordering Guide
Product Release 2022 Q1

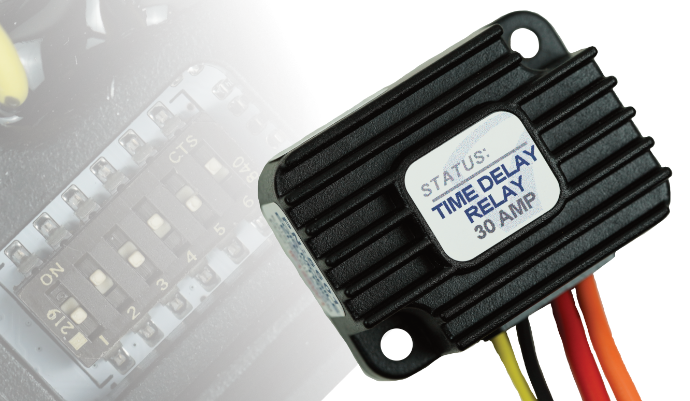

24V PT Series 30 Amp Time Delay Relay
Now available in 24 volt version, our 30 Amp PT Series Time Delay Relay can save your batteries and prevent engine starting problems by keeping add-on equipment from running past the programmable time that has been set.
XD Series 500 Amp Programmable Automatic Charging Relays
This heavy duty high amp ACR isolates or connects two batteries to manage electrical system charging, eliminating dead start batteries.
8700 Heavy Duty Mechanical Disconnect/Battery Switch

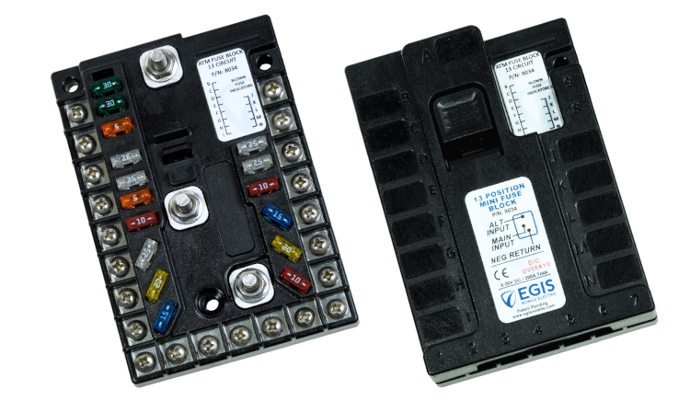

8034 13 Circuit Plus Ground Fuse BlockNew 13 circuit plus ground ATM-Mini fuse block, 200 Amp maximum continuous current, and three fused high amp (1-50A) outputs.Great as a fuse block expansion for our 2601 & 2602 Power distribution modules.
Product Release 2021

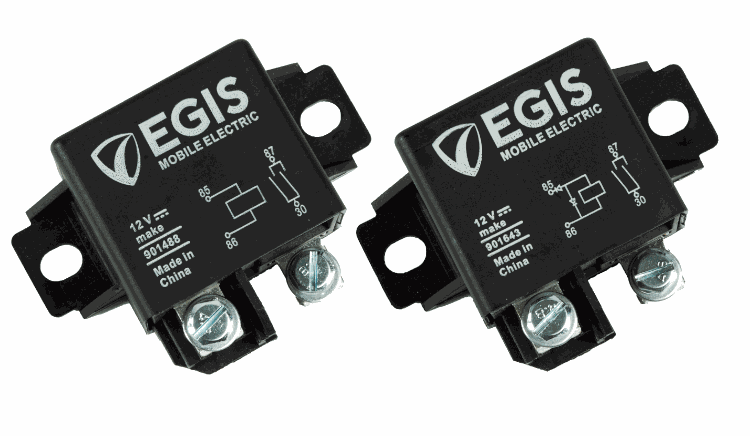

75 Amp Automotive Relays
901463 Dual Diode Automotive Relay

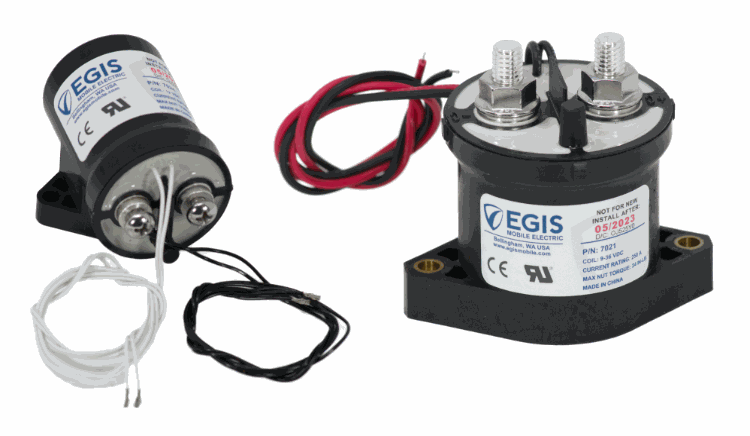

High Voltage/Amperage Contactors
100A and 250A-400A
High ampere sealed contactors provide long term reliability for remote switching needs. High contact voltage rating easily supports 12-24 Vdc applications and up to 48V and beyond.

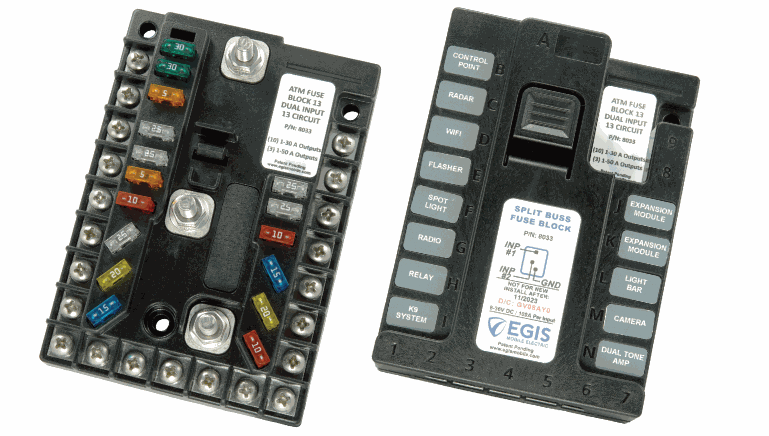

Dual Input Fuse Block
Automotive/ Marine Rated
Unique hybrid fuse solution offering three high amp outputs, compact circuit protection solution provides two (2) Input/Output groups, seven ground return screws can support up to fourteen (14) wires. Ten (10) outputs @ 1-30 Amp, Three(3) outputs @ 1-50 Amp and two unfused outputs at 1-60A
. 8033 Dual Input Fuse Block
Product Release 2020

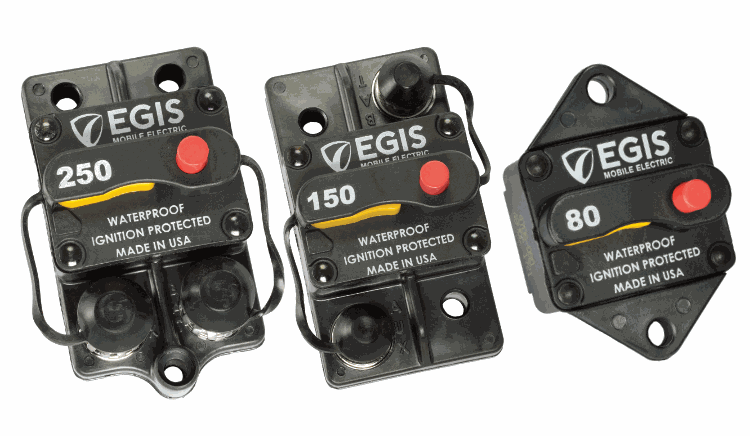

High-Amp Circuit Breakers
Designed for high temperature engine compartment applications and fully waterproof. Unique high switching cycle design provides 6,000+ operations and up to 72 Vdc application support. All stainless steel self-locking hardware and integrated terminal stud insulators.
More Info On The Circuit Protection Page

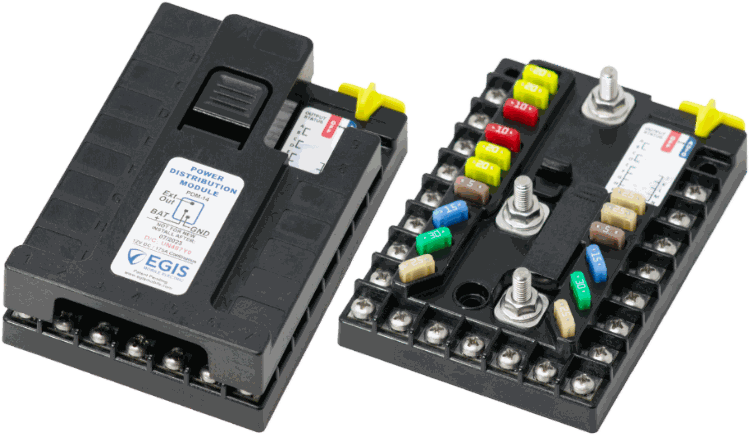

Power Distribution Module
Extremely compact all-in-one power switching and circuit protection solution provides three (3) configurable output groups each programmable to be either 24/7, ignition switched on/off, or time delayed off. Seven ground return screws can support up to fourteen (14) wires. Ten (10) outputs @ 1-25 Amp, Three(3) outputs @ 1-45 Amp. LEDs for each output indicate off, on, fuse blown, over/under voltage, and over-temperature.

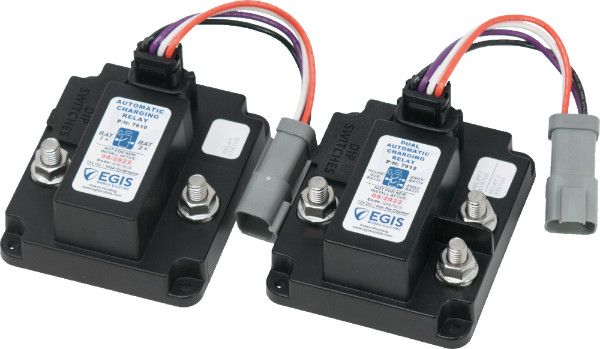

Dual / Triple Battery ACRs
(Automatic Charging Relays)
Designed for harsh environments with three control wire connection options including Deutsch DT/AT connectors. The family includes a 160 Amp Dual Battery ACR or a Triple Battery 2x80 Amp ACR, both available in either 12 or 24 volt models.

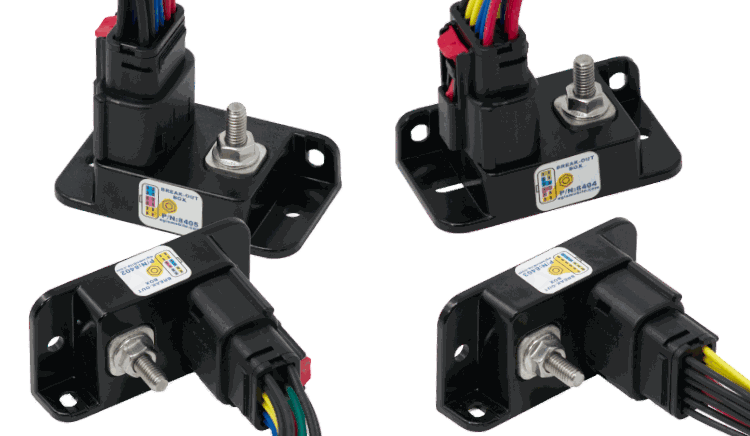

Sealed Distribution Blocks
Sealed blocks with 12 Position MX-150 integrated connector provide several variations of connection between wires, each with a high power M6 I/O terminal stud connected to one of the terminal groups. Eliminates unreliable butt splice connections, simplifies connecting more than 2 wires, and provides combination solutions that allow signal interconnection with ground return collection. 150 Amps max rating on M6 I/O terminal.
More Info On Distribution Products Page
