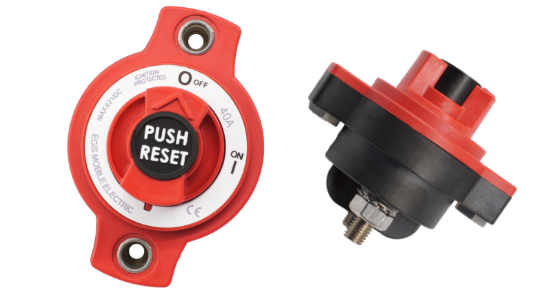

4701  Mini Circuit Breaker / Disconnect Switch

2 in 1 Circuit Breaker / Disconnect Switch

IP66 Weatherproof

42V - Voltage Rating

High Switching Cycle Endurance

Trip-Free Design


Panel Mount Type

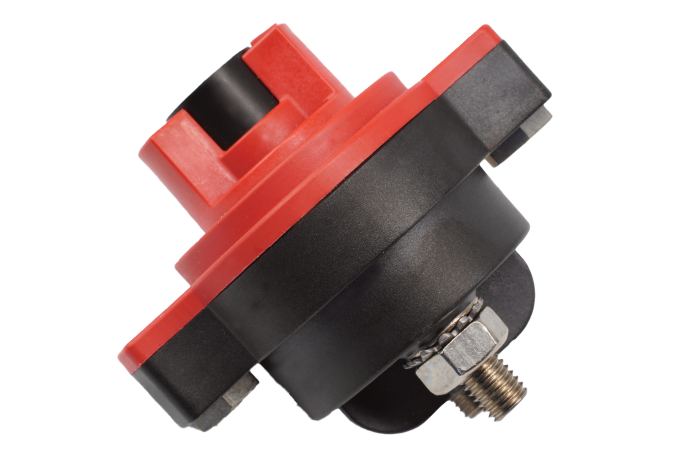

4701 Mini Circuit Breaker / Disconnect Switch

 20 Amp             30 Amp

40 Amp         50 Amp

 60 Amp

Continous Current Rating (Amps)
20-60

MAX VOLTAGE
(VDC)

42

Switching Cycle Endurance
3k-5k

INGRESS PROTECTION RATING
IP66​

Interrupt Current @ 14 VDC (Amps)​
3,000

INTERRUPT CURRENT @ 28 VDC (AMPS)
1,500

Focal Features

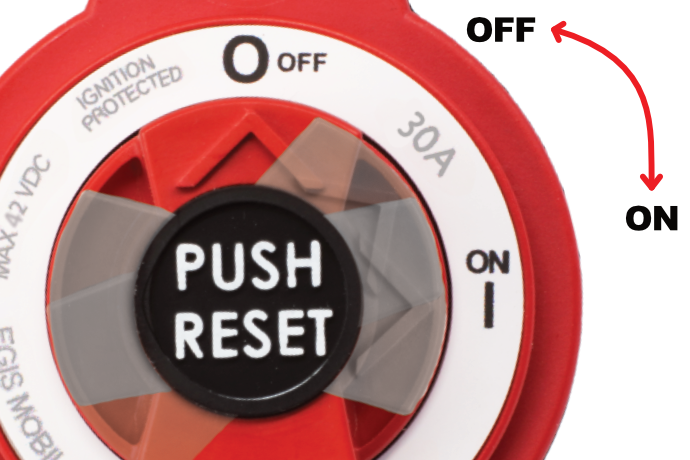

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

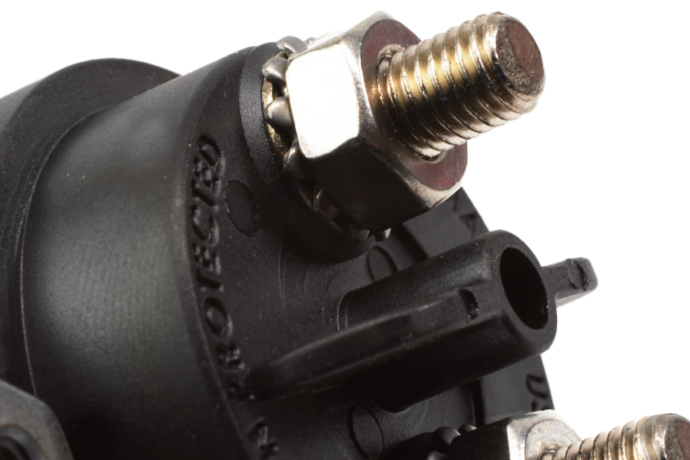

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistant for harsh environment applications.

 Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.  ​

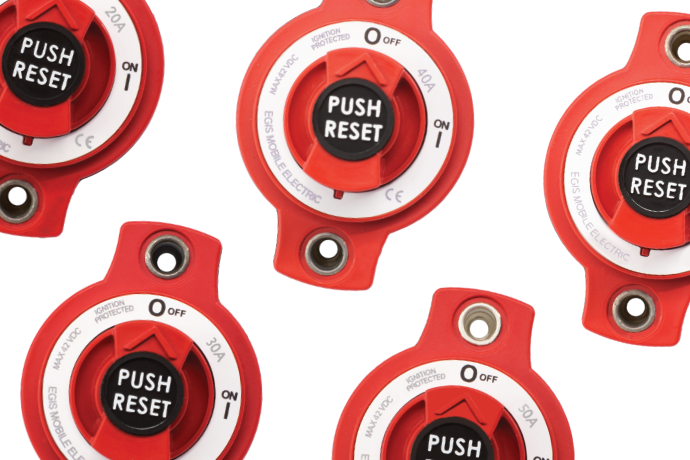

 Compact Size

Fit more circuit switching / protection on  a smaller panel!

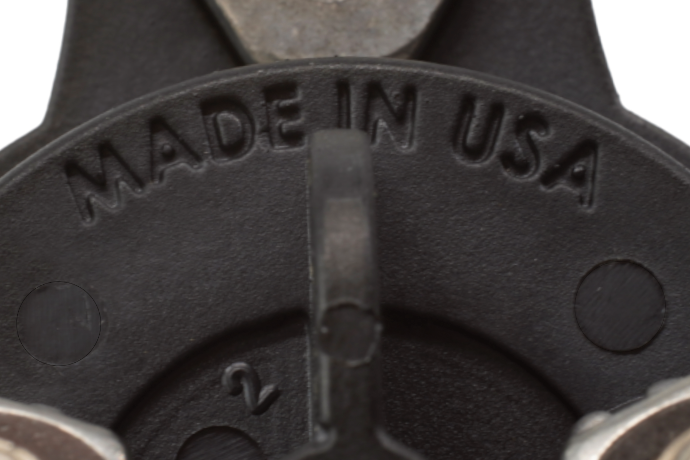

Made in the USA of high quality components.

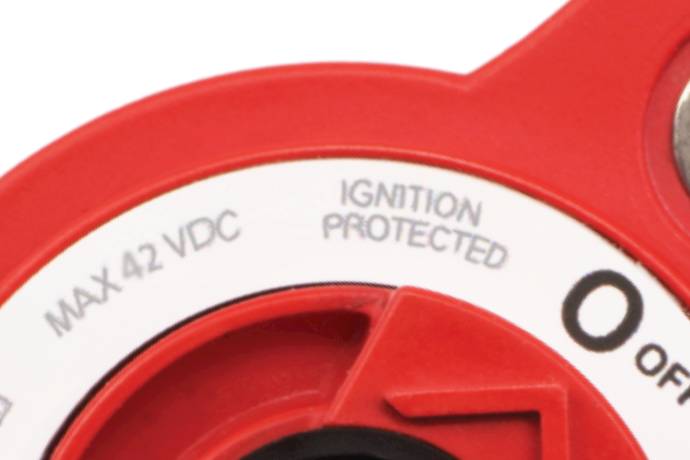

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Documentation & CAD Files

4701 Information Sheet

4701

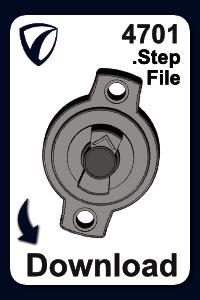

STEP File
