Applications / Problems This Solves
Ensures power available to equipment after engine is off or at end of shift (video downloads) are satisfied while automatically turning off after a preset time or optionally if battery charge is low.
Ensure dual battery systems function safely and effectively by sharing charging power when available and isolating batteries when desired to ensure starting or communications ability.
Reduce voltage drop from battery to loads by eliminating need for long power cables runs to human access areas, also reducing costs.

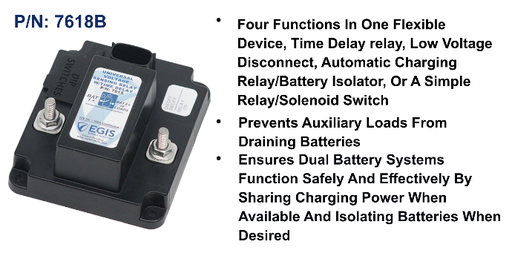

Flexible Application Options: Install as a Time Delay Relay, Battery Management Relay, Low Voltage Disconnect, or Simple Relay. On/Off trigger via external Ignition signal and/or alternator voltage sense, Adjustable voltage trigger levels, Adjustable low voltage protection levels, and Ability to determine ignition input priority.
Adjustable OFF Time Delay: 0 sec to 16 hours
Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection
Start Isolation / Kill Switch control input option for service technicians, emergency OFF, or protecting sensitive add-on equipment from engine cranking voltage fluctuation.
Flexible Control Options via Ignition Key, alternator voltage sense, or both.
Diagnostic Feedback via optional external led and on-board LEDs
8 - 18
0 - 15
TOP SIDE DIP SWITCHES
Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
STAINLESS STEEL SELF-LOCKING HARDWARE
100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
INTEGRAL I/O CONNECTOR
Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
Harness w/2 feet ground/ignition wires included. Harnesses with additional outputs, longer wires, and Deutsch connectors available
EASY INTEGRATION WITH CT FUSE BLOCKS
Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
EASY INTEGRATION WITH RT FUSE BLOCKS
Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
