TH3 - TH Series 24V Dual Automatic Charging Relay (ACR), 2x80 A, Bulk

    167.80 167.8 USD 167.80

    167.80

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     DESCRIPTION

    Applications / Problems This Solves

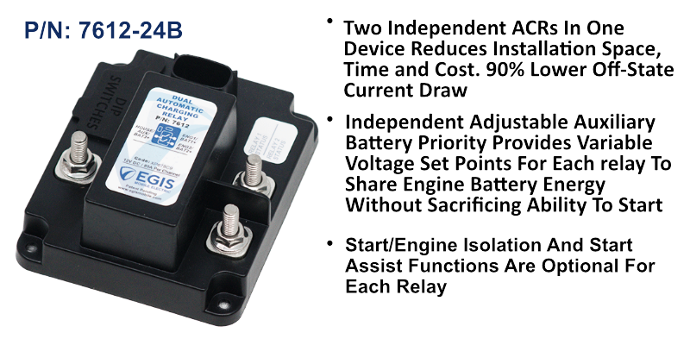

    Prevents Dead Start Batteries and Ensures Starting Capability by sharing charging on either of three (3) batteries and isolating batteries when no charge sources are present.

    Reduces Off-State Quiescent Current by 90% in Three Battery Bank Systems by incorporating two independent charge relays with one ultra-low power draw monitoring system.

    Fully Sealed with Integrated Connector solves control wire corrosion and vibration issues related to competitive industry solutions. Enables plug and play assembly.

    Accessory Products

    Feature Summary

    Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

    Optional Under-Voltage Lock-Out provides ability to prevent either ACR from connecting a good battery under charge with a battery that has a shorted cell, ensuring a single battery or bank will not deplete the other system batteries.

    Start/Engine Isolation and Start Assist functions are optional for each relay; allowing protection of sensitive electronics from engine starting events or the option to boost cranking effectiveness.

    Adjustable Off-Voltage for Auxiliary Battery Priority provides ability to share start battery energy for auxiliary without risking engine starting ability.

    Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see examples)

     PRIMARY SPECS

    CONTINUOUS AMPS TOTAL / PER CIRCUIT
    160 / 80
    voltage range
    (v dc)

    16 - 36
    off-state current draw (mA)
    1.3
    intermittent AMPS TOTAL / PER RELAY
    240/120
    acr closing voltage range (v dc)
    25.5-16.7
    ACR opening VOLTAGE RANGE (V DC)
    24.4-15.5

     DOWNLOADS

    REFERENCE INFO

    Sales Sheet, Specification & Installation Information

    3D STEP CAD Model
    ARTICLES
    Check back here for product related articles
    DIAGNOSTICS
    See FAQ section below for further assistance

    FOCAL FEATURES

    TOP SIDE DIP SWITCHES

    Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.

    STAINLESS STEEL SELF-LOCKING HARDWARE

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.

    INTEGRAL I/O CONNECTOR

    Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.

    CONNECTION OPTIONS

    Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)





    EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS)

    Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.

    LED DIAGNOSTICS

    Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.
