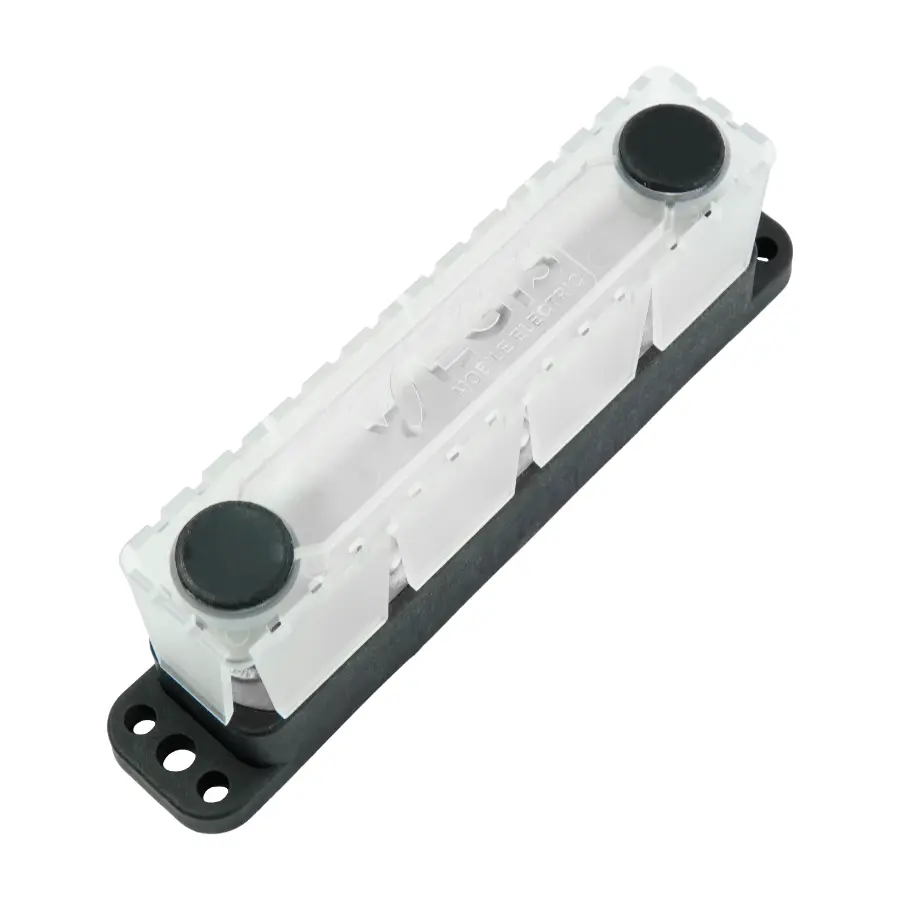

200 A Dual Level Busbar 2x9 Circuit With Cover, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves

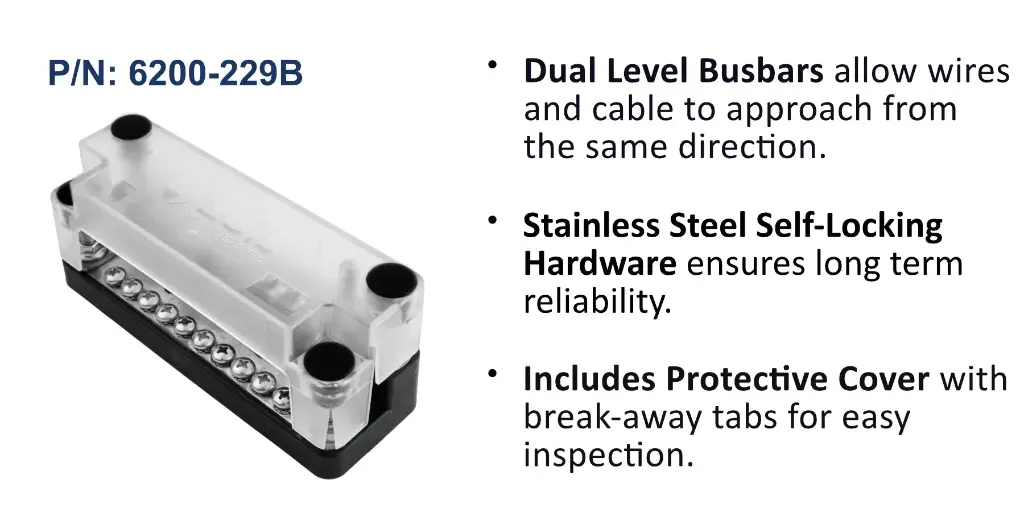

Dual Level Busbars allows wires and cables to approach from the same direction.
Compact Footprint allows for installation in areas where space is limited.
Information Sheet
Feature Summary
Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Clear Protective Cover allows for easy installations and inspections with break-away tabs.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Clear Protective Cover allows for easy installations and inspections with break-away tabs.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
200
MAX VOLTAGE
(VDC)
80
Base material
Nylon 6 30% Glass-Filled
BusBar material
Tin-Plated Copper
cover material
Clear Polycarbonate
Mounting Holes
4X #10 (M5) & 2X 1/4" (M6)
Focal Features
Protective Cover
Includes transparent cover with break-away tabs for cable & terminal access.

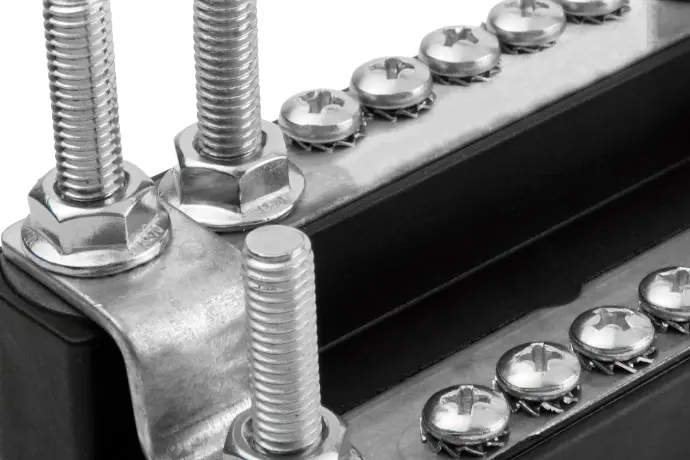

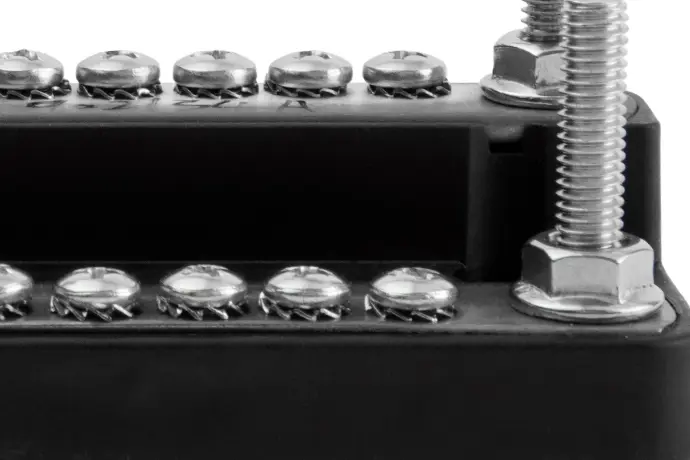

Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Robust Performance
Tin Plated Copper Busbars ensure superior electrical performance with minimal voltage drop.
High Temperature Materials
Offers marine grade performance and long term connection reliability.
