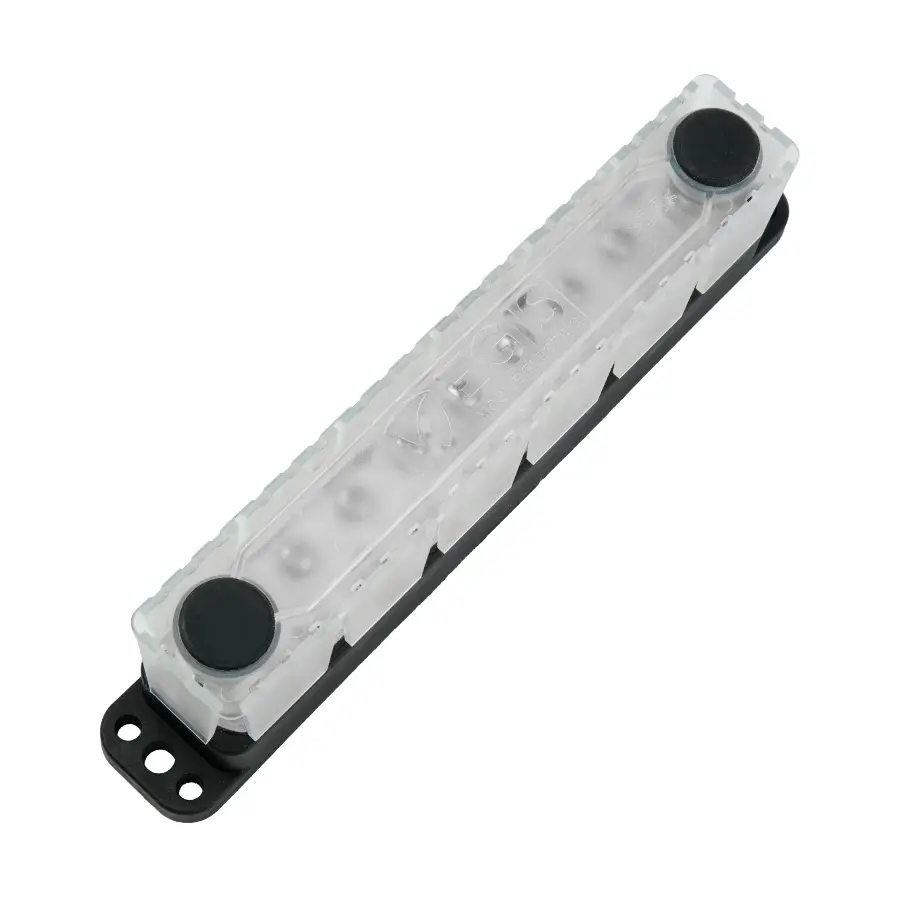

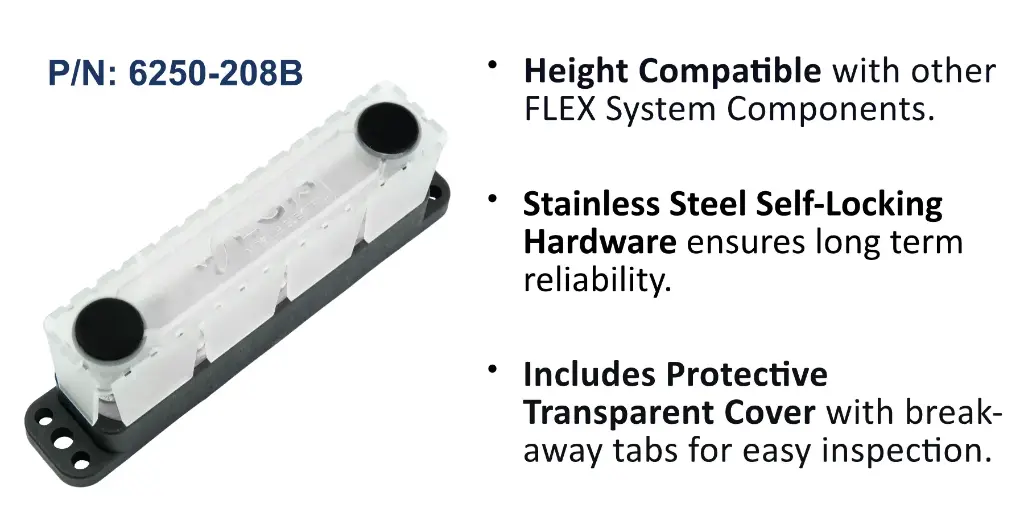

MaxiBus - Dual 5/16" Studs +8 Circuits (#10) - 250 Amp, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Variety Of High & Low Amperage Outputs allows for a wide range of outputs to be distributed from a single busbar.
Compact Footprint allows for installation in areas where space is limited.
Information Sheet
Feature Summary
Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Two Studs & Eight Dedicated Screw Terminals allows multiple devices to share a common power source.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Two Studs & Eight Dedicated Screw Terminals allows multiple devices to share a common power source.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
250
MAX VOLTAGE
(VDC)
80
Base material
Nylon 6 30% Glass-Filled
BusBar material
Tin-Plated Copper
cover material
Clear Polycarbonate
Mounting Holes
4X #10 (M5) & 2X 1/4" (M6)
Focal Features

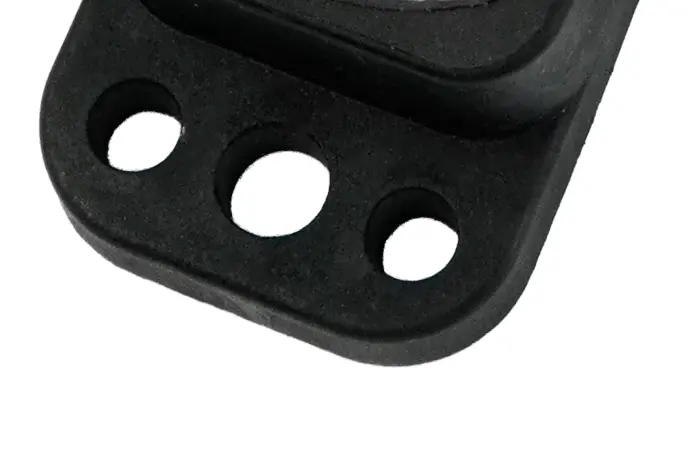

Ease Of Installation
Secure mounting with precise 4x #10 (M5) & 2x 1/4" (M6) mounting holes.
Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Robust Performance
Tin Plated Copper Busbars ensure superior electrical performance with minimal voltage drop.
High Temperature Materials
Offers marine grade performance and long term connection reliability.
