DESCRIPTION

Applications / Problems This Solves

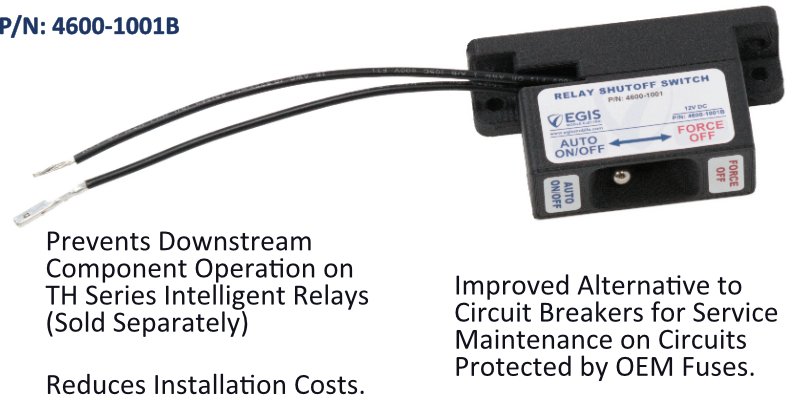

Improved Alternative to Circuit Breakers where power feed is already fuse protected. Eliminates circuit breaker voltage drop improving end component performance especially during low battery situations.

Prevents Load Component Operation and Reduces Power Draw while vehicle/vessel is stored or being serviced by personnel not authorized to operate loads.

Reduces Installation Costs by replacing circuit breakers with plug & play connected solution.

Feature Summary

Protects Batteries from long-term storage drain by eliminating off-state current draw.

Simple & Robust Installation: Pre-terminated wiring for plug & play connection to TH Series MX-150 control connector ensures load side of switch connection is fully environmentally sealed.

Compact Solution surface mounts vertically or horizontally to maximize installation flexibility. Panel mount installation hardware also included.

Robust Construction: Carbon fiber reinforced housing, heavy action toggle, tin plated wires.

Lifetime Satisfaction Guarantee

PRIMARY SPECS

CONTINUOUS
CURRENT (AMPS)
6

WIRE GAUGE
(AWG)
16

Wire INSULATION
OUTSIDE DIAMETER (MM)
2.7

LENGTH OF WIRES
(MM)
135

MIN OPERATE TEMP
(DEG C)
-40

MAx Operate Temp
(Deg C)
85

DOWNLOADS

REFERENCE INFO

Sales Sheet, Specification & Installation Information

3D STEP File

INSTALLATION

Sales Sheet, Specification & Installation Information

ARTICLES

Check back here for product related articles

MARKETING MATERIALS

Sales Sheet, Specification & Installation Information

DIAGNOSTICS

See FAQ section below for further assistance
