Description
Applications / Problems This Solves

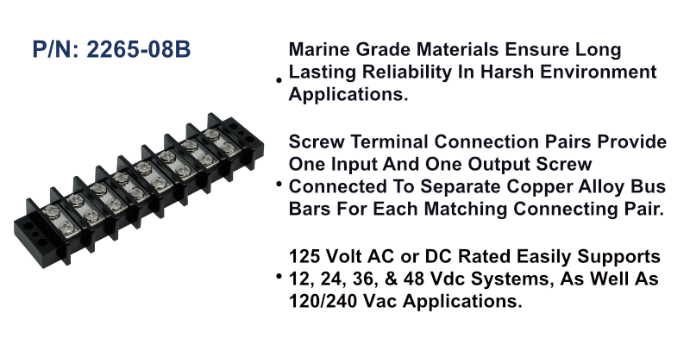

Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminals blocks available in 2, 4, 6, 8, or 10 matching connection pairs.
Marine Grade Materials ensure long lasting reliability in harsh environment applications. Tin plated copper alloy conductors, stainless steel hardware, and high temperature insulation materials deliver a robust solution.
Feature Summary
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
Bullet-proof Construction: High temperature insulation material, tin plated copper alloy conductors, and stainless steel hardware.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
65
MAX VOLTAGE
(VAC/VDC)
250
Dielectric Strength
2000Vac
Hardware Material
Stainless Steel
CE Marked?
Yes
ROHS Compliant?
Yes
Focal Features
High Insulation Walls
Protects Ring Terminal Splices from shorting to adjacent circuits or ground.
Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Robust Construction
Copper Alloy Busbars ensure long life and optimal current carrying capability.
High Temperature Materials
Offers marine grade performance and long term connection reliability.
