85 Series Circuit Breakers
Automatic Circuit Protection & Manual On/Off Switching
IP67 Sealed Against Dust & Water Intrusion
48V - Voltage Rating
High 6K Switching Cycle Endurance
Type III Trip-Free
Panel & Surface Mount
Made In the U.S.A.

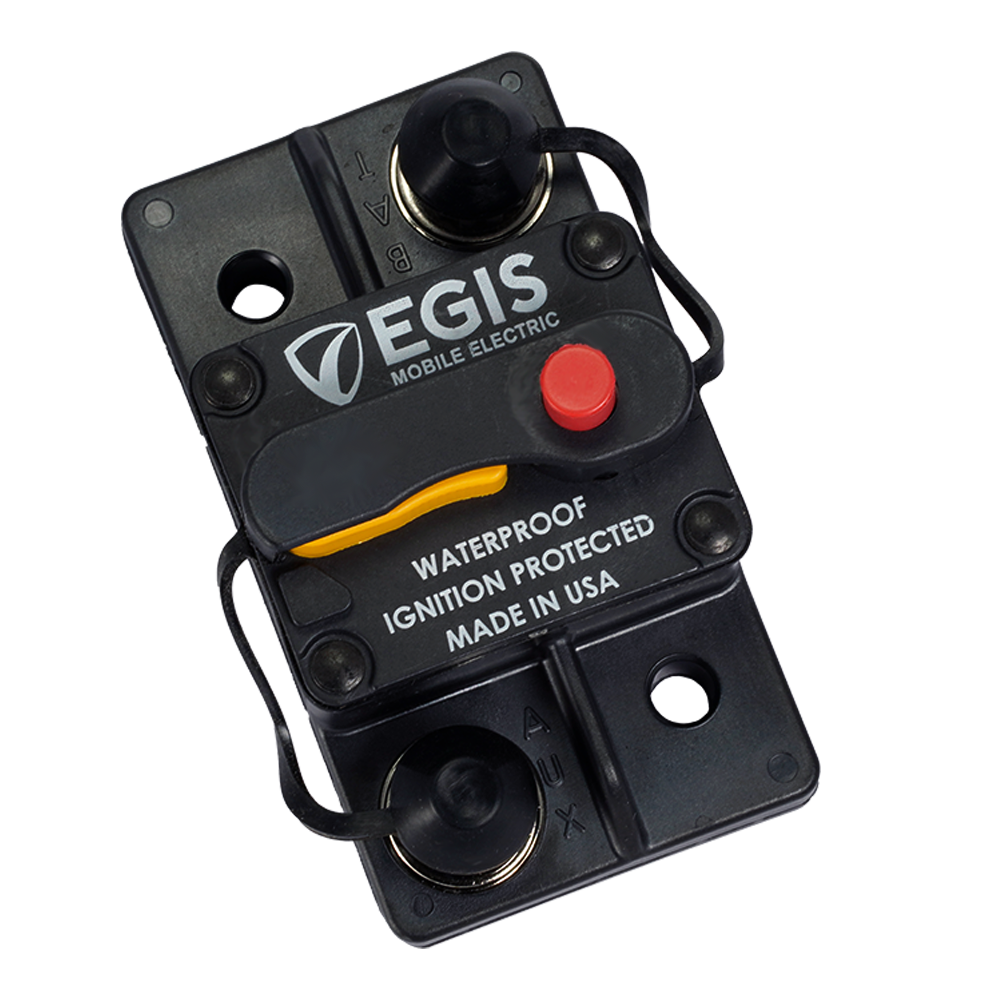

4703 Surface Mount

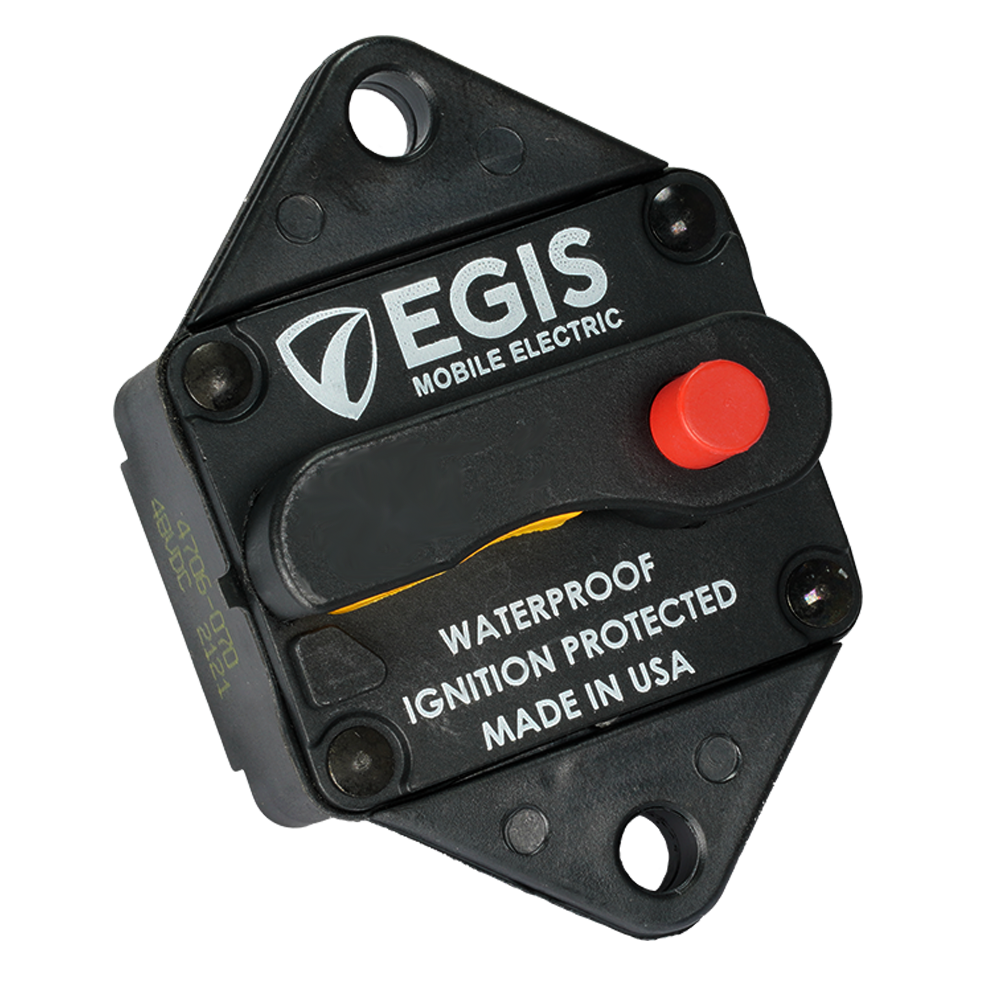

4706 Panel Mount
Surface Mount 25 Amp - 250 Amp
Panel Mount 25 Amp - 150 Amp
MAX VOLTAGE
(VDC)
48
14Vdc Electrical Endurance (Cycles)
6,000
INTERRUPT CURRENT @ 16 VDC (AMPS)
5,000
INTERRUPT CURRENT @ 28 VDC (AMPS)
3,000
INGRESS PROTECTION RATING
IP67
Focal Features

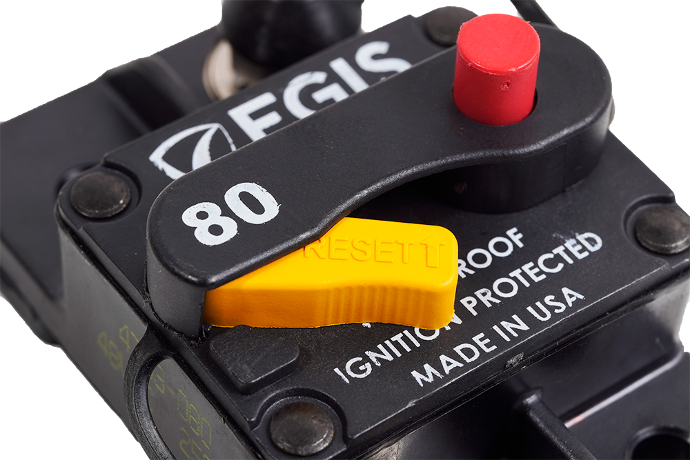

ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

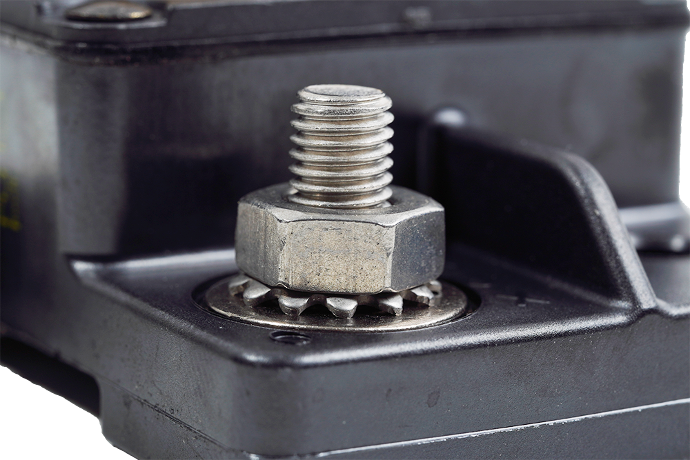

Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistant for harsh environment applic ations.
