Applications / Problems This Solves
Feature Summary

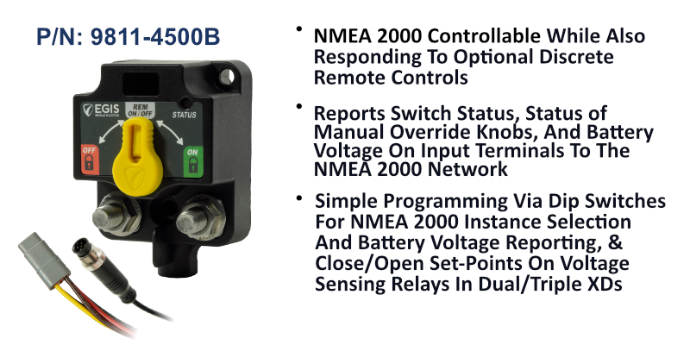

Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility.
35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems.
Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
Intuitive Manual Controloption simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Total Continuous Current (Amps) w/2X 4/0 AWG
500
Live Current Switching @ 12Vdc (Amps)
300
Live Current Switching @ 24Vdc (Amps)
150
Input Voltage Range (Vdc)
8.0 - 36.0
Standby Current (mA)
15
Ignition Protection
SAE J1171 / ISO 8846
Operating Temperature Range
-40C to 105C
Ingress Protection
IP67 / IP6K9K
Focal Features
MFD Compatible
Easy switch control and monitoring via NMEA 2000 compatible multi-function displays.
LED STATUS DISPLAY
Easy to see front facing local LED indicator provides visual device status, remote LED replicates local on-device LED
3-POSITION MANUAL OVERRIDE
Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
40 CIRCUIT LABEL SHEET INCLUDED
Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
PROTECTIVE COVER INCLUDED
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
STAINLESS HARDWARE
Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
PROGRAMMABLE
Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
SMALLER FOOTPRINT
XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
