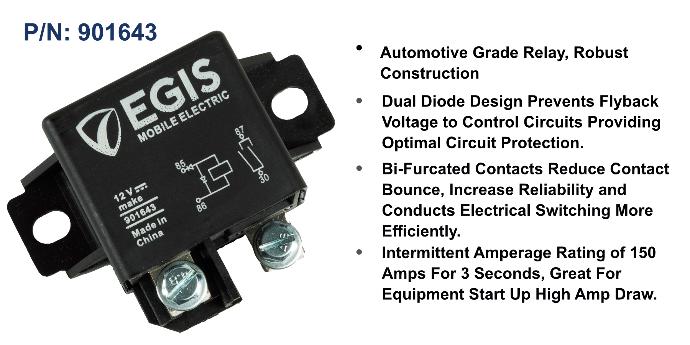

Relay 12V / 75 Amp Dual Diode

    29.20 29.2 USD 29.20

    29.20

    This combination does not exist.


     Find Distributors                      Local Sales Reps


    For Direct OEM/Distributor Pricing, Contact Us At: sales@egismobile.com
    Shipping: 2-3 Business Days

     DESCRIPTION

    Applications / Problems This Solves

    Bi-Furcated Contact reduce contact bounce, increase long term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat build up and contact wear.

    Dual Diode circuit protection ensure flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems.

    High Intermittent Amperage rating of 150 amps for up to 3 seconds making this relay great for temporary high equipment start up amp draw applications.

    Offset Input/Output Terminals and integrated divider design help prevent accidental contact shorts

    High Temperature Rating of 125C/257F makes this a great relay for high temperature installation environments like engine bays and other low ventilation spaces.

    Feature Summary

    Bullet-proof Construction: Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting.

    Dual Mounting Holes on either side for easy mounting with 1/4-20"/M6 1.25 Bolts or screws up to #14 screw.

    Incorporate The Highest Quality Materials for superior performance and has a high 100,000 electrical switching cycle capacity.

    Enhanced Vibration and Shock Protection
    , ensures enhanced reliability and a long service life and maintains electrical system operational readiness.

    Focal Features

    Long Term Reliability

     Built from high quality materials, this relay offers superior electrical switching performance for long term use applications.

    Locking Hardware

     Zinc plated M5 size input/output terminal screws with held in place nuts keeps connections secure and easy tightening for wire terminations.

    Automotive Grade

    Wide operational temperature ratings and shock/vibration resistance make this a great relay for your automotive electrical system. Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6, IP54 and IEC 60068-2-2 ratings.

    Varied Fastener Sizes

    6mm x 8.7mm elongated holes accommodate up to 1/4-20" / M6x1.25 bolts or up to #14/1/4" sized screws and allows for centering adjustment when installing relay.

    Reinforced Mounting

    Robust mounting tabs with strengthening gussets ensures relay stays mounted securely, even through vibration, heat and wire tension.

    Compact Size

    Small mounting footprint is great for confined install spaces where
    space is at a premium.

    Flat Blade Connectors

    Shielded dual 6.3 x .03mm flat male terminal connectors allows for quick, secure and easy control wire connections.

    Offset Terminals

    Integrated divider tab design and varied mounting height input/output pads provides protection against accidental contact shorts.
