Applications / Problems This Solves

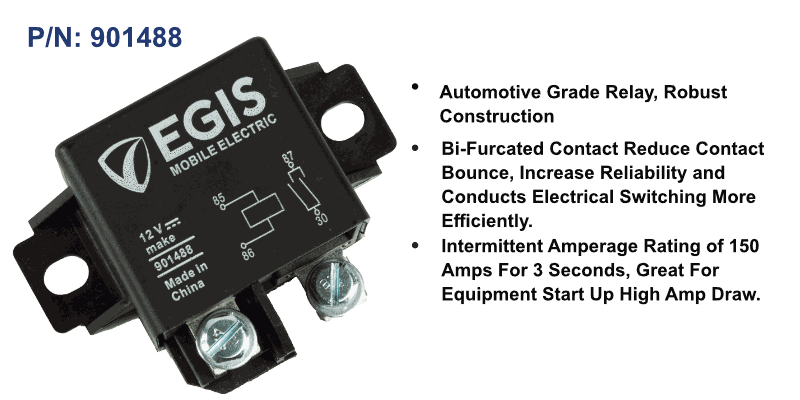

Bi-Furcated Contact reduce contact bounce, increase long term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat build up and contact wear.
High Intermittent Amperage rating of 150 amps for up to 3 seconds making this relay great for temporary high equipment start up amp draw applications.

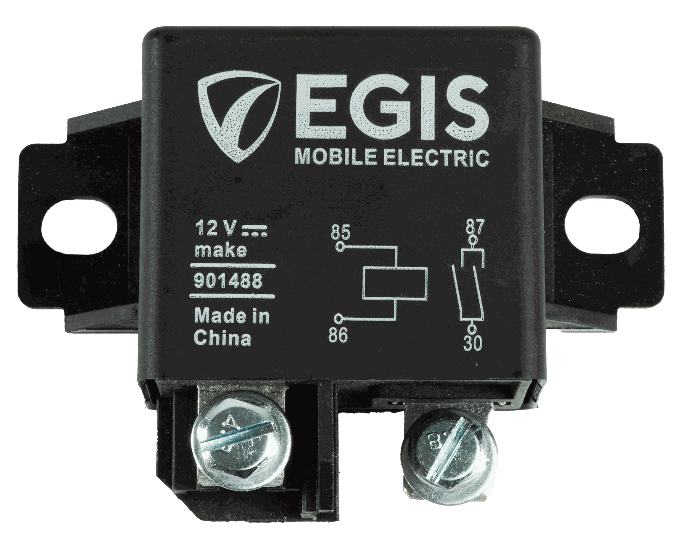

Offset Input/Output Terminals and integrated divider design help prevent accidental contact shorts
High Temperature Rating of 125C/257F makes this a great relay for high temperature installation environments like engine bays and other low ventilation spaces.
Bullet-proof Construction: Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting.
Dual Mounting Holes on either side for easy mounting with ¼-20”/M6 1.25 Bolts or screws up to #14 screw.
Incorporate The Highest Quality Materials for superior performance and has a high 100,000 electrical switching cycle capacity.
Enhanced Vibration and Shock Protection, ensures enhanced reliability and a long service life and maintains electrical system operational readiness.
Long Term Reliability
Built from high quality materials, this relay offers superior electrical switching performance for long term use applications.
Zinc plated M5 size input/output terminal screws with held in place nuts keeps connections secure and easy tightening for wire terminations.
Wide operational temperature ratings and shock/vibration resistance make this a great relay for your automotive electrical system. Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6, IP54 and IEC 60068-2-2 ratings.
Varied Fastener Sizes

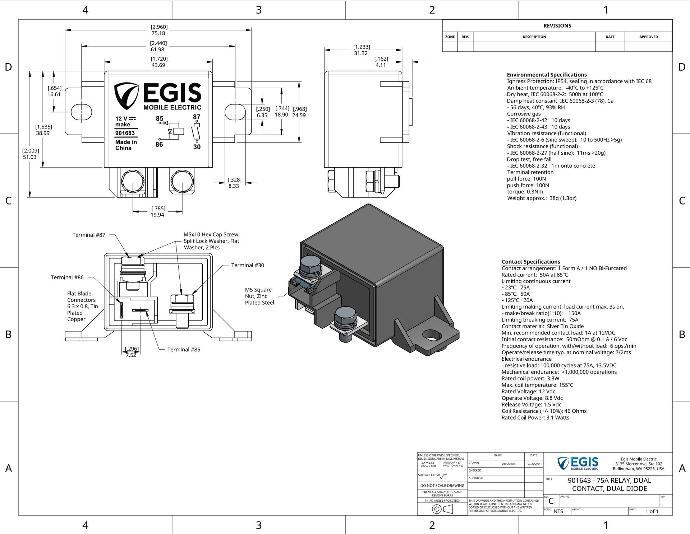

6mm x 8.7mm elongated holes accommodate up to 1/4-20" / M6x1.25 bolts or up to #14/1/4" sized screws and allows for centering adjustment when installing relay.
Robust mounting tabs with strengthening gussets ensures relay stays mounted securely, even through vibration, heat and wire tension.
Small mounting footprint is great for confined install spaces where
space is at a premium.
Flat Blade Connectors
Shielded dual 6.3 x .03mm flat male terminal connectors allows for quick, secure and easy control wire connections.
Integrated divider tab design and varied mounting height input/output pads provides protection against accidental contact shorts.
