Applications / Problems This Solves
Supports Multiple Engines or Independent Charge Systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
LED STATUS DISPLAY
Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
3-POSITION MANUAL OVERRIDE
Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
40 CIRCUIT LABEL SHEET INCLUDED
Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
PROTECTIVE COVER INCLUDED
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
XD Series Related Options
Intuitive to use front facing yellow manual override knob makes manual control easy but if it's not needed, ask about our lever-free models!
Flexible install wiring options with either tinned wires or optional Deutsch DTM compatible plug that provides optimal sealed protection.

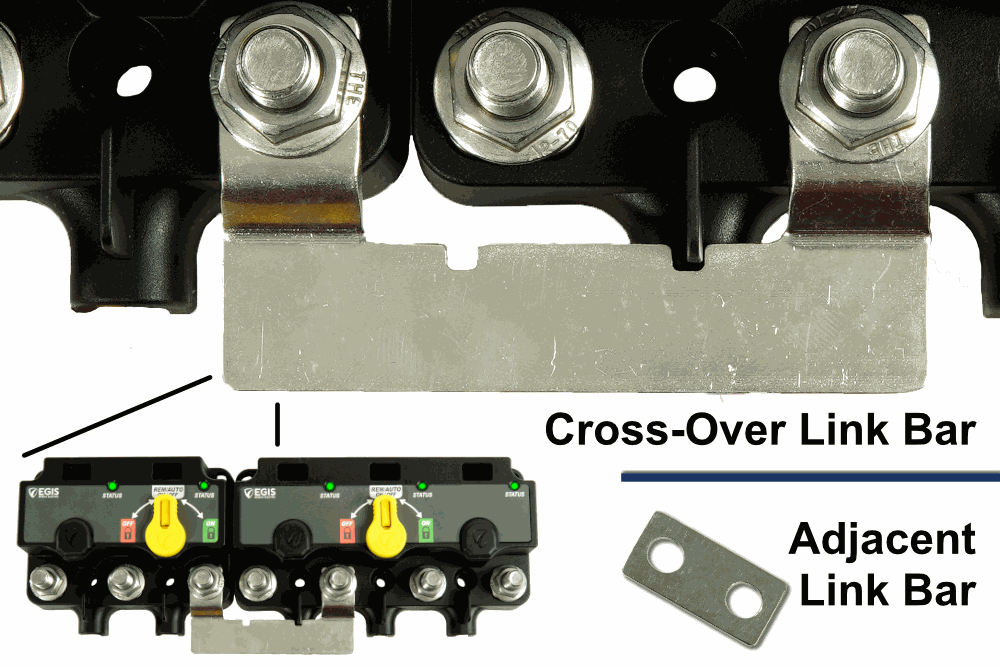

Save install space by linking XD Relays together for even more capability with our optional 8790 and 8791 Links Bars.
