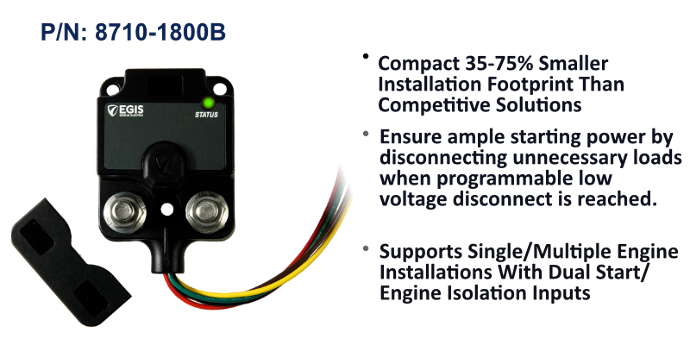

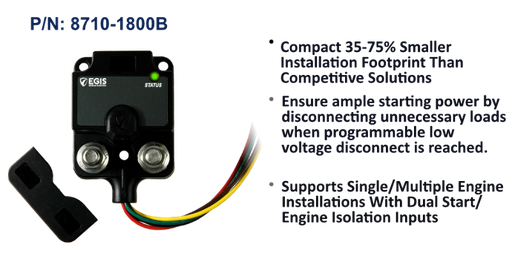

XD Single - Programmable LVD - Tinned Wires, Bulk Pack

    184.10 184.1 USD 184.10

    184.10

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

    Ensure ample starting power by disconnecting unnecessary loads when programmable low voltage disconnect is reached. This can eliminate weak start or no start conditions due to exhausted main batteries.


    Product Overview Video




    Feature Summary

    Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

    Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

    Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

    90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

    Information Sheet


    .Step File

    TOTAL CONTINUOUS
    CURRENT (AMPS)

    500

    MAX CRANKING
    CURRENT (AMPS)

    1500

    MECHANICAL SWITCHING LIFE
    1,000,000 Cycles

    VOLTAGE RANGE
    (V DC)

    8 - 36

    OFF-STATE CURRENT DRAW (mA)
    1.3

    Social Media

     Like Us

    Focal Features

    LED STATUS DISPLAY

     Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED

    40 CIRCUIT LABEL SHEET INCLUDED

    Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

    PROTECTIVE COVER INCLUDED

    Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

    STAINLESS HARDWARE

    Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

    PROGRAMMABLE

    Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.

    SMALLER FOOTPRINT

    XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

    INTEGRATED VENT

    High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

     XD Series Related Options

    Manual Override

    Intuitive to use front facing yellow manual override knob makes manual control easy but if it's not needed, ask about our lever-free models!

    Wire/Connector

    Flexible install wiring options with either tinned wires or optional Deutsch DTM compatible plug that provides optimal sealed protection.

    Link Bars

    Save install space by linking XD Relays together for even more capability with our optional 8790 and 8791 Links Bars.

    Single/Dual/Triple

    Available in single/dual/triple circuit configurations with a wide variety of options: manual override, relay functions, ACR, or remote battery disconnect.
