Description

Applications / Problems This Solves

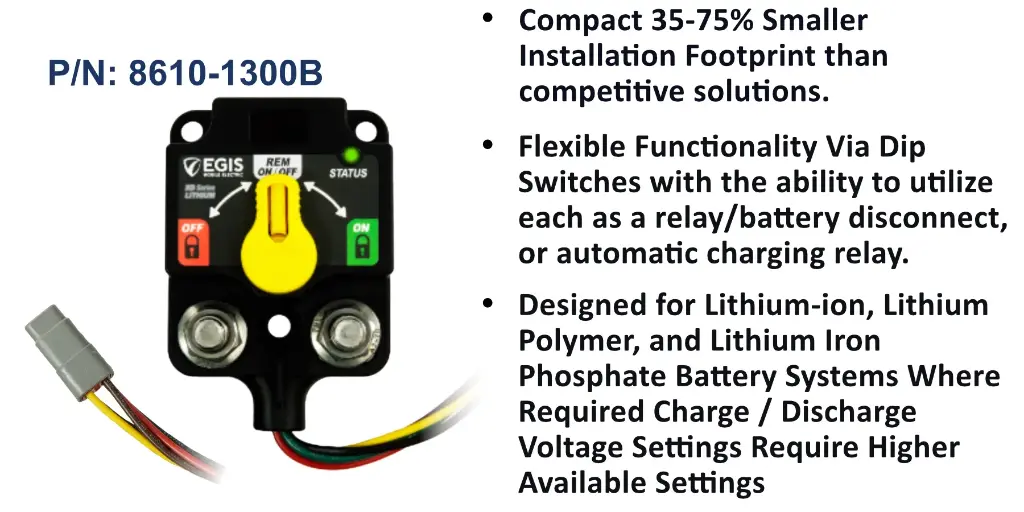

Lithium Battery Systems Capable where required charge/discharge voltage settings require higher available settings.

Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.

Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.

Feature Summary

Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Information Sheet

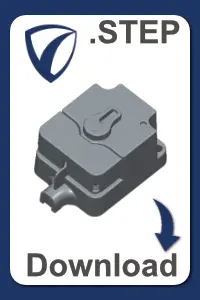

STEP File

Social Media

Follow Us

Subscribe

Total CONTINUOUS
CURRENT (AMPS)
500

MAX cranking current (amps)
1,500

mechanical life switching
1,000,000 Cycles

voltage range
8 Vdc-36 Vdc

standby current
1.3 mA

state change current

5A @12V

3A @24V

Focal Features

LED STATUS DISPLAY

Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED

STAINLESS HARDWARE

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

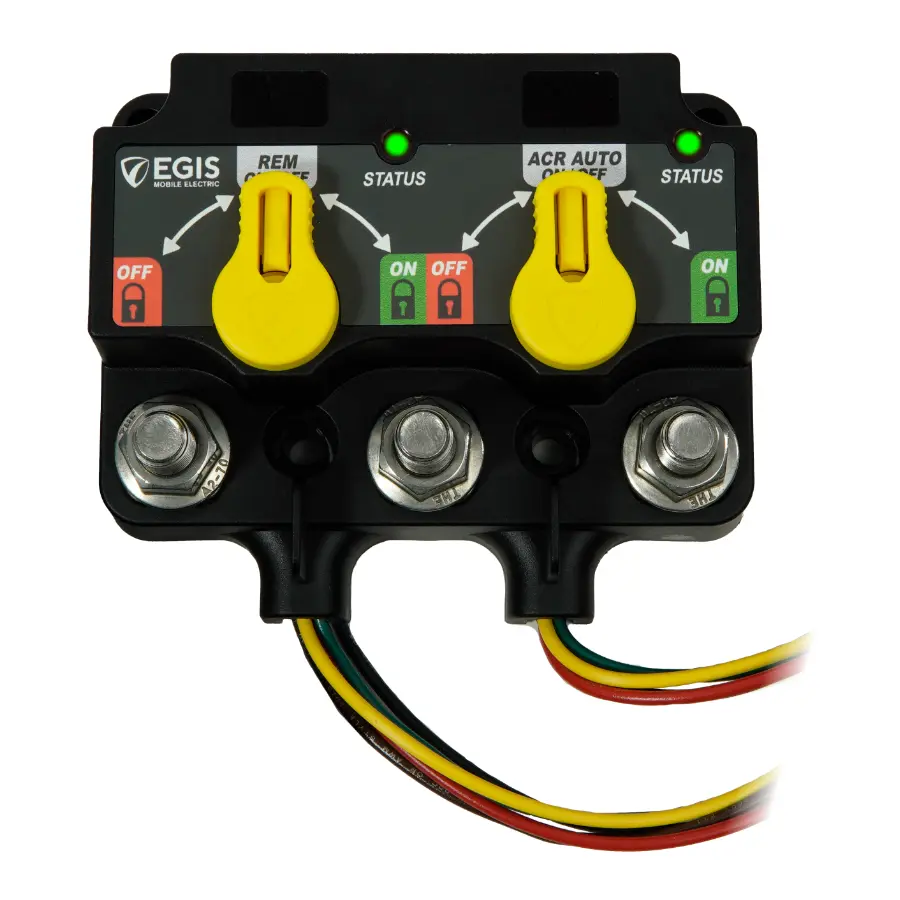

3-POSITION MANUAL OVERRIDE

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 CIRCUIT LABEL SHEET INCLUDED

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

PROTECTIVE COVER INCLUDED

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

PROGRAMMABLE

Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.

SMALLER FOOTPRINT

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

INTEGRATED VENT

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

TOTAL CONTINUOUS
CURRENT (AMPS)
500

MAX CRANKING
CURRENT (AMPS)
1500

MECHANICAL SWITCHING LIFE
1,000,000 Cycles

VOLTAGE RANGE
(V DC)
8 - 36

OFF-STATE CURRENT DRAW (mA)
1.3

STATE CHANGE CURRENT
5A @ 12 Vdc
3A @ 24 Vdc
