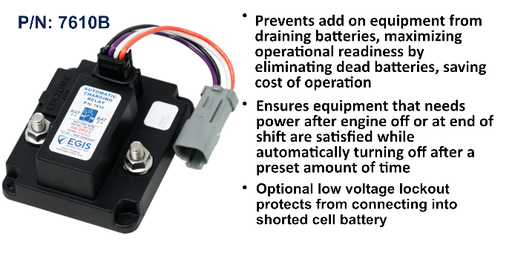

TH Series 12V Automatic Charging Relay (ACR), 160 A, Bulk

    130.78 130.78 130.78 USD

    130.78

    This combination does not exist.

    Add to Cart

     Find Distributors                      Local Sales Reps


    For Direct OEM/Distributor Pricing, Contact Us At: [email protected]
    Shipping: 2-3 Business Days

     Description

    Applications / Problems This Solves

    Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

    Supports Multiple Engines or Independent Charge Systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.

    Protects Electrical System Cascading Faults with optional lock-out from closing if one terminal is connected to a battery with a shorted cell.

    Accessory Products

    Feature Summary

    Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

    Simple & Robust Installation:   Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness

    Start Assist input option to ensure maximum cranking amps available by allowing manually connecting of batteries via remote switch.

    Bullet-proof Construction:  Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.

    Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see example)

     Focal Features

    TOP SIDE DIP SWITCHES

    Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.

    STAINLESS STEEL SELF-LOCKING HARDWARE

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.

    INTEGRAL I/O CONNECTOR

    Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.

    CONNECTION OPTIONS

    Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)





    EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS)

    Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.

    LED DIAGNOSTICS

    Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.
