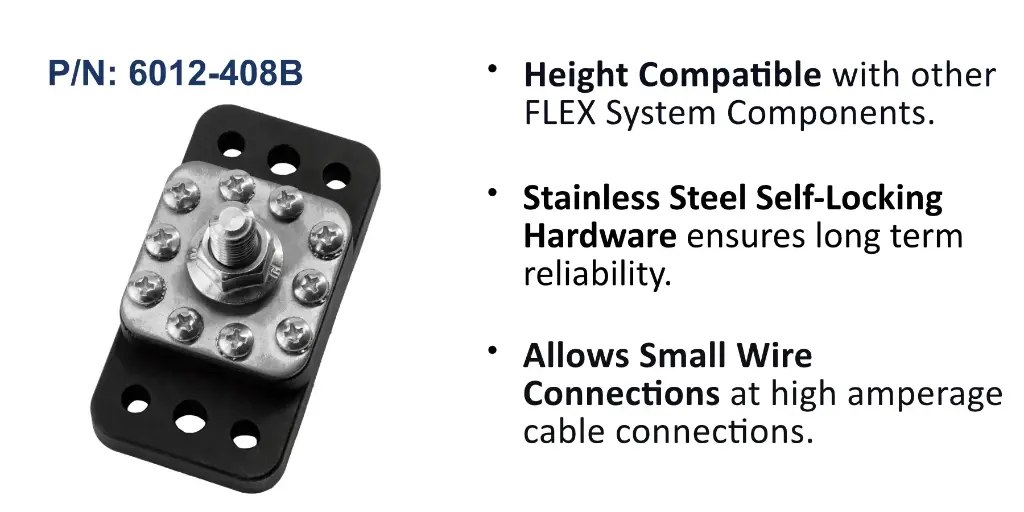

Power Post Plus, M10(3/8") Post + 10 Circuits (M4/#8), Bulk
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Flex System Height Compatible allows easy busbar connection to other Flex System components.
Easily Connects with high and low amperage cables.
Information Sheet
Feature Summary
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Tin Plated Copper Busbar deliver superior electrical performance with minimal voltage drop.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
4 Year Warranty: We stand behind our product's ability to meet your needs.
MAX VOLTAGE
(VDC)
80
MAXimum Amperage
Based On Attached Cables
Base material
Nylon 6 30% Glass-Filled
Flex system height compatible?
Yes
M10 (3/8") Recommended Torque
120 in-lbs (13.6 N-m)
Mounting Holes
4X #10 (M5) & 2X #14 (M6)
Focal Features
Ease Of Installation
Secure mounting with precise 4x #10 (M5) & 2x #14 (M6) mounting holes.
Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Flex System Compatible
Easy busbar connection with other Flex System Components via height compatible interconnected busbars.
Robust Performance
Tin Plated Copper Busbars ensure superior electrical performance with minimal voltage drop.
