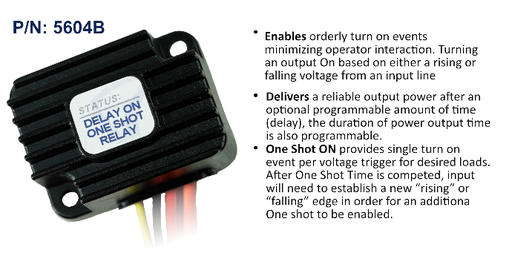

PT2 - On Delay One Shot Timer 30 A / 12 V, Bulk

    $ 94.80 94.8 USD $ 94.80

    $ 94.80

    This combination does not exist.

    ​ Find Distributors                      ​Local Sales Reps


    For Direct OEM/Distributor Pricing, Contact Us At: ​sales@egismobile.com
    Shipping: 2-3 Business Days

     Description

    Applications / Problems This Solves

    Enables orderly turn on events minimizing operator interaction. Turning an output On based on either a rising or falling voltage from an input line

    Delivers a reliable output power after an optional programmable amount of time (delay), the duration of power output time is also programmable.

    High Amperage design lessens the need for additional relays and complicated wiring.

    One Shot ON provides single turn on event per voltage trigger for desired loads. After One Shot Time is competed, input will need to establish a new “rising” or “falling” edge in order for an additional One shot to be enabled.

    Product Overview Video




    Feature Summary

    Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).

    Simple & Robust Installation:   Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection.

    Adjustable Time Delay Before Output Turns ON (0 sec - 30 sec) allows for flexibility in system implementation to meet specific timing requirements.

    Diagnostic Feedback: via on-board multi-color LEDs.

    Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection

    .STEP File

    Social Media

     Like Us


     Follow Us

     Subscribe

    CONTINUOUS
    CURRENT (AMPS)
    30

    Output On Duration
    (DIP SWITCH)
    1 s - 30 s

    OFF-STATE
    CURRENT DRAW (mA)
    1.3

    Operating  CURRENT DRAW (mA)

    15

    OVER-VOLT PROTECTION (VDC)
    17

    VOLTAGE RANGE
    (VDC)
    8-18

     Features

    Local LED Indicator

    Provides diagnostic feedback for status of output and pending OFF event for time, temperature, or voltage reasons.

    Sealed Enclosure

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    Programmable ON Time Delay

    Set time delay between registering a trigger signal and the output of device with integrated dip switches.

    Self-Protected

    Integrated fusing for short circuit and over-current, as well as integral over-temperature shutdown protection

    Cross-Linked Wire

    Provides optimal protection against wire chaffing and installation in high temperature environments

    Harsh Environment Ready

    Constructed of high temp materials allows installation anywhere on vehicle/vessel.

    Compact Footprint

    Small size makes it great for installations where space is at a premium.

    Flying Wires

    16" Fused and 18" control wires provides installation flexibility allowing for install in hard-to-reach areas.
