Description
Applications / Problems This Solves

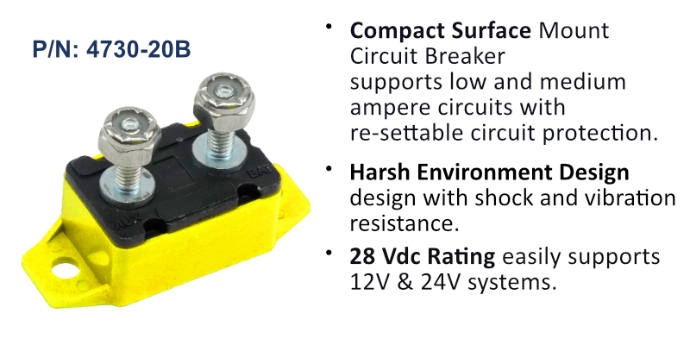

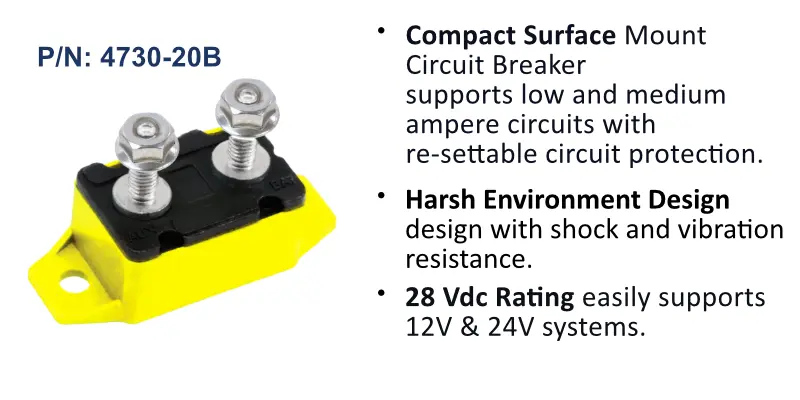

Compact Surface Mount Circuit Breaker supports low and medium ampere circuits with re-settable circuit protection.
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Ignition Protected safe for installation in closed compartments with potential explosive gases
Weather Resistant Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
Feature Summary
Manual Reset - Type III maintains support easy re-set of power after potential faults are cleared.
28 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
Optional Protective Cover provides protection from inadvertent shorts from circuit breaker studs to other positive studs or ground points.
4 Year Warranty: We stand behind our product's ability to meet your needs.
Information Sheet
STEP File Download
CONTINUOUS
CURRENT (AMPS)
20
MAX VOLTAGE
(VDC)
28
INterrupt Current @ 12Vdc (Amps)
2,500
INTERRUPT CURRENT @ 24VDC (AMPS)
1,500
Operation Type
Type III Manual Reset
INGRESS PROTECTION RATING
IP66
Focal Features
Easy Reset
Ensures Quick Resetting of Circuit Breaker After Potential Faults Are Cleared.
Locking Hardware
Anti-rotation & Corrosion Resistant Hardware Ensure Long Service Life In Harsh Environments.
Reinforced Mounting
Robust Mounting Tab Ensures Secure Surface Mount
Optional Protective Cover
Provides Protection From Inadvertent Shorts From Circuit Breaker Studs to Other Positive Studs or Ground Points. (P/N 8031B)
