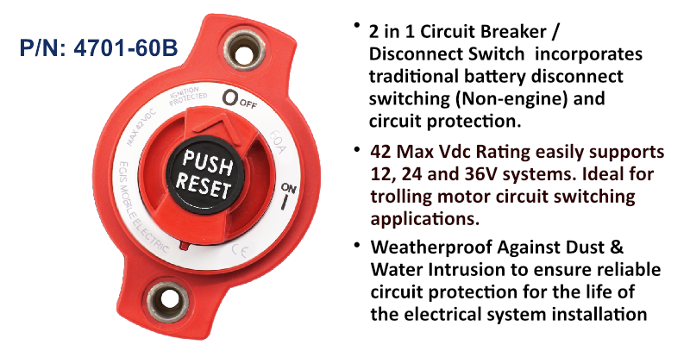

Mini Breaker Disconnect Switch, 60 A, Panel Mount, Bulk Pack

    38.00 38.0 USD 38.00

    38.00

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.


    Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.

    Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.

    Feature Summary

    Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

    42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.

    High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

    High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

    4 Year Warranty: We stand behind our product's ability to meet your needs.

    Information Sheet

    STEP File


    CONTINUOUS
    CURRENT (AMPS)

    60

    MAX VOLTAGE
    (VDC)

    42

    CE MArked


    Yes

    INTERRUPT CURRENT @ 14 VDC (AMPS)
    3,000​

    Cycle Switching Endurance
    3,000

    INGRESS PROTECTION RATING
    IP66

    Focal Features

    Easy ON/OFF Rotary Switch

    Easy to operate and visually recognize switch position.

    Stainless Steel Self- Locking Hardware

    Corrosion and vibration resistant for harsh environment applications.

     Weatherproof Construction

    Sealed against dust and moisture penetration. High temp rated for all installation locations.  ​

     Compact Size

    Fit more circuit switching / protection on  a smaller panel!

    Made in the USA of high quality components.

    Ignition Protected

    Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
