Description
Applications / Problems This Solves

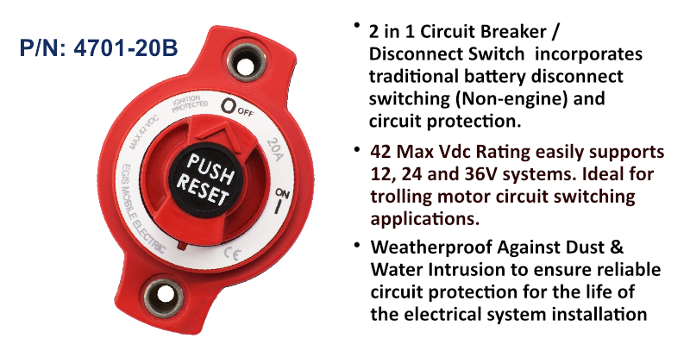

Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.
Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.
Feature Summary
42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
20
MAX VOLTAGE
(VDC)
42
CE MArked
Yes
INTERRUPT CURRENT @ 14 VDC (AMPS)
3,000
Cycle Switching Endurance
5,000
INGRESS PROTECTION RATING
IP66
Focal Features
Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistant for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching / protection on a smaller panel!
Made in the USA of high quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
