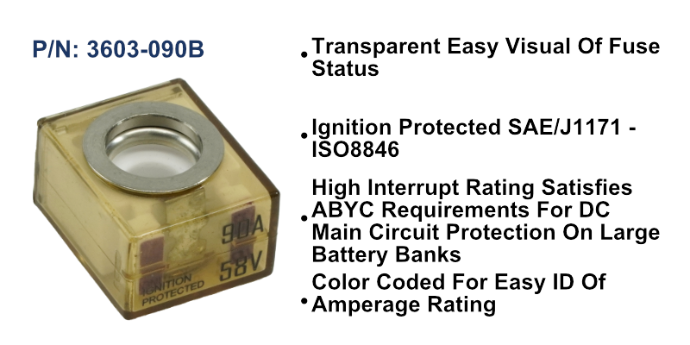

Description
Applications / Problems This Solves
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Feature Summary
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
90
MAX VOLTAGE
(VDC)
58
INTERRUPT Rating @ 14 VDC (AMPS)
10,000
INTERRUPT Rating @ 48 VDC (AMPS)
5,000
INTERRUPT Rating @ 58 VDC (AMPS)
2,000
INgress Protection
IP66
Focal Features
Color Coded
For Easy Amperage Identification
Compatibility
With Egis Mobile Electric Single and Dual Terminal Fuse Blocks
Wide Amperage Ranges
Available 30 Amp - 300 Amp
Marine Grade
Corrosion Resistant Construction, Made With Robust Materials
