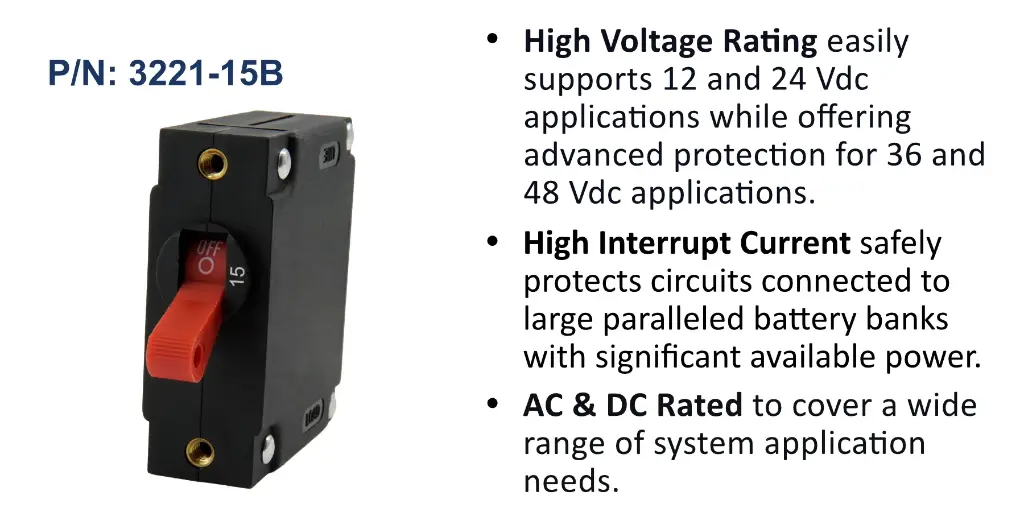

A Series Red Toggle Panel Mount Circuit Breaker, Single Pole AC/DC, 15 Amp, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction..
High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power
Information Sheet
Feature Summary
AC & DC Rated to cover a wide range of system application needs.
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws .
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws .
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
15
MAX VOLTAGE
277 Vac / 80 Vdc
regulatory compliance
UL 1077
Electrical Endurance @ Rated current
6,000 Cycles
Interrupt Capacity
5kA / 277Vac, 1.5kA / 80 Vdc
CE Marked?
Yes
Focal Features
Ease Of Installation
Secure mounting with precise #6-32 mounting threads.
Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Visual Indication
Via position of toggle actuator and ON / OFF marking.
Optional Accessories Available
Toggle Guard and Panel Plugs pair with A-series circuit breakers to improve protection.
