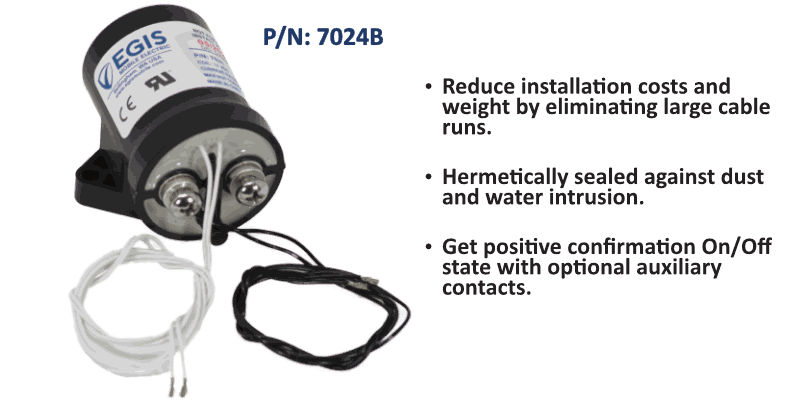

Sealed Contactor, 100A /12 V / Aux Contacts Side Mount

    76.00 76.0 USD 76.00

    76.00

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     DESCRIPTION

    Applications / Problems This Solves

    Reduce Installation Costs and Weight by eliminating large cable runs to manual switches through robust remote switching of high ampere engine and auxiliary loads

    Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust and moisture.

    High Contact Voltage Rating
     easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.

    Get Positive Confirmation of Relay On/Off State
     with optional auxiliary contacts that support remote status indication.

    Feature Summary

    Ignition Protected safe for installation in closed compartments with potential explosive gases

    High Electrical Switching Endurance

     delivers 6,000 cycles at 100A / 350V,  100,000 cycles at 100A / 14V

    High Interrupt Current Capability

    safely able to open in a locked starter situation (up to  1,250 A @ 14 Vdc)

    Bullet-proof Construction:
     Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.

    4 Year Industry Leading Warranty


     PRIMARY SPECS

    CONTINUOUS
    CURRENT (AMPS)

    100
    OPERATION CONTROL VOLTAGE
    8-16 Vdc
    INGRESS PROTECTION

    IP67 / IP69K
    IGNITION PROTECTION

    ISO-8846 / UL 1500
    MIN OPERATE TEMP (DEG C)
    -40
    MAX OPERATE TEMP (DEG C)
    85

     DOWNLOADS

    REFERENCE INFO

    Sales Sheet, Specification & Installation Information

    STEP File
    INSTALLATION

    Sales Sheet, Specification & Installation Information
    ARTICLES
    Check back here for product related articles
    MARKETING MATERIALS

    Sales Sheet, Specification & Installation Information
    DIAGNOSTICS
    See FAQ section below for further assistance

     FOCAL FEATURES

    SEALED ENCLOSURE

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    18-8 STAINLESS STEEL SELF LOCKING HARDWARE

    Resists corrosion and ensure long term connection reliability with premium hardware.

    EASY MOUNTING

    Reinforced mounting holes provide secure installation and easy attachment for the installer.

    REMOTE STATUS SUPPORT

    Optional auxiliary contacts that support remote status indication.
