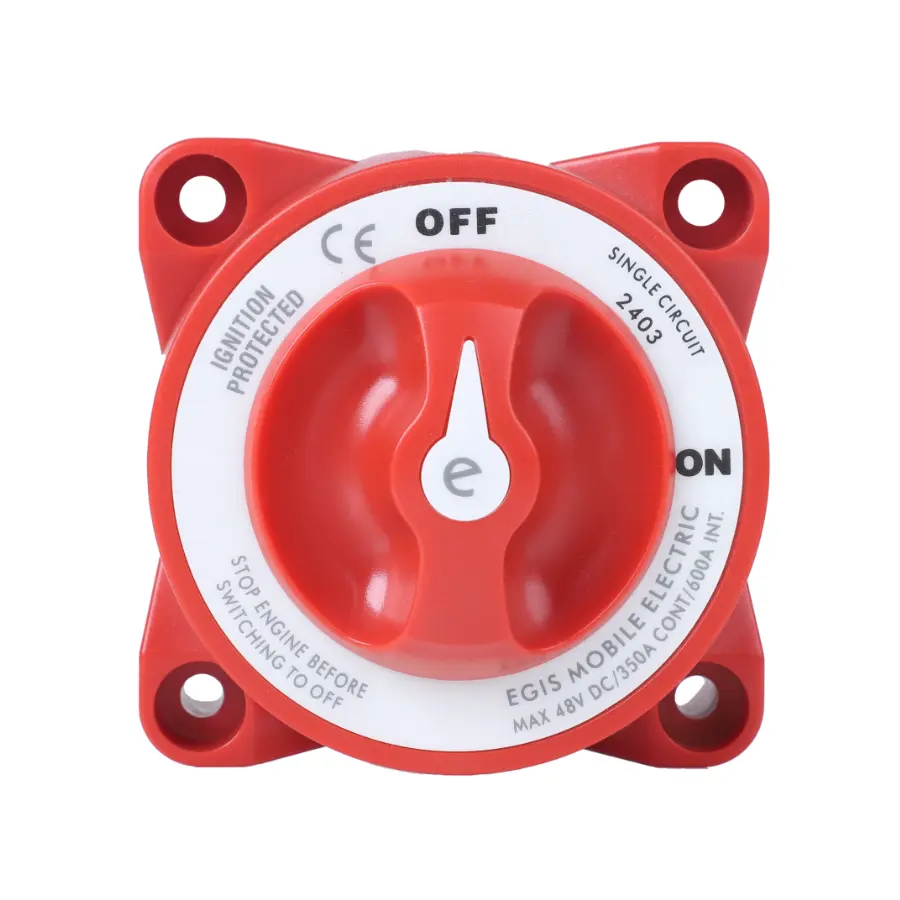

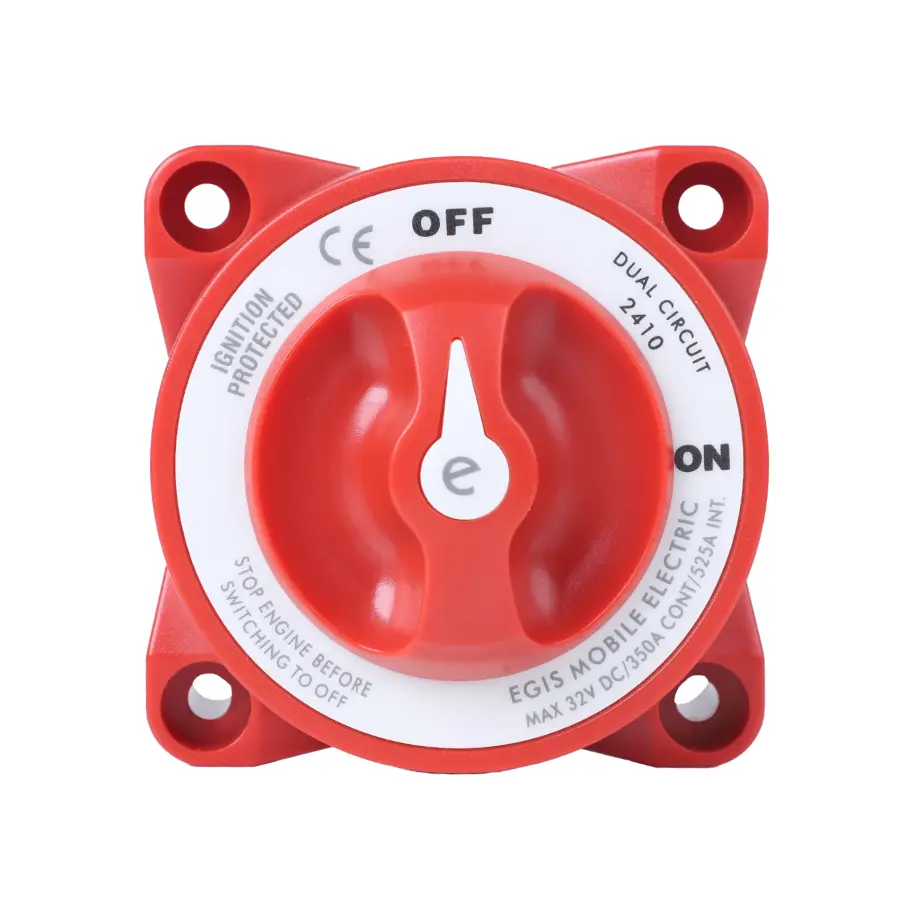

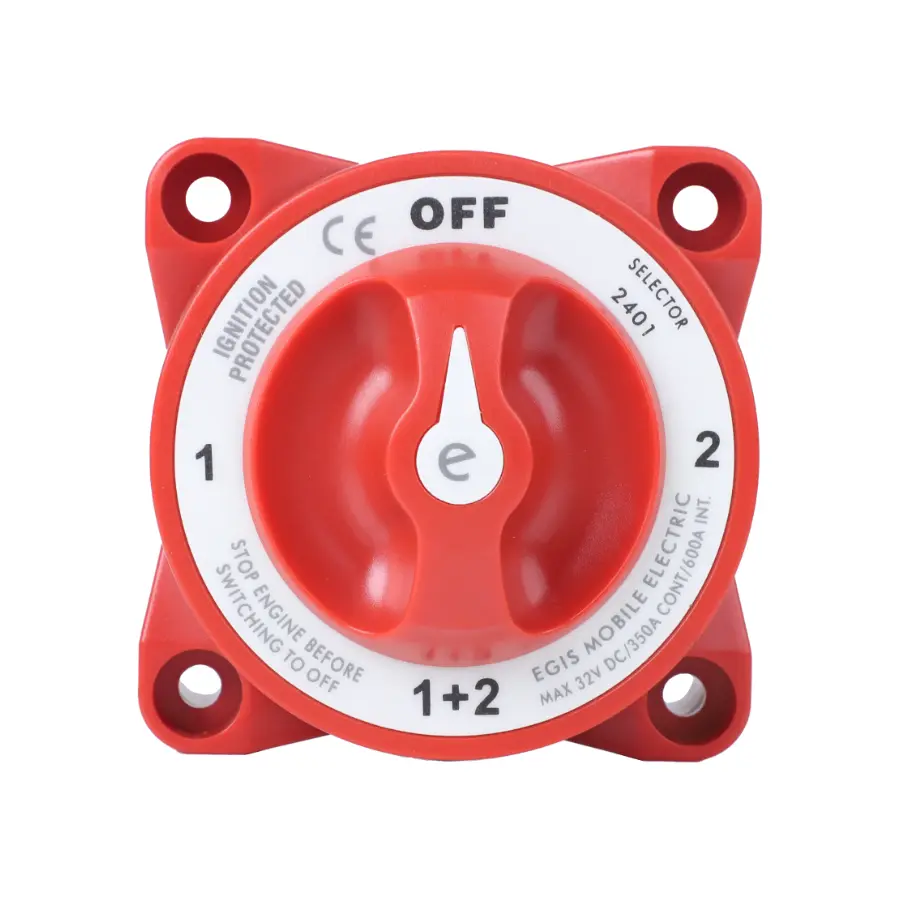

e Series Battery Disconnect Switches
Robust Construction
IP66 Weatherproof
32V-48V - Voltage Rating
350A Continuous Current
Ignition Protected
CONTINUOUS
CURRENT (AMPS)
350
MAX VOLTAGE
(VDC)
32-48
Live Switching Rating (Amps)
25
Mounting Hole Screws
1/4" (M6)
INGRESS PROTECTION RATING
IP66
Ignition Protected?
Yes
Description
Applications / Problems This Solves
Isolate And Connect multiple high amperage loads.
Variety Of Installation Types: surface and rear panel mounting options.
Drop In Replacement: directly replaces legacy OEM products.
Feature Summary
32 Vdc - 48 Vdc Rating
:
easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
Serrated Flange Lock Nuts
improves resistance to cable terminal loosening in high-vibration environments.
4 Year Warranty:
We stand behind our product's ability to meet your needs
.
Documentation & CAD Files
Information Sheet
