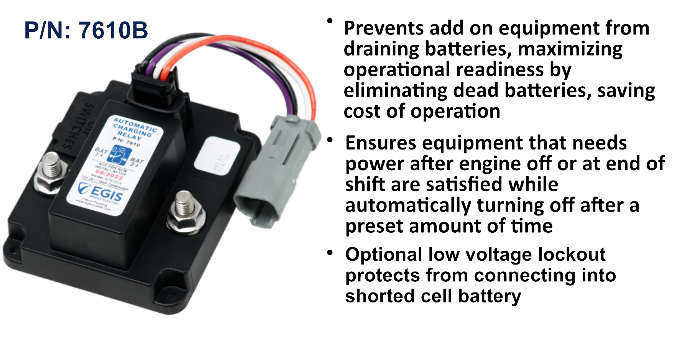

TH3 -12V Automatic Charging Relay (ACR), 160 A, Bulk

$ 146.50 146.5 USD $ 146.50

$ 146.50

This combination does not exist.

Find Distributors Local Sales Reps

For B2B Pricing, Contact Us At: sales@egismobile.com

Description

Applications / Problems This Solves

Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Supports Multiple Engines or Independent Charge Systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.

Protects Electrical System Cascading Faults with optional lock-out from closing if one terminal is connected to a battery with a shorted cell.

Accessory Products

ON/OFF KILL SWITCH - BUSBAR FOR RT FUSE BLOCKS
RT SERIES 6 POSITION FUSE BLOCK (24 HR CIRCUITS)

Feature Summary

Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness

Start Assist input option to ensure maximum cranking amps available by allowing manually connecting of batteries via remote switch.

Bullet-proof Construction: Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.

Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see example)

CONTINUOUS
CURRENT (AMPS)
160

VOLTAGE Range
(VDC)
8-18

Off State Current Draw ma
1.3

INTERRUPT CURRENT (AMPS)
240

ACR Closing Voltage (vdc)
12.9-13.6

ACR OPening VOLTAGE (VDC)
12.1-12.8

Step File

Egis Mobile Electric YouTube Page

Egis Mobile Electric Facebook Page

Egis Mobile Electric LinkedIn Page

Installation

Diagnostics

Applications

Egis Mobile Electric YouTube Channel

Egis Mobile Electric LinkedIn Page

Egis Mobile Electric Facebook Page

Focal Features

TOP SIDE DIP SWITCHES

Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.

STAINLESS STEEL SELF-LOCKING HARDWARE

100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.

INTEGRAL I/O CONNECTOR

Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.

CONNECTION OPTIONS

Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)

EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS)

Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.

LED DIAGNOSTICS

Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.
