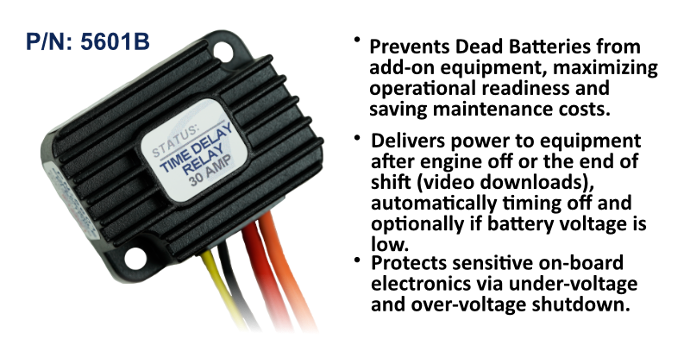

PT2 - TDR 30 A / 12 V, Bulk
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Delivers power to equipment after engine off or the end of shift (video downloads), automatically timing off and optionally if battery voltage is low.
Protects sensitive on-board electronics via under-voltage and over-voltage shutdown.
Feature Summary
Simple & Robust Installation: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection.
Adjustable OFF Time Delay: 15 minutes to 8 hours + 5 sec test mode
Diagnostic Feedback: via on-board multi-color LEDs.
Egis Mobile Electric LinkedIn Page
Egis Mobile Electric Facebook PageFeatures
Local LED Indicator
Provides diagnostic feedback for status of output and pending OFF event for time, temperature, or voltage reasons.
Sealed Enclosure
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Programmable Time Delay
Easy to set dip switch allow user adjustability from 15 minutes to 8hrs, along with convenient 5 sec test feature.
Self-Protected
Integrated fusing for short circuit and over-current, as well as integral over-temperature shutdown protection
Cross-Linked Wire
Provides optimal protection against wire chaffing and installation in high temperature environments
Harsh Environment Ready
Constructed of high temp materials allows installation anywhere on vehicle/vessel.
Compact Footprint
Small size makes it great for installations where space is at a premium.
Flying Wires
16" Fused and 18" control wires provides installation flexibility allowing for install in hard-to-reach areas.
