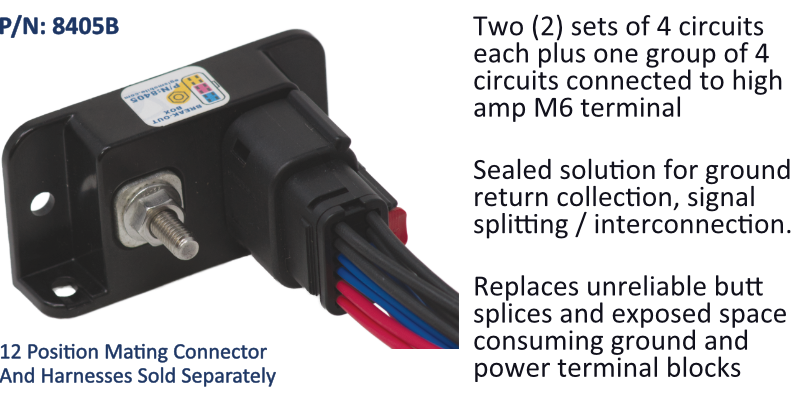

Sealed Break Out Box, 3x4 Circuits + M6 I/O
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
DESCRIPTION
Applications / Problems This Solves
Improves robustness of ground return connections and wire to wire connections that are otherwise exposed to corrosion / shorting with busbars and terminal blocks.
Eliminates unreliable butt splice connections and allows for removable pull and test of circuit for system inspection and diagnosis while allowing for sealed connections.
Reduces the mounting space required for busbar and wire connections with a very compact footprint and two mounting orientations, increasing potential locations for installation.
Eliminates unreliable butt splice connections and allows for removable pull and test of circuit for system inspection and diagnosis while allowing for sealed connections.
Reduces the mounting space required for busbar and wire connections with a very compact footprint and two mounting orientations, increasing potential locations for installation.
Accessory Products
Feature Summary
Ignition Protected: Safe to install in enclosed spaces on gasoline powered vessels and vehicles.
Simple & Robust Installation: Sealed plug reduces installation time, overall costs and points of potential failure. Optional output bus bar easily connects RT or CT Fuse Block families.
Bullet-proof Construction: Sealed unit (IP67 / IP6K9K), high temperature materials allow mounting anywhere on vehicle or vessel.
Two Mounting Orientations provide optimal flexibility for installation locations.
Optional Deutsch DT/AT Connector Output contact us for more information.
Simple & Robust Installation: Sealed plug reduces installation time, overall costs and points of potential failure. Optional output bus bar easily connects RT or CT Fuse Block families.
Bullet-proof Construction: Sealed unit (IP67 / IP6K9K), high temperature materials allow mounting anywhere on vehicle or vessel.
Two Mounting Orientations provide optimal flexibility for installation locations.
Optional Deutsch DT/AT Connector Output contact us for more information.
PRIMARY SPECS
max total
CURRENT (AMPS)
200
CURRENT (AMPS)
200
max terminal current
(amps)
22
(amps)
22
cable size for max current (AWG)
2/0
2/0
max cable
size (AWG)
4/0
size (AWG)
4/0
operating temp range (deg c)
-40 /125
-40 /125
VOLTAGE RANGE
(Vdc)
8 - 36
(Vdc)
8 - 36
DOWNLOADS
ARTICLES
Check back here for product related articles
DIAGNOSTICS
See FAQ section below for further assistance
FOCAL FEATURES
Horizontal Mounting
For spaces where minimum height from mounting surface is available.
Vertical Mounting
Provides minimal mounting footprint, for spaces where multiple blocks are mounted adjacent to each other
Harsh Environment Rated
Stainless steel hardware, tin plated copper alloy, sealed enclosure and connector
Internal Connections
High-Amp M6 terminal provides ability to return ground or distribute positive power as needed.
