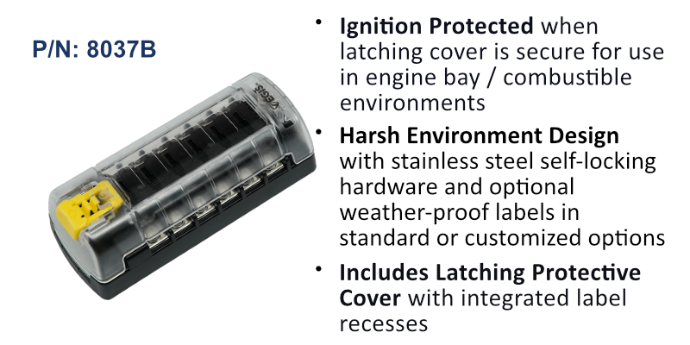

RT Fuse Block 6 Independent Circuits w/Cover, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Feature Summary
Robust Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
CONTINUOUS
CURRENT Per Circuit (AMPS)
30
Maximum Current (Entire Block) Amps
100
Nominal Voltage
12/24Vdc
MAX VOLTAGE
(VDC)
60
Hardware MAterial
Stainless Steel
Focal Features

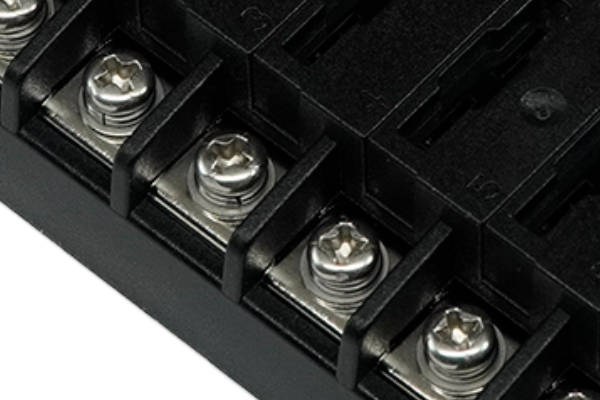

Stainless Steel Hardware
Self locking stainless steel attachment screws provides vibration resistant secure connections.

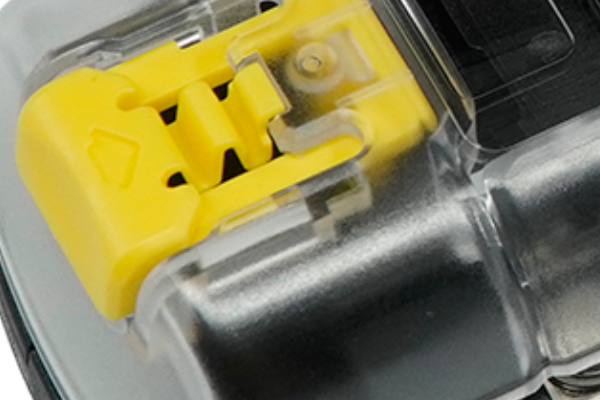

Easy To Use Latch
On the cover for easy fuse serviceability.

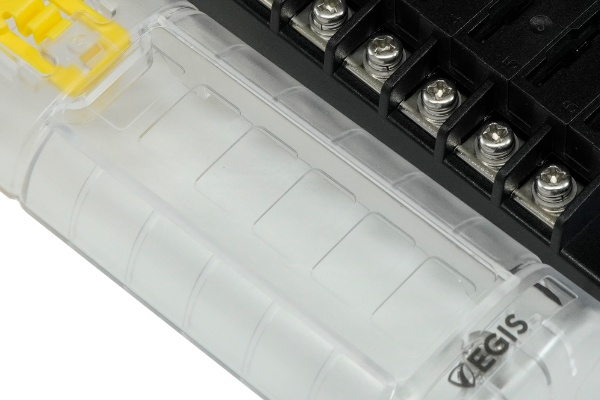

Protective Cover
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Labels Included
Circuit identification labels included for easy circuit/fuse diagnosis.
