Description
Applications / Problems This Solves

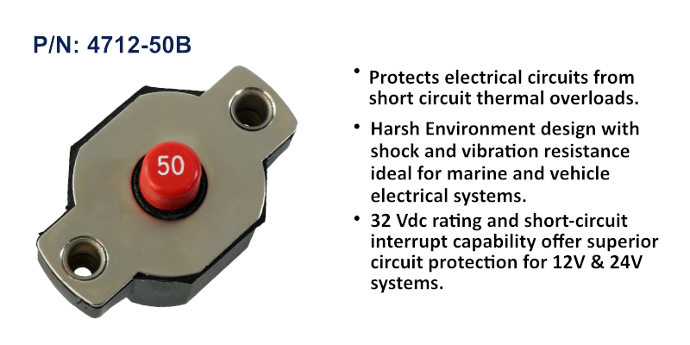

Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.
Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.
Feature Summary
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
32 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
Trip-Free Design cannot be forced on during fault condition.
Meets ABYC E-11 Interrupt Requirements
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
50
MAX VOLTAGE
(VDC)
32
CYCLING
ENDURANCE
100
INTERRUPT CURRENT @ 32 VDC (AMPS)
3,000
Trip Free Design?
Yes
INGRESS PROTECTION RATING
J1428
Focal Features
Compact Design
Easy to install in close proximity for maximum circuit protection panel density.
Locking Hardware
Anti rotation & corrosion resistant hardware ensure long service life in harsh environments.
10-32 Mounting Nut
Easily install breaker with preferred 10-10-32" threaded fastener.
