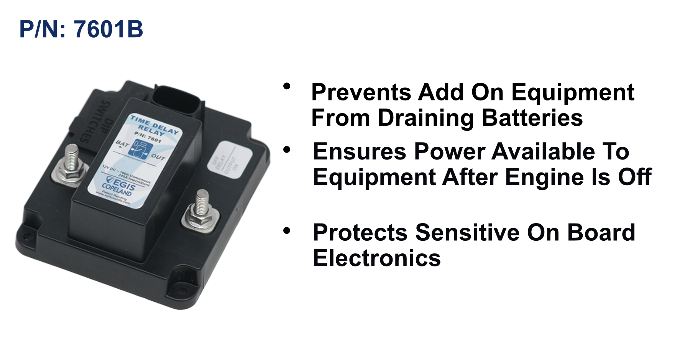

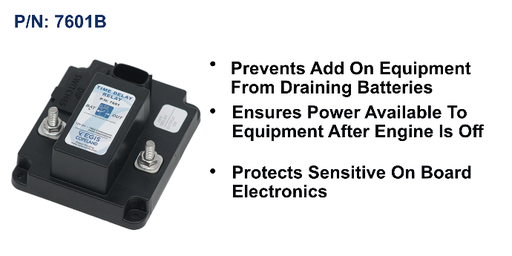

160 A Time Delay Relay (TDR), Bulk Pack

    146.50 146.5 USD 146.50

    146.50

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     DESCRIPTION

    Applications / Problems This Solves

    Prevents add-on equipment from draining batteriesmaximizing operational readiness by eliminating dead batteries, saving total cost of operation.

    Ensures power available to equipment after engine is off or at end of shift (video downloads) are satisfied while automatically turning off after a preset time or optionally if battery charge is low.

    Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.

    Accessory Products

    Feature Summary

    Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).

    Simple & Robust Installation:   Sealed plug with optional long wire leads. Single timer/relay device reduces installation time, overall costs and points of potential failure. Optional output bus bar easily connects RT or CT Fuse Block families.

    Adjustable OFF Time Delay: 15 minutes to 16 hours + 5 sec test mode

    Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection

    Start Isolation / Kill Switch control input option for service technicians, emergency OFF, or protecting sensitive add-on equipment from engine cranking voltage fluctuation.

    Flexible Control Options via Ignition Key, alternator voltage sense, or both.

     PRIMARY SPECS

    CONTINUOUS
    CURRENT (AMPS)

    160
    voltage range
    (v dc)

    8 - 18
    off-state current draw (mA)
    1.3
    intermittent current (amps)
    240
    Time Delay range settings (hr)
    0 - 16
    low voltage protection (v dc)
    11.0

     DOWNLOADS

    REFERENCE INFO

    Sales Sheet, Specification & Installation Information

    3D STEP CAD Model

    FOCAL FEATURES

    TOP SIDE DIP SWITCHES

    Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.

    STAINLESS STEEL SELF-LOCKING HARDWARE

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.

    INTEGRAL I/O CONNECTOR

    Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.

    HARNESS OPTIONS

    Harness w/2 feet ground/ignition wires included. Harnesses with additional outputs, longer wires, and Deutsch connectors available

    EASY INTEGRATION WITH CT FUSE BLOCKS

    Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.

    EASY INTEGRATION WITH RT FUSE BLOCKS

    Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.

    LED DIAGNOSTICS

    Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
