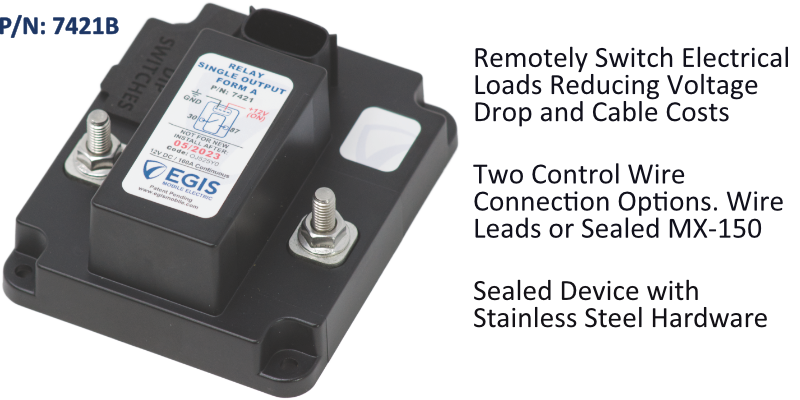

TH3 - Basic 160 Amp / 12V, Bulk Pack

    66.70 66.7 USD 66.70

    66.70

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     DESCRIPTION

    Applications / Problems This Solves

    Reduces Voltage Drop and Cost of Battery Cables by replacing mechanical battery switches with an electrical relay inline between a battery and the electrical loads.

    Supports Simple Battery Charge Management if connected to an engine ignition line. Can also support simple electrical system connect/disconnect when connected to ignition line.

    Extends TH Series Automatic Charging Relay Capability  to provide either incremental current carrying capacity or to connect and additional independent and isolated battery bank not connected to a charge source.

    Accessory Products

    Feature Summary

    Simple & Robust Installation: Sealed MX-150 plug/harness with 2 ft control wires included. Reduces install time/costs. Optional output bus bar provides simple and compact connection to RT or CT fuse block product families.

    Optional Deutsch DT/AT Connector Output supports an industry standard for marine and commercial vehicle. See P/N: 7421D for details.

    Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Stainless steel self-locking hardware

    Integral Diode Suppression reduces voltage spikes on control lines during switching

    Single or Dual Split Output Options provide flexibility for different electrical system requirements. See 7422B, 7422D, 7422-24B or 7422-24D for Dual output product versions.

     PRIMARY SPECS

    CONTINUOUS
    CURRENT (AMPS)

    160
    intermittent current (amps)
    240
    voltage range
    (v dc)

    8 - 18
    on state current draw @ 12V (mA)
    350
    max cable size
    (AWG)
    2/0
    Terminal stud torque (in-lb/N-m)
    80 / 9.1

     DOWNLOADS

    REFERENCE INFO

    Sales Sheet, Specification & Installation Information

    3D STEP CAD Model
    ARTICLES
    Check back here for product related articles
    INSTALLATION

    ales Sheet, Specification & Installation Information
    MARKETING MATERIALS

    Sales Sheet, Specification & Installation Information
    DIAGNOSTICS
    See FAQ section below for further assistance

    FOCAL FEATURES

    OPTIONAL DEUTSCH DT/ATSTYLE CONNECTOR PRODUCT

    Provides plug/play harness for marine and commercial vehicle applications. See P/N: 7421D for details

    STAINLESS STEEL SELF-LOCKING HARDWARE

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.

    INTEGRAL I/O CONNECTOR

    Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.

    HARNESS OPTIONS

    Harness w/2 feet ground/ignition wires included. Harnesses with longer wires, and Deutsch connectors available



    EASY INTEGRATION WITH CT FUSE BLOCKS

    Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.

    EASY INTEGRATION WITH RT FUSE BLOCKS

    Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.

     RELATED PRODUCTS

     FAQs

    This section is reserved for installation related questions & answers. For immediate assistance, please email:us at: support@egismobile.com
    This section is reserved for new or existing installation diagnostic related questions & answers. For immediate assistance, please email:us at: support@egismobile.com
    This section is reserved for general application related questions & answers. For immediate assistance, please email:us at: support@egismobile.com
