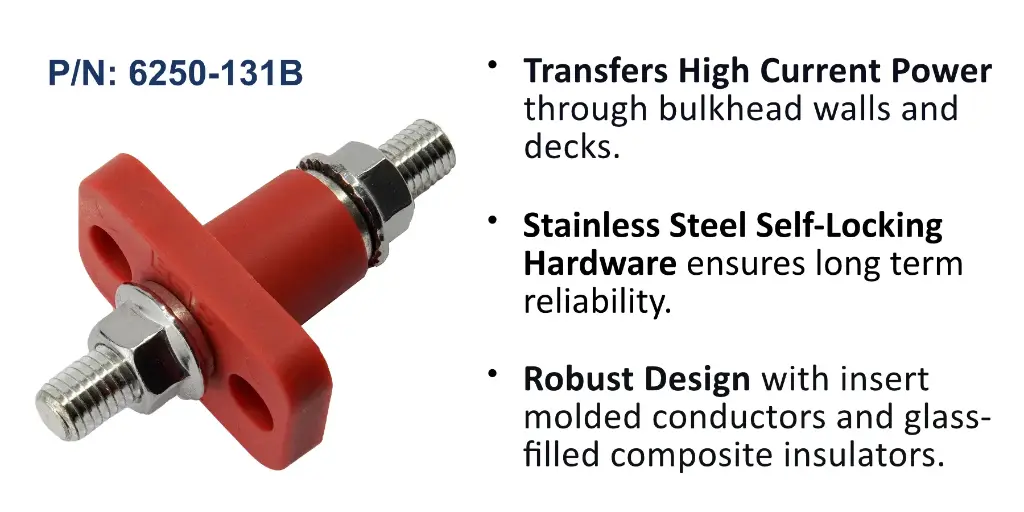

Feed Through Terminal 250A, Red, M8 (5/16"), Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Transfers High Current Power through bulkhead walls and decks. Base surface supports full sealing via bedding compound or customer supplied gasket.
Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
Information Sheet
Feature Summary
Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
IP66 / IP67 / IP6K9K Ingress Protection secures your electrical systems during harsh climates.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
IP66 / IP67 / IP6K9K Ingress Protection secures your electrical systems during harsh climates.
4 Year Warranty we stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
250
MAX VOLTAGE
(VDC)
80
Ingress Protection Rating
IP66, IP67, IP6K9K
Hardware material
18-8 Stainless Steel
Base material
Nylon 6 30% Glass-Filled
mounting Hole screw type
#10 Screws
Focal Features
Ease Of Installation
Secure mounting with precise #10 mounting screw holes.
18-8 Stainless Steel Hardware
Corrosion resistant hardware ensure long service life in harsh environments.
Self Locking Fittings
Superior vibration resistance while simplifying assembly process.
High Temperature Materials
Offers marine grade performance and long term connection reliability.
