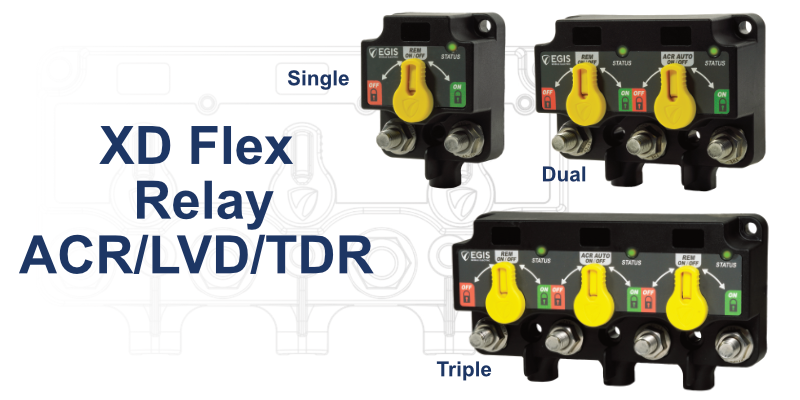

Available in Single, Double and Triple circuit variations. Each position in the flexible relay can be used as a normal 500A relay battery disconnect, an automatic charging relay, or even a low voltage disconnect. Also available with or without manual override knobs and you also have remote input through these wires that can be either pre-tinned wire leads or come with a sealed Deutsch DTM connector. Compact size and optional busbars keep installation size to a minimum without sacrificing features or reliability. Protective terminal cover also included which has label recesses making wire identification easy!

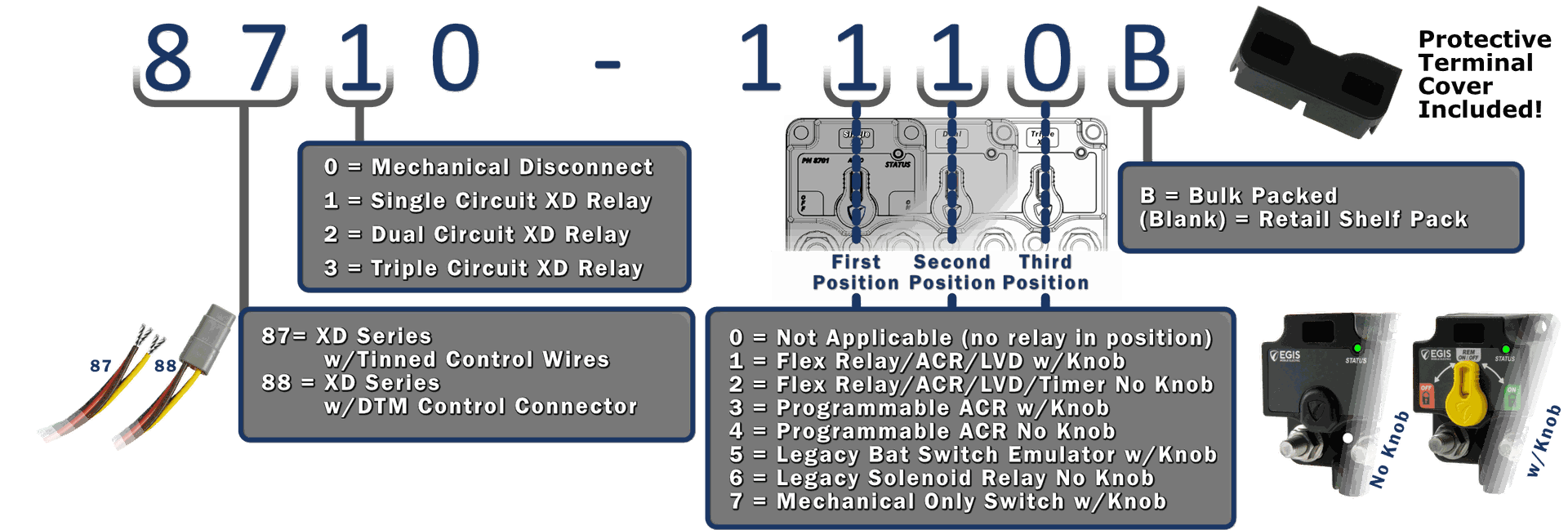

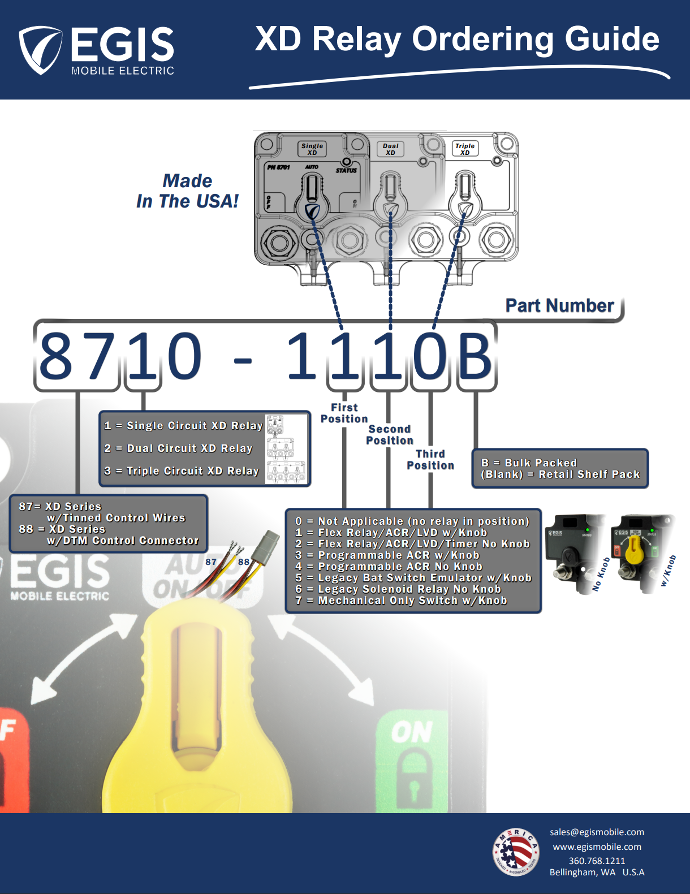

8710-1100 Single Circuit XD w/Knob - w/Tinned Wire
8710-1200 Single Circuit XD No Knob - w/Tinned Wire
8810-1100 Single Circuit XD w/Knob & Deutsch Connector
8810-1200 Single Circuit XD No Knob & Deutsch Connector
8820-1110 Dual Circuit XD w/Knob & w/Tinned Wire
8820-1110 Dual Circuit XD w/Knob & w/Tinned Wire
8730-1110 Triple Circuit XD w/Knob & Deutsch Connector
8830-1110 Triple Circuit XD w/Knob & w/Tinned Wire
8710-1300 Single Circuit ACR w/Knob & Tinned Wires
8710-1400 Single Circuit XD ACR No Knob & Tinned Wires
8810-1300 Single Circuit XD ACR No Knob & Deutsch Connector
8810-1400 Single Circuit XD ACR No Knob & Deutsch Connector

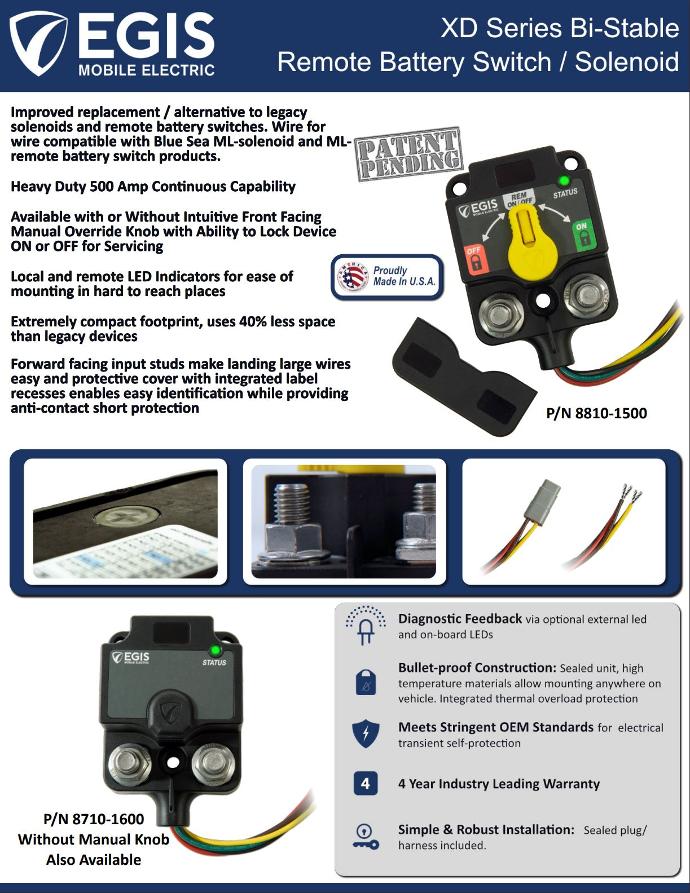

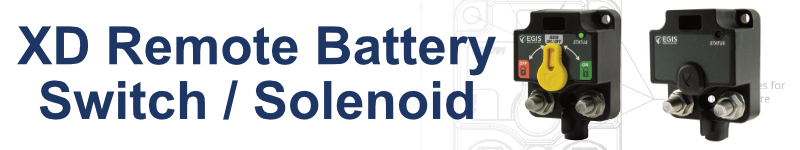

8710-1500 Single Circuit Remote Battery Switch w/Knob & Tinned Wires
8710-1600 Single Circuit XD Solenoid No Knob & Tinned Wires
8810-1500 Single Circuit XD Solenoid No Knob & Deutsch Connector
8810-1600 Single Circuit XD Solenoid No Knob & Deutsch Connector
XD Battery Switch
8700 Single Circuit XD 500 Amp Mechanical Disconnect / Battery Switch
Accessories
8790 Link Bus XD Relay
8791 Crossover Bus XD Relay
Label Sheet

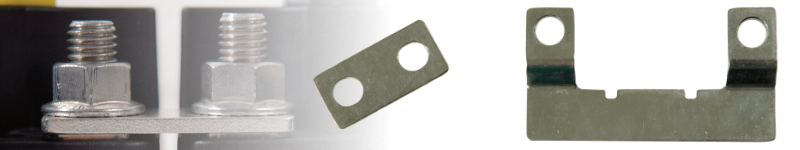

8790 Link Bus XD Relay
8791 Crossover Bus XD Relay
Label Sheet
Egis Mobile Electric LinkedIn Page
Egis Mobile Electric Facebook Page
XD Relay Industry Leading Features
LED STATUS DISPLAY
Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
3-POSITION MANUAL OVERRIDE
Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
40 CIRCUIT LABEL SHEET INCLUDED
Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
PROTECTIVE COVER INCLUDED
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
STAINLESS HARDWARE
Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
PROGRAMMABLE
Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
SMALLER FOOTPRINT
XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.
SINGLE/DUAL/TRIPLE
Available in single/dual/triple circuit configurations with a wide variety of options: manual override, relay functions, ACR, or remote battery disconnect.
INTEGRATED VENT
High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
MANUAL OVERRIDE
Intuitive to use front facing yellow manual override knob makes manual control easy but if it's not needed, ask about our lever-free models!
WIRE/CONNECTOR
Flexible install wiring options with either tinned wires or optional Deutsch DTM compatible plug that provides optimal sealed protection.

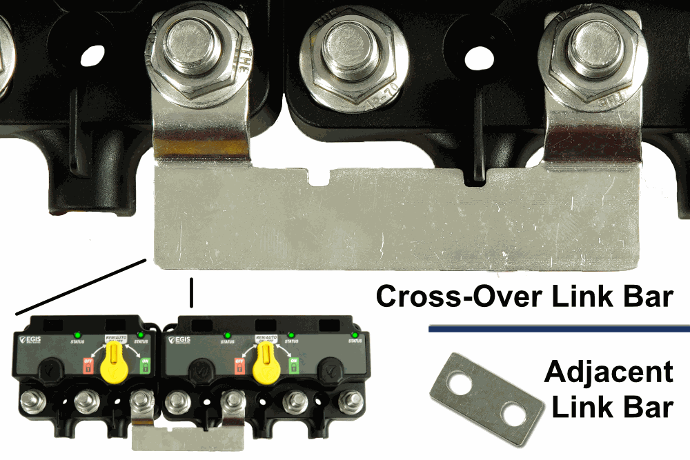

LINK BARS
Save install space by linking XD Relays together for even more capability with our optional 8790 and 8791 Links Bars.
