RT Fuse Block 6 Circuit, Bulk Pack

    20,20 20,20 20.2 USD


    Option nicht verfügbar

    This combination does not exist.

    Add to Cart

    Find Distributors   -  Local Sales Reps
    For Direct OEM/Distributor Pricing, Contact Us At: [email protected]

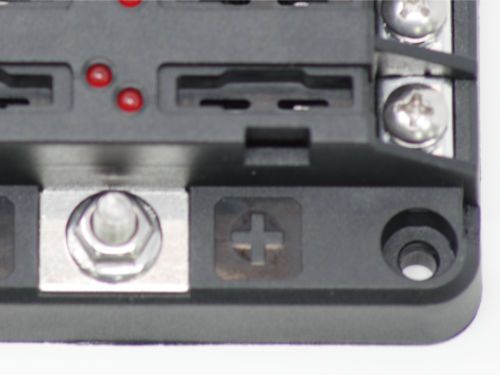

    led fuse diagnostics

    Blown fuse LED indication for each output circuit provides clear indication of faulty circuits and eases trouble-shooting issues remotely.

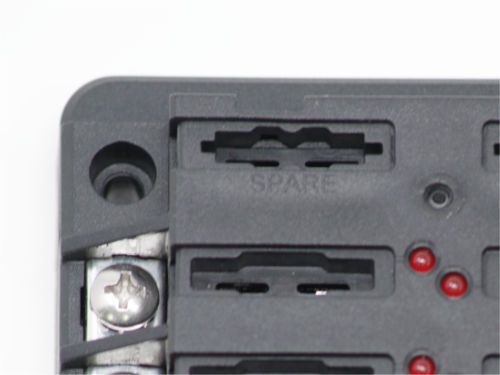

    spare fuse locations

    Two locations for spare fuses or test resistors for reducing siren volumes during evaluation.

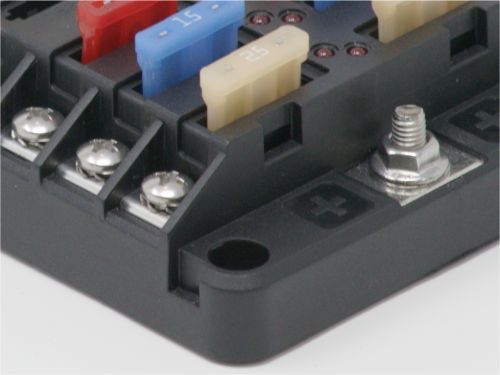

    stainless steel self-locking hardware

    100% Non-ferrous corrosion resistant materials. All attachment screws and nuts include self-locking mechanisms.

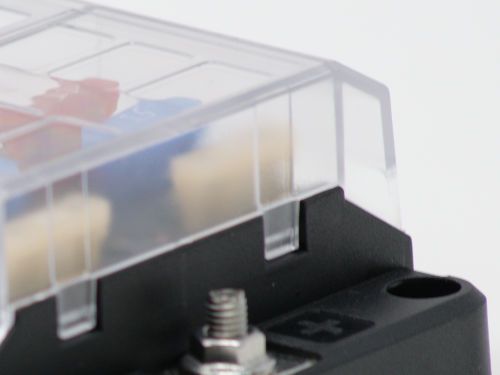

    cover / label recesses

    Protective cover for fuses and output terminals includes label recesses. Standard and custom label sets also available.

    PRIMARY specifications

    MAximum Current - entire block

    100 Amps DC

    maximum current - per circuit

    30 Amps DC

    operating voltage

    12 or 24 V Systems,  0 to 36 Vdc

    maximum output wire size

    #10 AWG


    compatible fuse types

    ATO / ATC / ATF

    maximum fuse value

    40 Amps DC

    output terminal connection

    Ring Terminals / M4 (#8)

    number of fuse positions

    Six (6)

    Application Example - 12 Position RT Fuse Block, RT Ground Block, and TDR Relay

    A well installed power distribution and clean ground return solution. Fused vehicle power is connected to the TDR Time Delay Relay (upper right), then distributed to the 12 Position RT Fuse Block (left). The RT Ground Block (lower right) was separate from the Fuse Block where it was originally tied together, and re-located to a more convenient locations for effective wire harness routing. Also shown, optional cover labels from emergency vehicle label sheet set.
