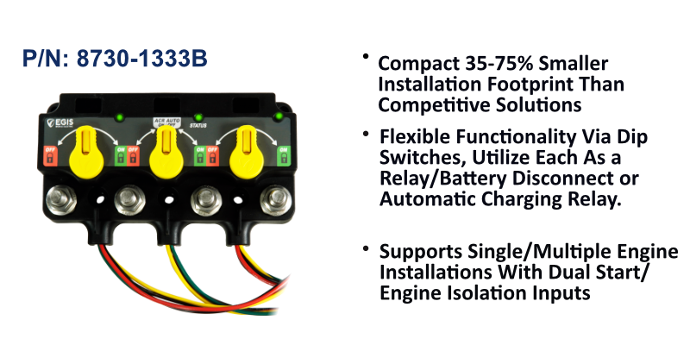

XD Triple - Flex 2 - (ACR)-(ACR)-(ACR) w/Knobs - Tinned Wires

    357.40 357.40000000000003 USD 357.40


    This combination does not exist.

     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com


    Applications / Problems This Solves

    Replaces Three Individual High Amp Relays with One Compact Module reducing space significantly, eliminating cost of external link cable connections, eliminating risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how operate manual controls and what state the manual controls have forced the relay into..

    Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.

    Multiple Automatic Charging Relay (ACR) Into One Device: For 3-4 Battery Systems that require 2 or 3 ACRs, a single three relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reducing unnecessary interconnection cables..

    Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.

    Feature Summary

    Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

    Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

    Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

    35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

    Plug & Play Compatible with Legacy Competitor Products:   Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

    90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

    Focal Features


     Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED


     Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.


    Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.


    Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.


    Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.


    Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.


    XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.


    High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

    XD Series Related Options

    Manual Override

    Intuitive to use front facing yellow manual override knob makes manual control easy but if it's not needed, ask about our lever-free models!


    Flexible install wiring options with either tinned wires or optional Deutsch DTM compatible plug that provides optimal sealed protection.

    Link Bars

    Save install space by linking XD Relays together for even more capability with our optional 8790 and 8791 Links Bars.


    Available in single/dual/triple circuit configurations with a wide variety of options: manual override, relay functions, ACR, or remote battery disconnect.
