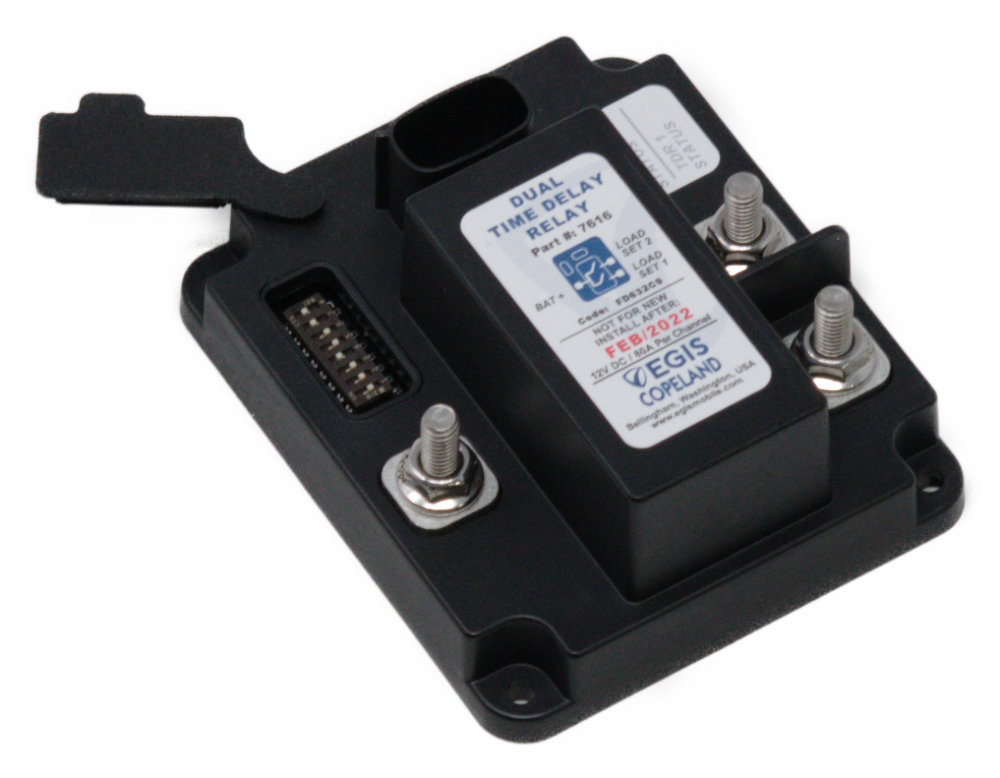

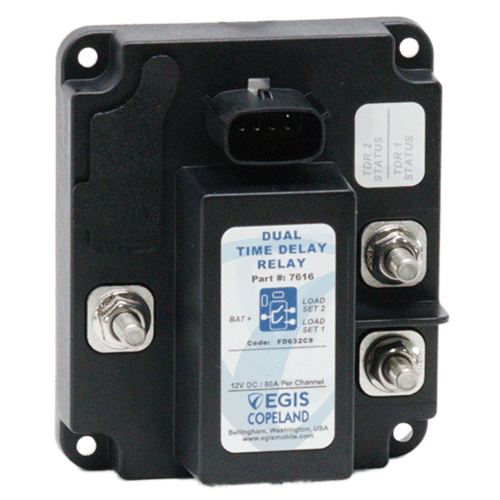

TOP SIDE DIP SWITCHES
Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
STAINLESS STEEL SELF-LOCKING HARDWARE
100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
INTEGRAL I/O CONNECTOR
Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
STANDARD AND OPTIONAL HARNESSES
Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
EASY INTEGRATION WITH CT FUSE BLOCKS
Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
EASY INTEGRATION WITH RT FUSE BLOCKS
Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
LED DIAGNOSTICS
Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
PRIMARY SPECIFICATIONS
Maximum current -
Continuous: 80 Amps DC per Output (160 A Total)
Intermittent: 120 Amps DC (5 Minutes) per Output
Off State Current Draw
1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)
Operating Specifications
Voltage: 12 Vdc Nominal (8 - 18 Vdc)
Temperature: -40 to 85 Deg C
Product Warranty
4 Years from date of manufacturer
Time Delay Options
5 Sec through 4 hours via Dip Switches
Environment Protection Standards
Waterproof to IP66 . IP6K9K
Ignition Protected to ISO 8846
Optional Features
Input stud voltage sense trigger for relay OFF
Under-voltage and over-voltage load protection
Application Example
Entire Vehicle Switching and Circuit Protection
Combining a high-amp TH Series Time Delay Relay (TDR) with a 5015 Fuse Block attached to the TDR input stud (left) provides 24 hour / keep-alive circuits; while the second 5015 Fuse Block (right) attaches to the output stud of the TDR providing switched circuits for the installation. The TDR can operate both as a remotely controlled switch and optionally in an autonomous mode after a prescribed time from a trigger event or due to a low input voltage situation. Fuse blocks shown without included covers.
Installation Example
12 Position RT Fuse Block, RT Ground Block, and TH Series Time Delay Relay (TDR)
A well installed power distribution and clean ground return solution. Fused vehicle power is connected to the TDR Time Delay Relay (upper right), then distributed to the 12 Position RT Fuse Block (left). The RT Ground Block (lower right) was separate from the Fuse Block where it was originally tied together, and re-located to a more convenient locations for effective wire harness routing. Also shown, optional cover labels from emergency vehicle label sheet set.
