DESCRIPTION

Applications / Problems This Solves

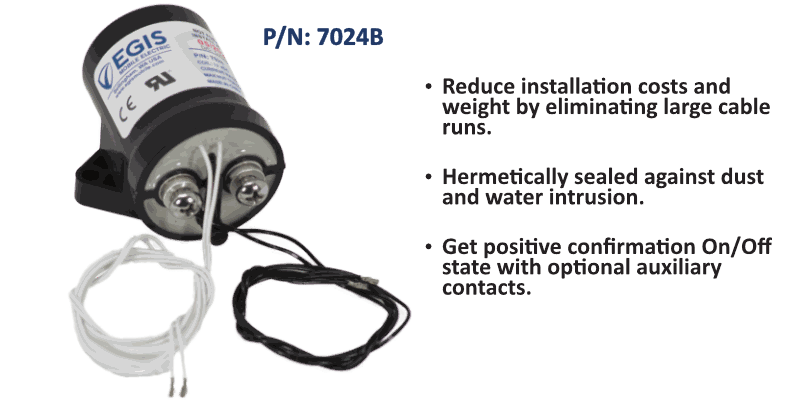

Reduce Installation Costs and Weight by eliminating large cable runs to manual switches through robust remote switching of high ampere engine and auxiliary loads

Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust and moisture.

High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.

Get Positive Confirmation of Relay On/Off State with optional auxiliary contacts that support remote status indication.

Feature Summary

Ignition Protected safe for installation in closed compartments with potential explosive gases

High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V

High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)

Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.

4 Year Industry Leading Warranty

PRIMARY SPECS

CONTINUOUS
CURRENT (AMPS)
100

OPERATION CONTROL VOLTAGE
8-16 Vdc

INGRESS PROTECTION

IP67 / IP69K

IGNITION PROTECTION

ISO-8846 / UL 1500

MIN OPERATE TEMP (DEG C)
-40

MAX OPERATE TEMP (DEG C)
85

DOWNLOADS

REFERENCE INFO

Sales Sheet, Specification & Installation Information

STEP File

INSTALLATION

Sales Sheet, Specification & Installation Information

ARTICLES

Check back here for product related articles

MARKETING MATERIALS

Sales Sheet, Specification & Installation Information

DIAGNOSTICS

See FAQ section below for further assistance

FOCAL FEATURES

SEALED ENCLOSURE

Sealed against dust and moisture penetration. High temp rated for all installation locations.

18-8 STAINLESS STEEL SELF LOCKING HARDWARE

Resists corrosion and ensure long term connection reliability with premium hardware.

EASY MOUNTING

Reinforced mounting holes provide secure installation and easy attachment for the installer.

REMOTE STATUS SUPPORT

Optional auxiliary contacts that support remote status indication.
