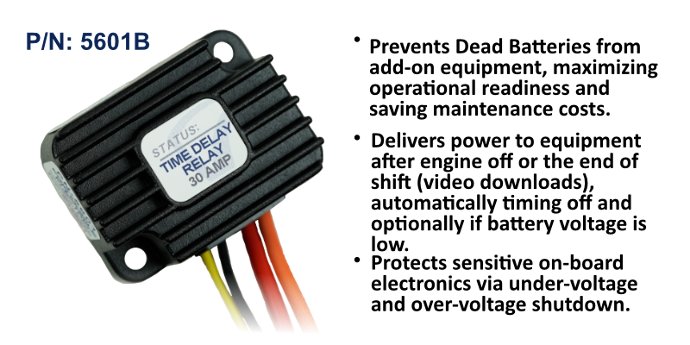

PT2 - TDR 30 A / 12 V, Bulk

    94.80 94.8 USD 94.80

    94.80

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Prevents Dead Batteries from add-on equipment, maximizing operational readiness and saving maintenance costs.

    Delivers power to equipment after engine off or the end of shift (video downloads), automatically timing off and optionally if battery voltage is low.

    Protects sensitive on-board electronics via under-voltage and over-voltage shutdown.

    Feature Summary

    Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).

    Simple & Robust Installation:   Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection.

    Adjustable OFF Time Delay: 15 minutes to 8 hours + 5 sec test mode

    Diagnostic Feedback: via on-board multi-color LEDs.

     Features

    Local LED Indicator

    Provides diagnostic feedback for status of output and pending OFF event for time, temperature, or voltage reasons.

    Sealed Enclosure

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    Programmable Time Delay

    Easy to set dip switch allow user adjustability from 15 minutes to 8hrs, along with convenient 5 sec test feature.

    Self-Protected

    Integrated fusing for short circuit and over-current, as well as integral over-temperature shutdown protection

    Cross-Linked Wire

    Provides optimal protection against wire chaffing and installation in high temperature environments

    Harsh Environment Ready

    Constructed of high temp materials allows installation anywhere on vehicle/vessel.

    Compact Footprint

    Small size makes it great for installations where space is at a premium.

    Flying Wires

    16" Fused and 18" control wires provides installation flexibility allowing for install in hard-to-reach areas.
