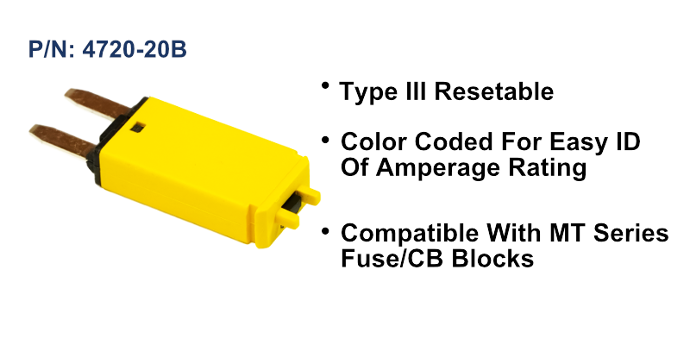

Description
Applications / Problems This Solves
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Ignition Protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Compatible With MT Series Sealed Fuse/Circuit Breaker Blocks.
Feature Summary
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
28 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
SAE J553 Interrupt Current Rating: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
20
MAX VOLTAGE
(VDC)
28
CYCLING
ENDURANCE
100+
INTERRUPT CURRENT @ 32 VDC (AMPS)
2,000
Circuit Breaker Type
ATM / MINI
Operating Temperature Range
-40C to 85C
Focal Features
Compact Design
Easy To Install In Close Proximity For Maximum Circuit Protection Density.
Color Coded
For Easy ID Of Amperage Rating
Easy Reset
Easily Reset If the Breaker With Push Button Next To Easy To Identify Amperage
